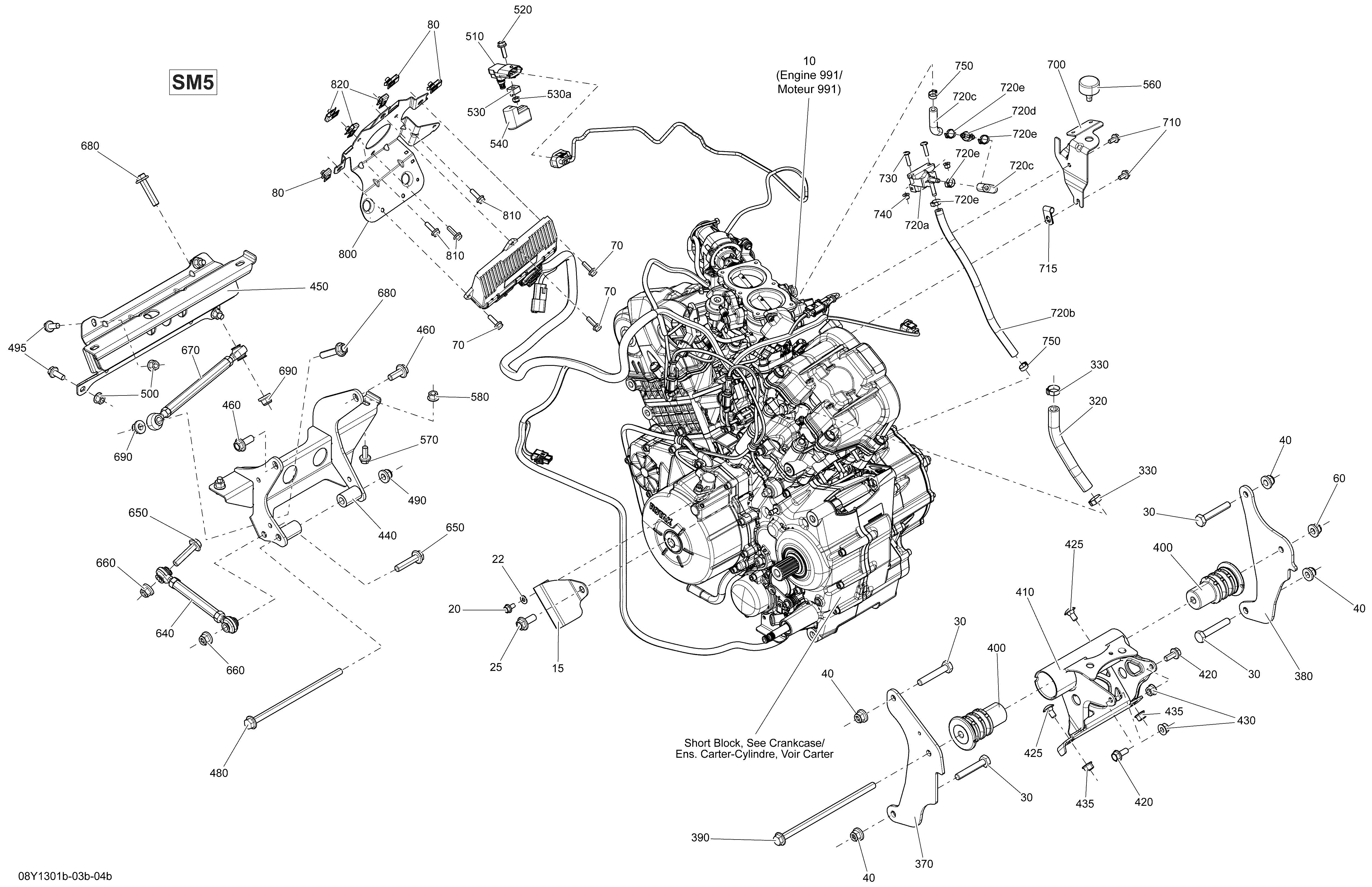

01- Engine SM5_1 для BRP Spyder RS_RSS SM5 - 2013
‹-+›
-
№АртикулНазвание
-
10707001282 Engine 991. RS-STDEngine 991. RS-STD
-
10707001282 Engine 991. RS-SEngine 991. RS-S
-
15707000845 DeflectorDeflector
-
20207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
22224061121 Flat WasherFlat Washer
-
25207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
30207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
40233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
70207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
80250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
320707000531 HoseHose
-
330293650186 Oetiker ClampOetiker Clamp
-
370707001238 LH Engine SupportLH Engine Support
-
380707001239 RH Engine SupportRH Engine Support
-
390250000286 Hex. Flanged Screw M10 X 210Hex. Flanged Screw M10 X 210
-
400707000814 Rubber MountRubber Mount
-
410707001233 ExtentionExtention
-
420207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
425207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
430233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
435233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
440707001055 Front Engine SupportFront Engine Support
-
450707001056 Front Rubber MountFront Rubber Mount
-
460207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
480250000583 Hex. Flanged Screw M10 X 200Hex. Flanged Screw M10 X 200
-
490233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
495207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
500233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
510707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
520207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
530269500725 Nut Housing Ass'y. Includes 530 to 530aNut Housing Ass'y. Includes 530 to 530a
-
530a232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
540707000586 FilterFilter
-
560708000758 Rubber StopperRubber Stopper
-
570207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
580233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
640707001220 Tie RodTie Rod
-
650207504546 Hex. Flanged Screw, M10 X 45 Scotch GripHex. Flanged Screw, M10 X 45 Scotch Grip
-
660233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
670707001219 Tie RodTie Rod
-
680207504546 Hex. Flanged Screw, M10 X 45 Scotch GripHex. Flanged Screw, M10 X 45 Scotch Grip
-
690233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
700707000756 Intake SupportIntake Support
-
710207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
715415052400 AttacheAttache
-
720a707000530 Solenoid ValveSolenoid Valve
-
720b513033565 HoseHose
-
720c513033565 HoseHose
-
720d513033469 Check ValveCheck Valve
-
720e293650042 Oetiker ClampOetiker Clamp
-
730250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
740233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
750293650042 Oetiker ClampOetiker Clamp
-
800707800469 BracketBracket
-
810207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
820250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
