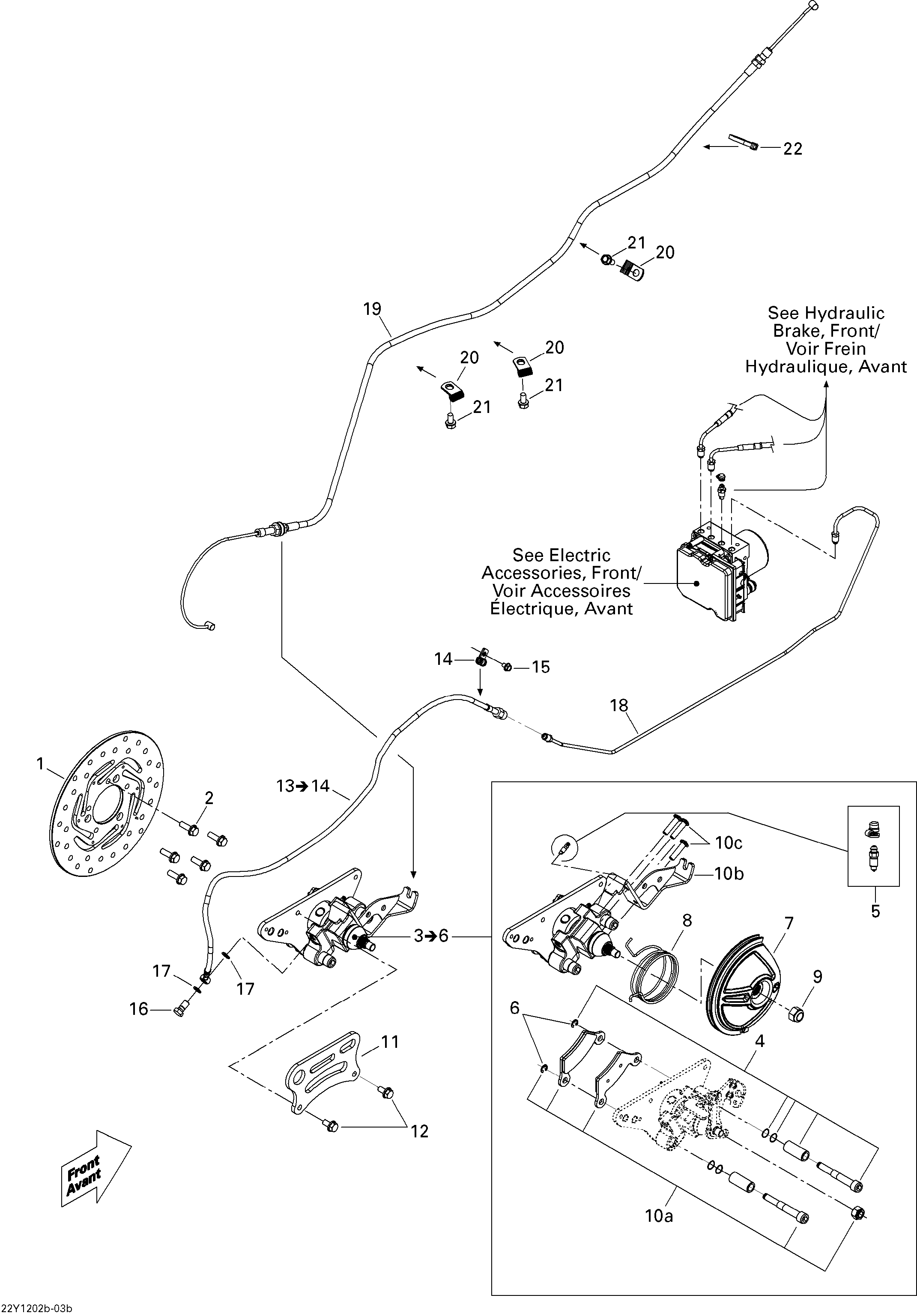

06- Hydraulic Brake, Rear для BRP Spyder RT SM5 - 2012

  • №
    Артикул
    Название
  • 1
    705600591 Rear Brake Disc
    Rear Brake Disc
  • 2
    207582544 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 3
    705600921 Rear Caliper. Includes 3 to 6
    Rear Caliper. Includes 3 to 6
  • 4
    219800032 Bushing Kit
    Bushing Kit
  • 5
    219800045 Bleed Screw And Spring Kit
    Bleed Screw And Spring Kit
  • 6
    219800050 Retaining Ring
    Retaining Ring
  • 7
    705600772 Rear Pulley Cable
    Rear Pulley Cable
  • 8
    705601065 Spring
    Spring
  • 9
    250100128 Nut 7/16''
    Nut 7/16''
  • 10a
    219800165 Rear Pad Kit
    Rear Pad Kit
  • 10b
    705600974 Cable Support
    Cable Support
  • 10c
    250000413 Thread Forming Screw 1/4-20 X 1''
    Thread Forming Screw 1/4-20 X 1''
  • 11
    705600430 Rear Caliper Support
    Rear Caliper Support
  • 12
    207581644 Hex. Flanged Screw M8 X 16, Scotch Grip
    Hex. Flanged Screw M8 X 16, Scotch Grip
  • 13
    705600813 Rear Brake Line. Includes 13 to 14
    Rear Brake Line. Includes 13 to 14
  • 14
    705600459 Clamp
    Clamp
  • 15
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 16
    414920500 Banjo Bolt
    Banjo Bolt
  • 17
    414920600 Washer
    Washer
  • 18
    705601076 Rear Rigid Tube
    Rear Rigid Tube
  • 19
    707000927 Parking Brake Cable
    Parking Brake Cable
  • 20
    415052400 Attache
    Attache
  • 21
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 22
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
