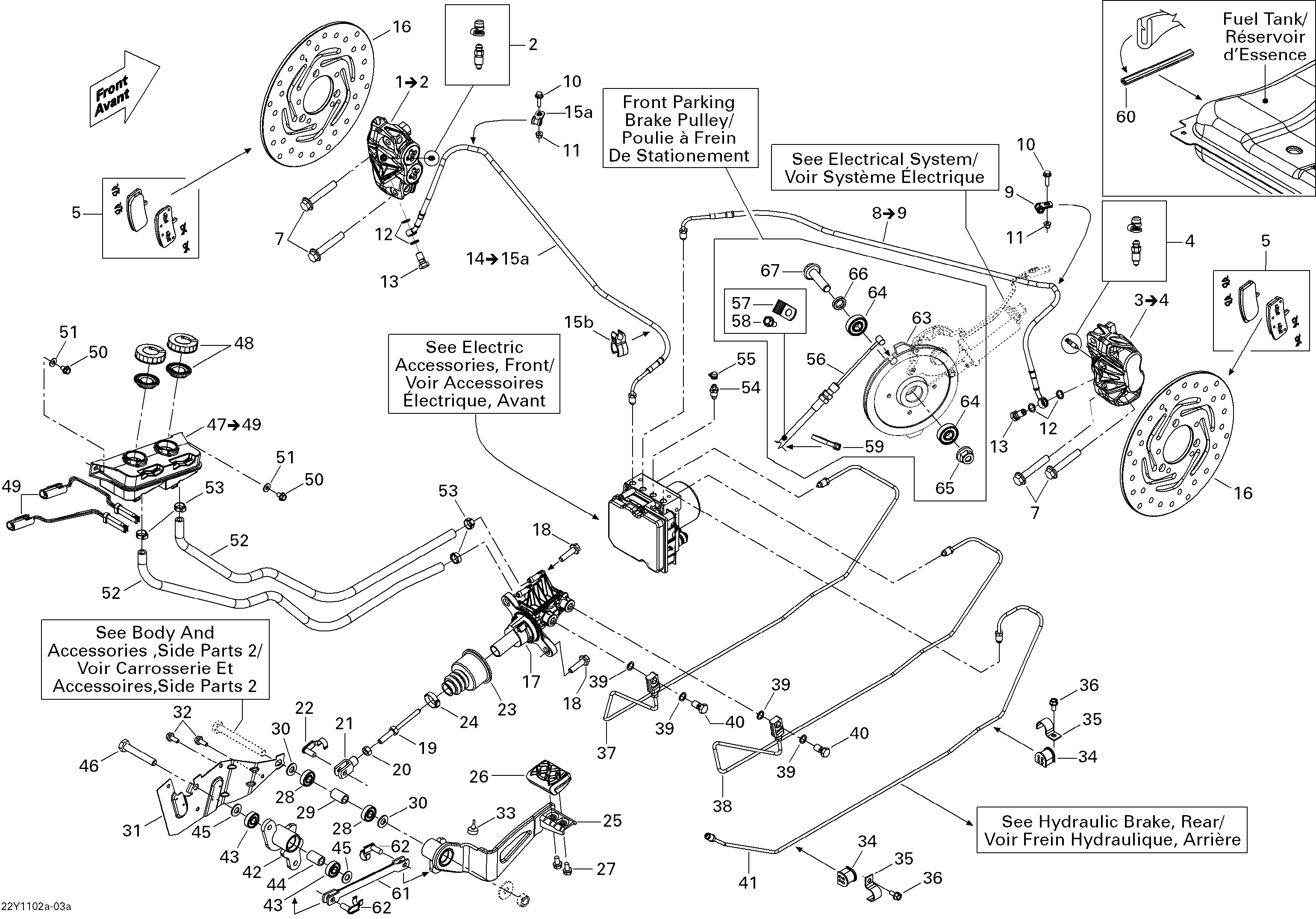

06- Hydraulic Brake, Front для BRP Spyder RT, Roadster SM5 - 2011
-
№АртикулНазвание
-
1219800125 LH Front Caliper Ass'y. Includes 1 to 2LH Front Caliper Ass'y. Includes 1 to 2
-
2219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
3219800126 RH Front Caliper Ass'y. Includes 3 to 4RH Front Caliper Ass'y. Includes 3 to 4
-
4219800045 Bleed Screw And Spring KitBleed Screw And Spring Kit
-
5219800164 Pad Kit (4 Pads)Pad Kit (4 Pads)
-
7207506034 Hex. Flanged Screw M10 X 60, Scotch GripHex. Flanged Screw M10 X 60, Scotch Grip
-
8705600852 RH Front Flexible Brake Line. Includes 8 to 9RH Front Flexible Brake Line. Includes 8 to 9
-
9705600459 ClampClamp
-
10207652034 Hex. Flanged Screw M5 X 20Hex. Flanged Screw M5 X 20
-
11233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
12414920600 WasherWasher
-
13414920500 Banjo BoltBanjo Bolt
-
14705600853 LH Front Flexible Brake Line. Includes 14 to 15aLH Front Flexible Brake Line. Includes 14 to 15a
-
15a705600459 ClampClamp
-
15b705600854 Hose ClipHose Clip
-
16705600435 Front Brake DiscFront Brake Disc
-
17705600722 Tandem Cylinder MasterTandem Cylinder Master
-
18207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
19705600468 Piston RodPiston Rod
-
20232081414 Hex. Nut M8Hex. Nut M8
-
21705600100 YokeYoke
-
22250400007 PinPin
-
23705600716 BellowBellow
-
24509000442 Oetiker Gear ClampOetiker Gear Clamp
-
25705600920 Brake PedalBrake Pedal
-
26705004933 Rubber PadRubber Pad
-
27210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
28705600458 BearingBearing
-
29705600541 BushingBushing
-
30503183800 WasherWasher
-
31705600842 Tab LockTab Lock
-
32207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
33708000759 Rubber StopperRubber Stopper
-
34705600843 Tube SupportTube Support
-
35705600507 ClipClip
-
36210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
37705600721 Front Tandem Rigid TubeFront Tandem Rigid Tube
-
38705600742 Rear Tandem Rigid TubeRear Tandem Rigid Tube
-
39414920600 WasherWasher
-
40414920500 Banjo BoltBanjo Bolt
-
41705600834 Rear Rigid TubeRear Rigid Tube
-
42705600855 Rocker ArmRocker Arm
-
43705600458 BearingBearing
-
44705600541 BushingBushing
-
45503183800 WasherWasher
-
46207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
47705600735 Brake Fluid Reservoir Ass'y. Includes 47 to 49Brake Fluid Reservoir Ass'y. Includes 47 to 49
-
48219800058 Cap And Diaphragm KitCap And Diaphragm Kit
-
49515176508 Oil Level SensorOil Level Sensor
-
50210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
51224061121 Flat WasherFlat Washer
-
52276000084 Hose 8 mmHose 8 mm
-
53293650047 Crimp ClampCrimp Clamp
-
54705600502 Bleeder ScrewBleeder Screw
-
55705600554 Bleeder CapBleeder Cap
-
56707000927 Parking Brake CableParking Brake Cable
-
57a415052400 AttacheAttache
-
57b207662034 Hex. Flanged ScrewHex. Flanged Screw
-
58210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
59414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
60271001530 TrimTrim
-
61705600959 Connecting RodConnecting Rod
-
62250400007 PinPin
-
63705600768 Front Pulley CableFront Pulley Cable
-
64705600458 BearingBearing
-
65233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
66293900087 BushingBushing
-
67207604044 Hex. Flanged Screw M10 X 40Hex. Flanged Screw M10 X 40
