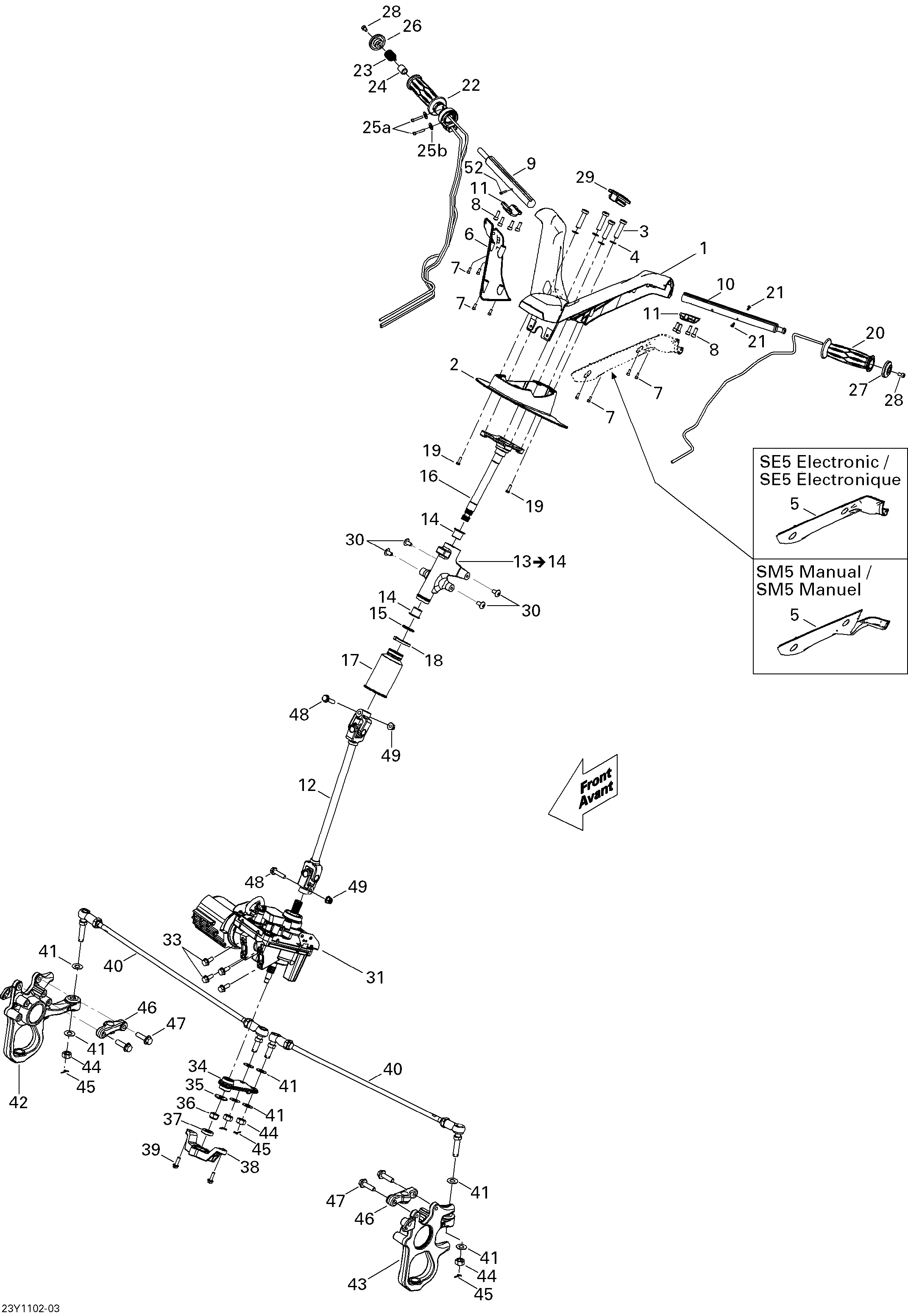

07- Steering SE5 для BRP Spyder RT, Roadster SE5 - 2011

  • №
    Артикул
    Название
  • 1
    709400907 Handlebar, Crystal Silver
    Handlebar, Crystal Silver
  • 2
    709400579 Handlebar Central Cover
    Handlebar Central Cover
  • 3
    250000456 Thin Socket Screw, Scotch Grip, M10 X 40
    Thin Socket Screw, Scotch Grip, M10 X 40
  • 4
    250200105 Stainless Flat Washer, 10 mm
    Stainless Flat Washer, 10 mm
  • 5
    709400577 LH Steering Cover. SE5
    LH Steering Cover. SE5
  • 6
    709400578 RH Steering Cover
    RH Steering Cover
  • 7
    205041094 Socket Screw, M4 X 10
    Socket Screw, M4 X 10
  • 8
    205061644 Socket Head Screw M6 X 16
    Socket Head Screw M6 X 16
  • 9
    709400884 RH Handlebar Tube
    RH Handlebar Tube
  • 10
    709400981 LH Handlebar
    LH Handlebar
  • 11
    709400631 Handlebar Clamp
    Handlebar Clamp
  • 12
    709400658 Lower Steering Column
    Lower Steering Column
  • 13
    709400808 Steering Column Support Ass'y. Includes 13 to 14
    Steering Column Support Ass'y. Includes 13 to 14
  • 15
    709000089 O-Ring
    O-Ring
  • 16
    709400774 Upper Steering Column
    Upper Steering Column
  • 17
    709400790 Bellows
    Bellows
  • 18
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 19
    420941925 Tapping Screw M5 X 16
    Tapping Screw M5 X 16
  • 20
    709400625 Heating Handle Grip
    Heating Handle Grip
  • 21
    250000453 Torx Cutting Screw, M4 X 10
    Torx Cutting Screw, M4 X 10
  • 22
    709400929 Throttle Heating Grip
    Throttle Heating Grip
  • 23
    709400773 Spring
    Spring
  • 24
    709400782 Bushing
    Bushing
  • 25a
    205042594 Socket Screw, M4 X 25
    Socket Screw, M4 X 25
  • 25b
    234040600 Flat Washer 4 mm
    Flat Washer 4 mm
  • 26
    709400765 RH Handlebar End Piece
    RH Handlebar End Piece
  • 27
    709400793 LH Handlebar End Piece
    LH Handlebar End Piece
  • 28
    205061094 Socket Screw, M6 X 10
    Socket Screw, M6 X 10
  • 29
    709400680 Cap
    Cap
  • 30
    250000198 Torx Truss Screw M8 X 16
    Torx Truss Screw M8 X 16
  • 31
    709400965 Assisted Power Steering
    Assisted Power Steering
  • 31a
    219800191 DPS Hardware Kit. Not Shown
    DPS Hardware Kit. Not Shown
  • 33
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 34
    709400922 Steering Pitman Arm
    Steering Pitman Arm
  • 35
    250200113 Flat Washer, 12 mm
    Flat Washer, 12 mm
  • 36
    250000047 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 37
    293200113 Seal Ring
    Seal Ring
  • 38
    709400455 Sensor Support
    Sensor Support
  • 39
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 40
    709400727 Tie Rod Ass'y
    Tie Rod Ass'y
  • 41
    250200086 Flat Washer
    Flat Washer
  • 42
    505071711 Knuckle RH
    Knuckle RH
  • 43
    505071709 Knuckle LH
    Knuckle LH
  • 44
    250100099 Nut M12
    Nut M12
  • 45
    250400034 Cotter Pin
    Cotter Pin
  • 46
    706200528 Upper Support
    Upper Support
  • 47
    207503534 Hex. Flange Screw, Scotch Grip
    Hex. Flange Screw, Scotch Grip
  • 48
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip
    Hex. Flanged Screw M8 X 35, Scotch Grip
  • 49
    233281416 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 52
    250000494 Socket Screw, M4 X 16 Scotch Grip
    Socket Screw, M4 X 16 Scotch Grip
