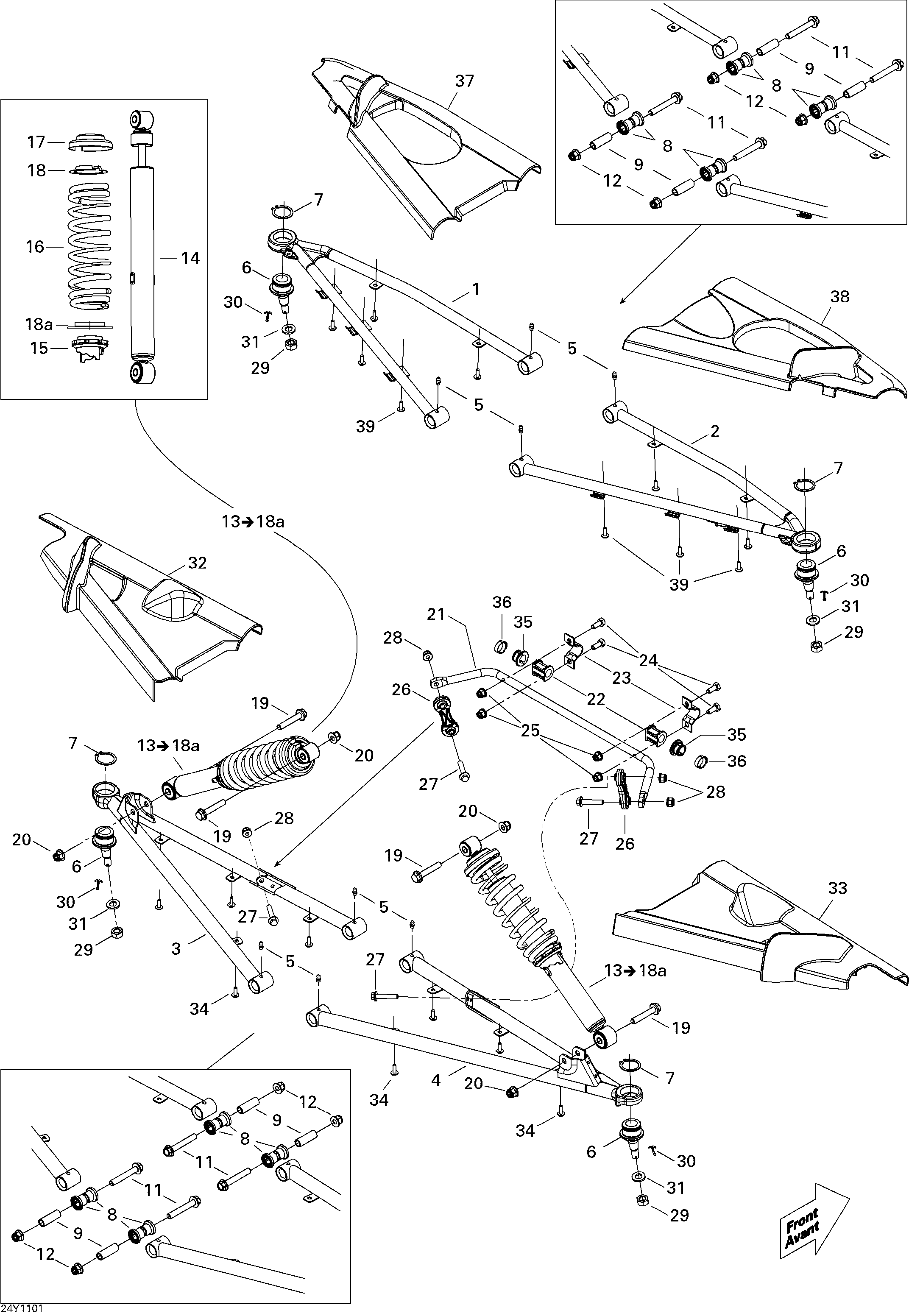

07- Suspension, Front для BRP Spyder RS Roadster SE5 - 2011
-
№АртикулНазвание
-
1706201140 LH ArmLH Arm
-
2706201141 RH ArmRH Arm
-
3505071697 LH Lower ArmLH Lower Arm
-
4505071703 RH Lower ArmRH Lower Arm
-
5408200700 Grease FittingGrease Fitting
-
6505072362 Ball JointBall Joint
-
7293370035 CirclipCirclip
-
8706200181 CushionCushion
-
9706200618 BushingBushing
-
11207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
12233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14706201150 Front ShockFront Shock
-
15706001061 Adjuster RingAdjuster Ring
-
16505071707 SpringSpring
-
17706200881 Spring StopperSpring Stopper
-
18706200785 CapCap
-
18a706001062 Ring ProtectorRing Protector
-
19207605534 Hex. Flanged ScrewHex. Flanged Screw
-
20233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
21706200772 Sway BarSway Bar
-
22505072287 Torsion BushingTorsion Bushing
-
23506095800 ClampClamp
-
24207182034 Hex. Cap Screw M8 X 20Hex. Cap Screw M8 X 20
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26706200671 Tie RodTie Rod
-
27207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
28233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29250100099 Nut M12Nut M12
-
30250400035 Cotter PinCotter Pin
-
31250200086 Flat WasherFlat Washer
-
32706200884 LH Lower DeflectorLH Lower Deflector
-
33706200885 RH Lower DeflectorRH Lower Deflector
-
34243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
35706201033 Sway Bar StopperSway Bar Stopper
-
36293650012 Oetiker ClampOetiker Clamp
-
37706200886 LH Upper Deflector. RSLH Upper Deflector. RS
-
37706201333 LH Upper Deflector, Magnesium. RS-S Magnesium-Steel Black ModelLH Upper Deflector, Magnesium. RS-S Magnesium-Steel Black Model
-
37706201335 LH Upper Deflector, Alloy Orange. RS-S Alloy Orange-Matte Black ModelLH Upper Deflector, Alloy Orange. RS-S Alloy Orange-Matte Black Model
-
38706200887 RH Upper Deflector. RSRH Upper Deflector. RS
-
38706201334 RH Upper Deflector, Magnesium. RS-S Magnesium-Steel Black ModelRH Upper Deflector, Magnesium. RS-S Magnesium-Steel Black Model
-
38706201336 RH Upper Deflector, Alloy Orange. RS-S Alloy Orange-Matte Black ModelRH Upper Deflector, Alloy Orange. RS-S Alloy Orange-Matte Black Model
-
39243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
