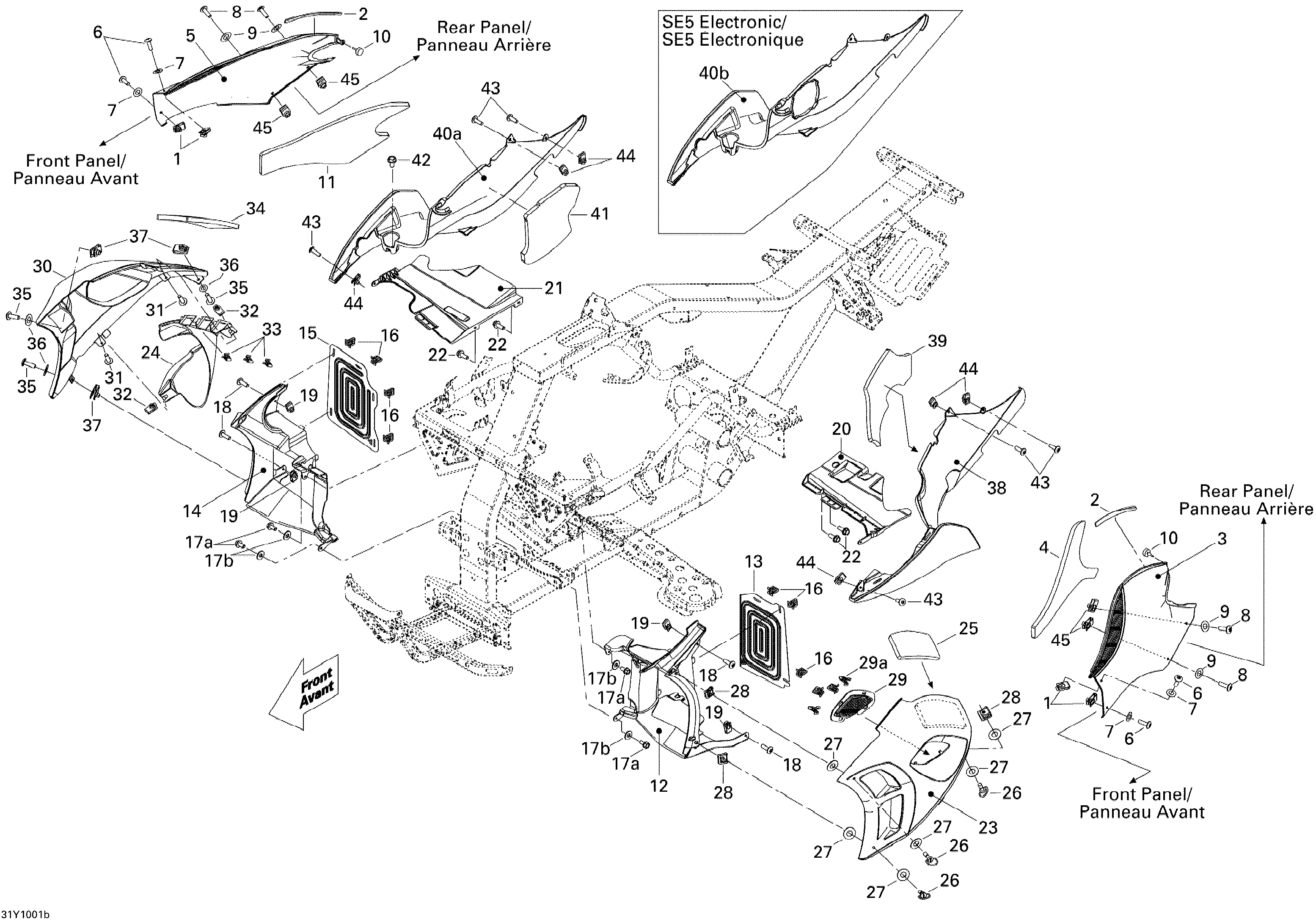

09- Body And Accessories Side SM5 для BRP Spyder RS Roadster SM5, Late Production 2010 - 2010

  • №
    Артикул
    Название
  • 1
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 2
    293250087 Gasket
    Gasket
  • 3
    705002601 LH Upper Side Panel, Black. RS
    LH Upper Side Panel, Black. RS
  • 3
    705003891 LH Upper Side Panel, Pearl White. RS-S
    LH Upper Side Panel, Pearl White. RS-S
  • 4
    518325517 LH Upper Side Panel Foam
    LH Upper Side Panel Foam
  • 5
    705002602 RH Upper Side Panel, Black. RS
    RH Upper Side Panel, Black. RS
  • 5
    705003892 RH Upper Side Panel, Pearl White. RS-S
    RH Upper Side Panel, Pearl White. RS-S
  • 6
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 7
    705003207 Plastic Washer
    Plastic Washer
  • 8
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 9
    705003207 Plastic Washer
    Plastic Washer
  • 10
    708000759 Rubber Stopper
    Rubber Stopper
  • 11
    518325518 RH Upper Side Panel Foam
    RH Upper Side Panel Foam
  • 12
    705001485 LH Radiator Hub Cap
    LH Radiator Hub Cap
  • 13
    705003906 LH Radiator Grill
    LH Radiator Grill
  • 14
    705001486 RH Radiator Hub Cap
    RH Radiator Hub Cap
  • 15
    705002518 RH Radiator Grill
    RH Radiator Grill
  • 16
    517302785 Clip
    Clip
  • 17
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 18
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 19
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 20
    705002331 LH Deflector Panel
    LH Deflector Panel
  • 21
    705002332 RH Deflector Panel
    RH Deflector Panel
  • 22
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 23
    705002565 LH Side Panel, Full Moon. Silver
    LH Side Panel, Full Moon. Silver
  • 23
    705003191 LH Side Panel, Red. Red
    LH Side Panel, Red. Red
  • 23
    705003887 LH Side Panel, Quantum Blue. Blue
    LH Side Panel, Quantum Blue. Blue
  • 23
    705003888 LH Side Panel, Pearl White. RS-S
    LH Side Panel, Pearl White. RS-S
  • 24
    705002831 Heat Deflector
    Heat Deflector
  • 25
    518324749 LH Side Panel Foam
    LH Side Panel Foam
  • 26
    705002649 Quarter Turn Screw
    Quarter Turn Screw
  • 27
    705002650 Washer
    Washer
  • 28
    705002651 Quarter Turn Nut
    Quarter Turn Nut
  • 29
    705002369 LH Lateral Grill
    LH Lateral Grill
  • 29a
    517302785 Clip
    Clip
  • 30
    705002568 RH Side Panel, Full Moon. Silver
    RH Side Panel, Full Moon. Silver
  • 30
    705003192 RH Side Panel, Red. Red
    RH Side Panel, Red. Red
  • 30
    705003889 RH Side Panel, Quantum Blue. Blue
    RH Side Panel, Quantum Blue. Blue
  • 30
    705003890 RH Side Panel, Pearl White. RS-S
    RH Side Panel, Pearl White. RS-S
  • 31
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 32
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 33
    517302785 Clip
    Clip
  • 34
    518324750 RH Side Panel Foam
    RH Side Panel Foam
  • 35
    250000303 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 36
    705003207 Plastic Washer
    Plastic Washer
  • 37
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 38
    705001612 LH Rocker Panel
    LH Rocker Panel
  • 39
    518324753 LH Rocker Panel Foam
    LH Rocker Panel Foam
  • 40a
    705001613 RH Rocker Panel. SM5
    RH Rocker Panel. SM5
  • 41
    518324754 RH Rocker Panel Foam
    RH Rocker Panel Foam
  • 42
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 43
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 44
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 45
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
