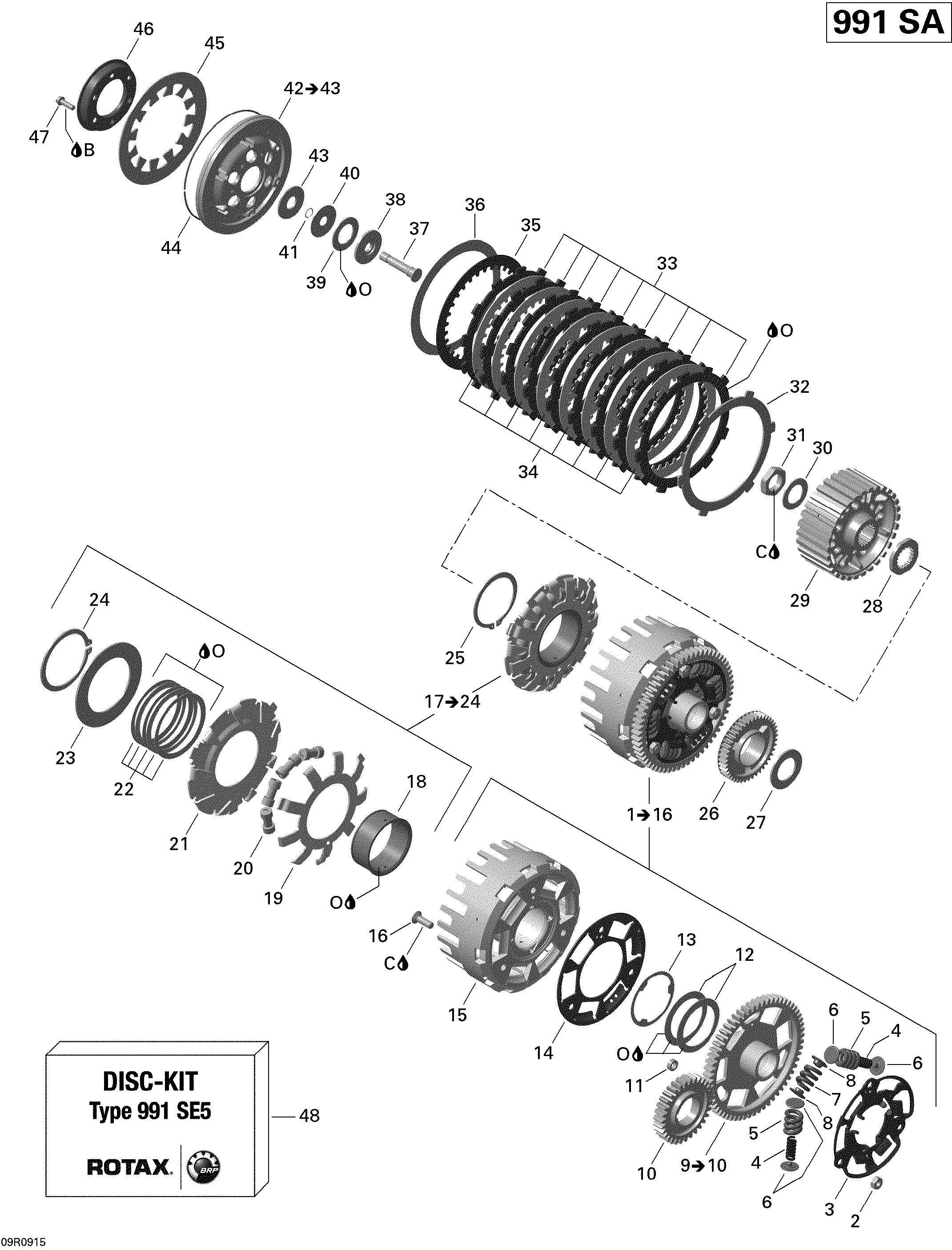

05- Clutch для BRP Spyder GS Roadster with SE5 transmission - 2009

  • №
    Артикул
    Название
  • 2
    232081414 Hex. Nut M8
    Hex. Nut M8
  • 3
    420259583 Outer Support Plate
    Outer Support Plate
  • 4
    420238140 Internal Compression Spring
    Internal Compression Spring
  • 5
    420238135 Compression Spring
    Compression Spring
  • 6
    420247972 Spring Retainer
    Spring Retainer
  • 7
    420238130 Compression Spring
    Compression Spring
  • 8
    420247976 Spring Retainer
    Spring Retainer
  • 9
    420684815 Primary Drive Gear Ass'y. Includes 9 to 10
    Primary Drive Gear Ass'y. Includes 9 to 10
  • 11
    420247614 Spacer Sleeve
    Spacer Sleeve
  • 12
    420239395 Disc Spring
    Disc Spring
  • 13
    420627915 Thrust Washer
    Thrust Washer
  • 14
    420259685 Support Plate
    Support Plate
  • 15
    420659720 Clutch Drum
    Clutch Drum
  • 16
    420941835 Flat Head Screw, M8 X 25
    Flat Head Screw, M8 X 25
  • 17
    420685543 Centrifugal Clutch Ass'y. Includes 17 to 24
    Centrifugal Clutch Ass'y. Includes 17 to 24
  • 18
    420659850 Bushing
    Bushing
  • 19
    420659821 Cam
    Cam
  • 20
    420229947 Centrifugal Weight
    Centrifugal Weight
  • 21
    420659740 Pressure Plate
    Pressure Plate
  • 22
    420238520 Disc Spring
    Disc Spring
  • 23
    420626390 Stop Plate
    Stop Plate
  • 24
    420245080 Retaining Ring
    Retaining Ring
  • 25
    420245070 Retaining Ring
    Retaining Ring
  • 26
    420634476 Oil Gear Pump, 42 Teeth
    Oil Gear Pump, 42 Teeth
  • 27
    420626540 Thrust Washer
    Thrust Washer
  • 28
    420627220 Thrust Washer
    Thrust Washer
  • 29
    420659750 Clutch Hub
    Clutch Hub
  • 30
    420245830 Spring Washer
    Spring Washer
  • 31
    420242950 Hex. Nut M24
    Hex. Nut M24
  • 32
    420659970 Plate 2.5 mm. See Item 48, Disc Kit
    Plate 2.5 mm. See Item 48, Disc Kit
  • 35
    420281535 Adjustment Plate Kit
    Adjustment Plate Kit
  • 36
    420238856 Disc Spring. See Item 48, Disc Kit
    Disc Spring. See Item 48, Disc Kit
  • 37
    420659797 Pin
    Pin
  • 38
    420659890 Thrust Washer
    Thrust Washer
  • 39
    420632700 Needle Bearing
    Needle Bearing
  • 40
    420626560 Thrust Washer
    Thrust Washer
  • 41
    420245440 Snap Ring
    Snap Ring
  • 42
    420659735 Pressure Plate Ass'y. Includes 42 to 43
    Pressure Plate Ass'y. Includes 42 to 43
  • 43
    420626570 Thrust Washer
    Thrust Washer
  • 44
    420245250 Retaining Ring
    Retaining Ring
  • 45
    420238530 Disc Spring. See Item 48, Disc Kit
    Disc Spring. See Item 48, Disc Kit
  • 46
    420259860 Plate Inner
    Plate Inner
  • 47
    420440207 Flanged Torx Screw M6 X 20
    Flanged Torx Screw M6 X 20
  • 48
    420281935 Disc Kit, Type 991 SE5
    Disc Kit, Type 991 SE5
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • C
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
