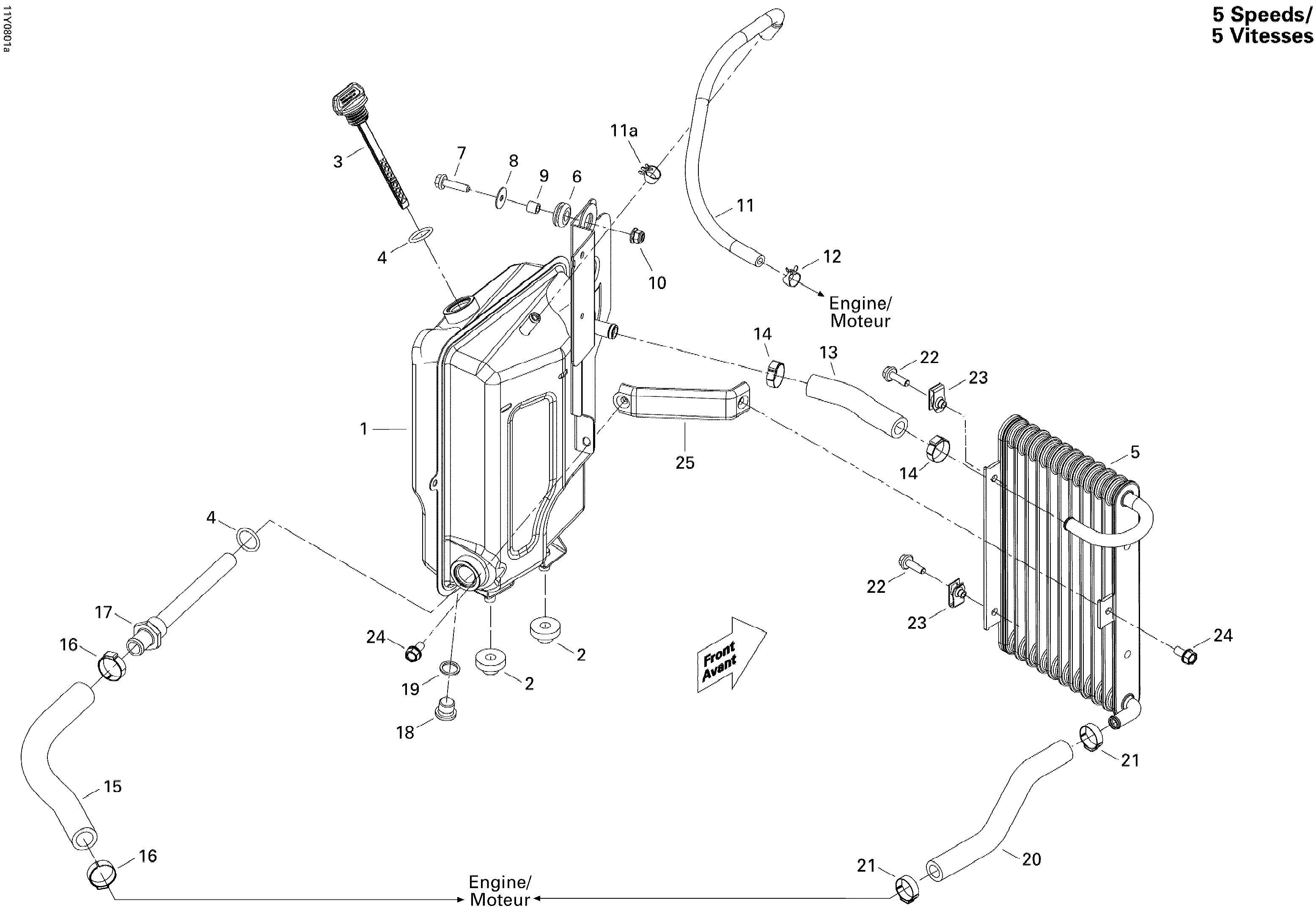

02- Oil System 991 FS для BRP Spyder GS 990 5-Speed - 2008
-
№АртикулНазвание
-
1519000210 Oil TankOil Tank
-
2570135100 GrommetGrommet
-
3519000155 Oil CapOil Cap
-
4705500271 O-RingO-Ring
-
5519000123 Oil RadiatorOil Radiator
-
6293720053 GrommetGrommet
-
7207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
8224060201 Flat WasherFlat Washer
-
9293900045 BushingBushing
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11519000208 Formed HoseFormed Hose
-
11a414655700 Spring ClampSpring Clamp
-
12414415200 Universal Spring ClampUniversal Spring Clamp
-
13519000199 12,7 mm Hose12,7 mm Hose
-
14293650186 Oetiker ClampOetiker Clamp
-
15519000200 15,9 mm Hose15,9 mm Hose
-
16509000552 Gear ClampGear Clamp
-
17519000162 StrainerStrainer
-
18705500504 Fill Level PlugFill Level Plug
-
19705500506 Copper WasherCopper Washer
-
20519000199 12,7 mm Hose12,7 mm Hose
-
21293650186 Oetiker ClampOetiker Clamp
-
22207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
23250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
24210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
25519000175 Radiator SupportRadiator Support
