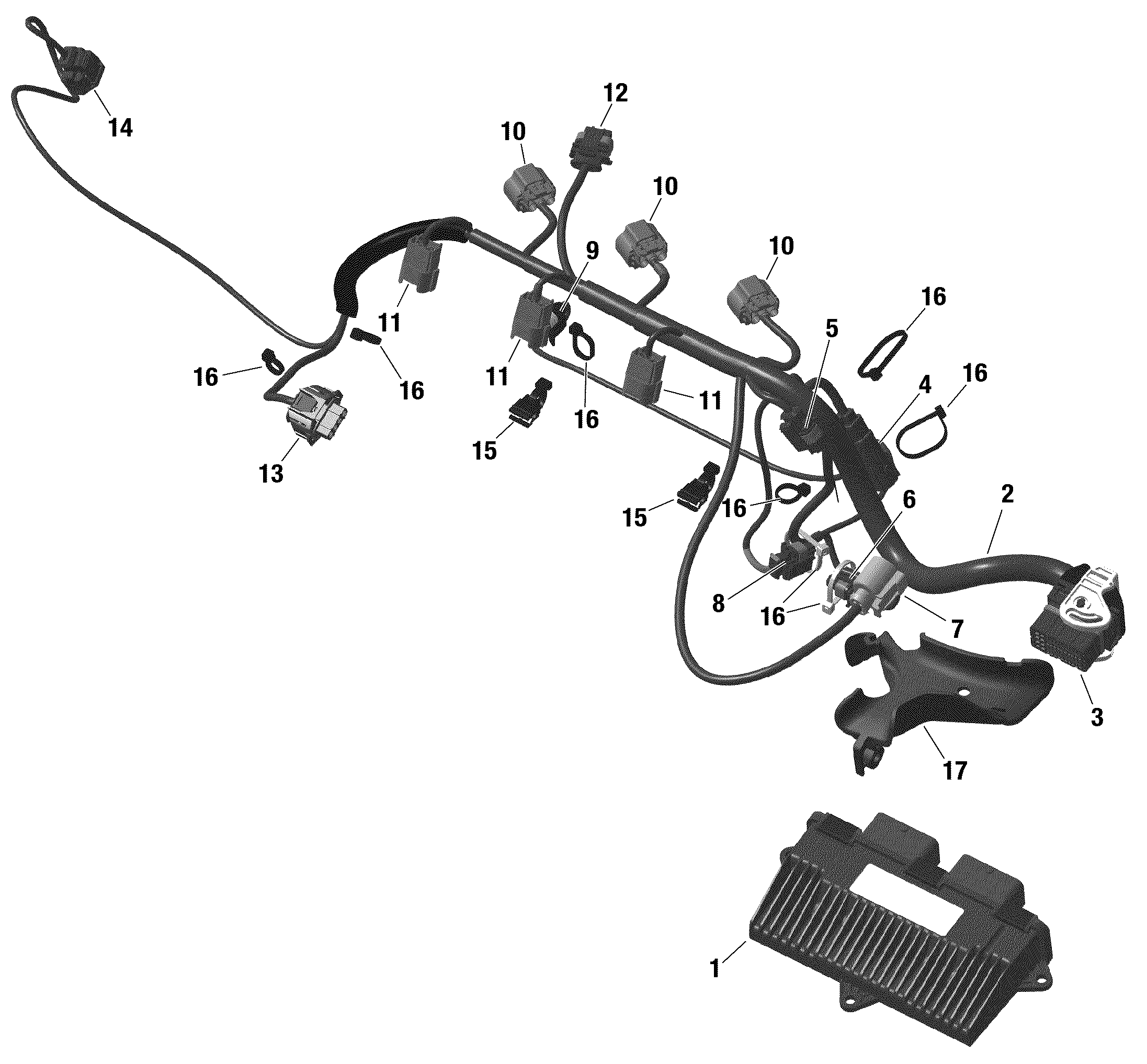

10- Engine Harness And Electronic Module - 903 - Spark HO для BRP 003 - Spark TRIXX - 2019
‹-+›
-
№АртикулНазвание
-
1420464392 Electronic Box. With IBRElectronic Box. With IBR
-
1420464390 Electronic Box. Without IBRElectronic Box. Without IBR
-
2>14420264423 Engine HarnessEngine Harness
-
5278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
6278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
15420951650 Cable ClampCable Clamp
-
16420866714 Tie RapTie Rap
-
17278003424 Harness BracketHarness Bracket
