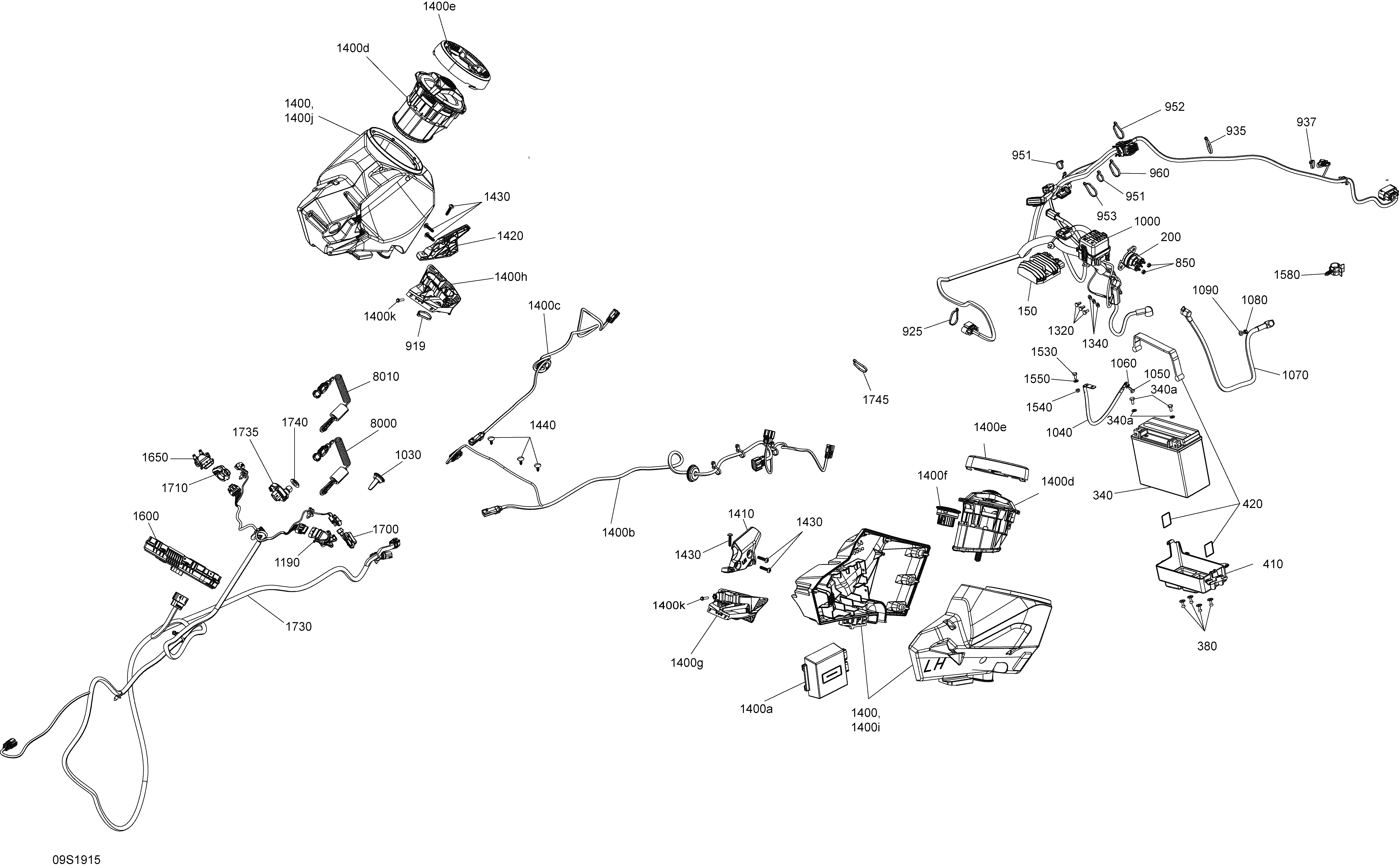

10- Electrical System для BRP 002 - RXT 300 - 2019

  • №
    Артикул
    Название
  • 150
    710001103 Voltage Regulator
    Voltage Regulator
  • 200
    278003012 Starter Relay
    Starter Relay
  • 340>340a
    410301203 Battery Ass'y, 18 Amperes. Includes 340 TO 340a
    Battery Ass'y, 18 Amperes. Includes 340 TO 340a
  • 340a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 380
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 410
    278003473 Battery Support
    Battery Support
  • 420
    293850095 Fuel Tank Strap
    Fuel Tank Strap
  • 850
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 919
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 925
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 935
    293750047 Tie Rap, 533 mm
    Tie Rap, 533 mm
  • 937
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 951
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 952
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 953
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 960
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 1000
    278003707 Wiring Harness Main. Package XRS
    Wiring Harness Main. Package XRS
  • 1000
    278003707 Wiring Harness Main. Package X
    Wiring Harness Main. Package X
  • 1030
    269502324 USB Plug
    USB Plug
  • 1040
    278003451 Battery Cable Ground
    Battery Cable Ground
  • 1050
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 1060
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 1070
    278003369 Cable-Starter
    Cable-Starter
  • 1080
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 1090
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 1190
    278002284 LH Throttle Sensor
    LH Throttle Sensor
  • 1320
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 1340
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 1400a
    278003464 Amplifier. Package Audio
    Amplifier. Package Audio
  • 1400b
    278003497 Harness. Package Audio
    Harness. Package Audio
  • 1400c
    278003462 Speaker Harness. Package Audio
    Speaker Harness. Package Audio
  • 1400d
    278003463 Speaker. Package Audio
    Speaker. Package Audio
  • 1400e
    278003466 Speaker Grille. Package Audio
    Speaker Grille. Package Audio
  • 1400f
    278003465 Remote Control Radio Bluethooth. Package Audio
    Remote Control Radio Bluethooth. Package Audio
  • 1400g
    278003616 Grille Protective LH B-160. Package Audio
    Grille Protective LH B-160. Package Audio
  • 1400h
    278003617 Grille Protective RH B-160. Package Audio
    Grille Protective RH B-160. Package Audio
  • 1400i
    278003735 Enclosure Speaker LH Ass'y. Package Audio
    Enclosure Speaker LH Ass'y. Package Audio
  • 1400j
    278003736 Enclosure Speaker RH Ass'y. Package Audio
    Enclosure Speaker RH Ass'y. Package Audio
  • 1400k
    211000023 Hex. Screw 10-14 X 7/8”. Package Audio
    Hex. Screw 10-14 X 7/8”. Package Audio
  • 1410
    278003489 LH Bracket. Package Audio
    LH Bracket. Package Audio
  • 1420
    278003518 RH Bracket. Package Audio
    RH Bracket. Package Audio
  • 1430
    250001007 Screw Torx M6.81 X 30. Package Audio
    Screw Torx M6.81 X 30. Package Audio
  • 1440
    293730011 Black Dart
    Black Dart
  • 1440
    293730011 Black Dart. Package Audio
    Black Dart. Package Audio
  • 1530
    207361260 Hex. Screw M6 X 12, Scotch Grip
    Hex. Screw M6 X 12, Scotch Grip
  • 1540
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 1550
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 1580
    278003564 Retainer
    Retainer
  • 1600
    278003432 Info Gauge Center
    Info Gauge Center
  • 1650
    278002283 RH Throttle Sensor
    RH Throttle Sensor
  • 1700
    278003726 Switch Keypad LH
    Switch Keypad LH
  • 1710
    278003474 Switch Keypad RH
    Switch Keypad RH
  • 1730
    278003712 Wiring Harness Handlebar
    Wiring Harness Handlebar
  • 1735
    515178225 DESS Switch, RFID
    DESS Switch, RFID
  • 1740
    278002963 Safety Nut (DESS Switch)
    Safety Nut (DESS Switch)
  • 1745
    414115200 Tie-Rap 180 mm. Except International
    Tie-Rap 180 mm. Except International
  • 8000
    278003401 Safety Lanyard Ass'y, Learning / RFID
    Safety Lanyard Ass'y, Learning / RFID
  • 8010
    278003400 Safety Lanyard Ass'y, RFID
    Safety Lanyard Ass'y, RFID
