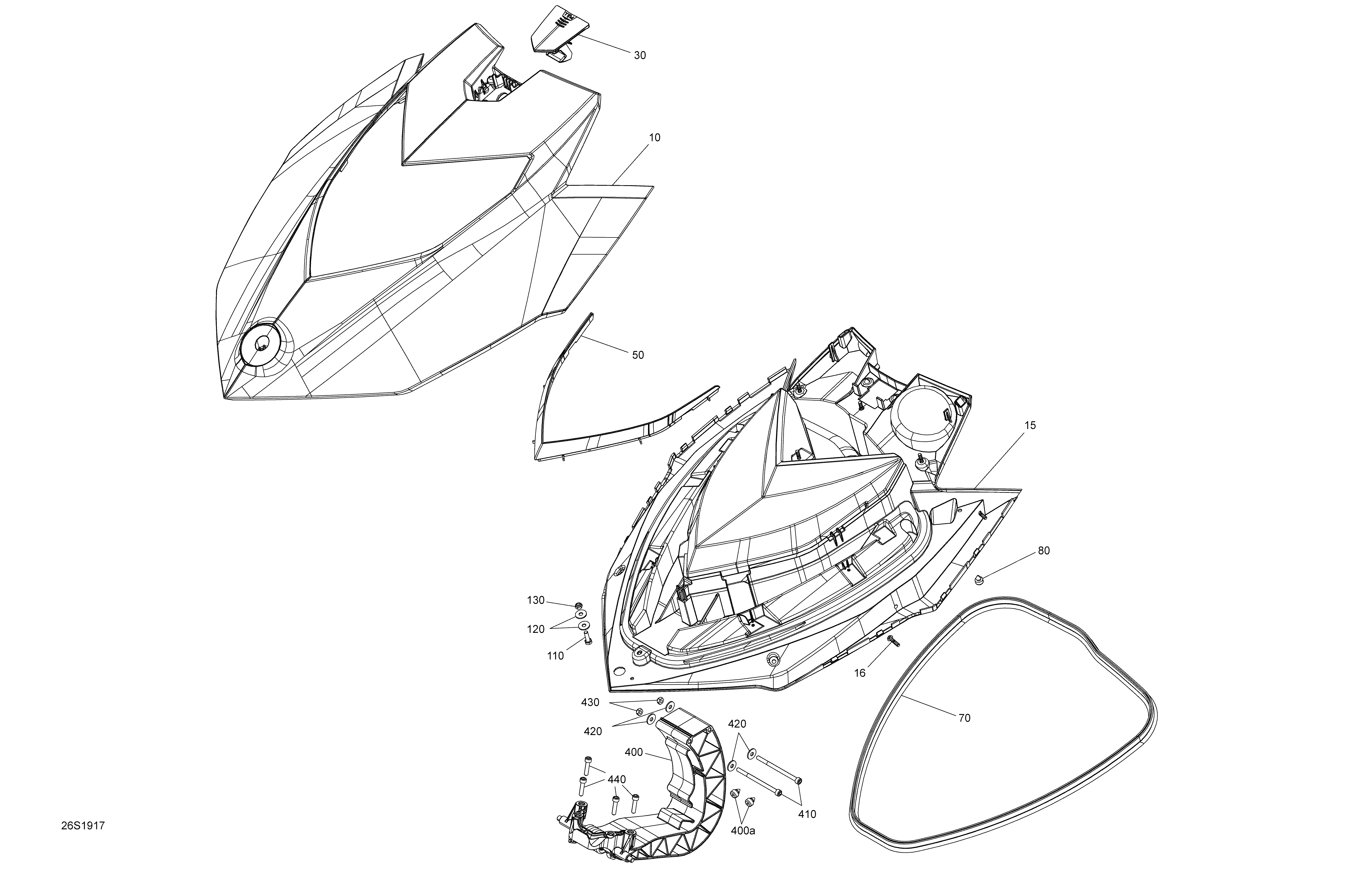

09- Front Cover для BRP 003 - GTI 130 Rental - 2019

  • №
    Артикул
    Название
  • 10
    269502064 Manta Green Storage Cover
    Manta Green Storage Cover
  • 15
    269502196 Storage Cover, Deep Black
    Storage Cover, Deep Black
  • 16
    241152060 Hex. Flanged Screw K50 X 20
    Hex. Flanged Screw K50 X 20
  • 30
    269700142 Latch Lever
    Latch Lever
  • 50
    269502067 Manta Green Front Moulding
    Manta Green Front Moulding
  • 70
    293250047 Neoprene Seal ( 3Meter pack ). Cut to length if needed
    Neoprene Seal ( 3Meter pack ). Cut to length if needed
  • 80
    293830005 Rubber Bumper
    Rubber Bumper
  • 110
    207162060 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 120
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 130
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 400>400a
    269501995 Hinge Ass'y. Includes 400 TO 400a
    Hinge Ass'y. Includes 400 TO 400a
  • 400a
    293830005 Rubber Bumper
    Rubber Bumper
  • 410
    205069060 Socket Head Screw M6 X 90
    Socket Head Screw M6 X 90
  • 420
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 430
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 440
    205062560 Socket Head Screw M6 X 25
    Socket Head Screw M6 X 25
