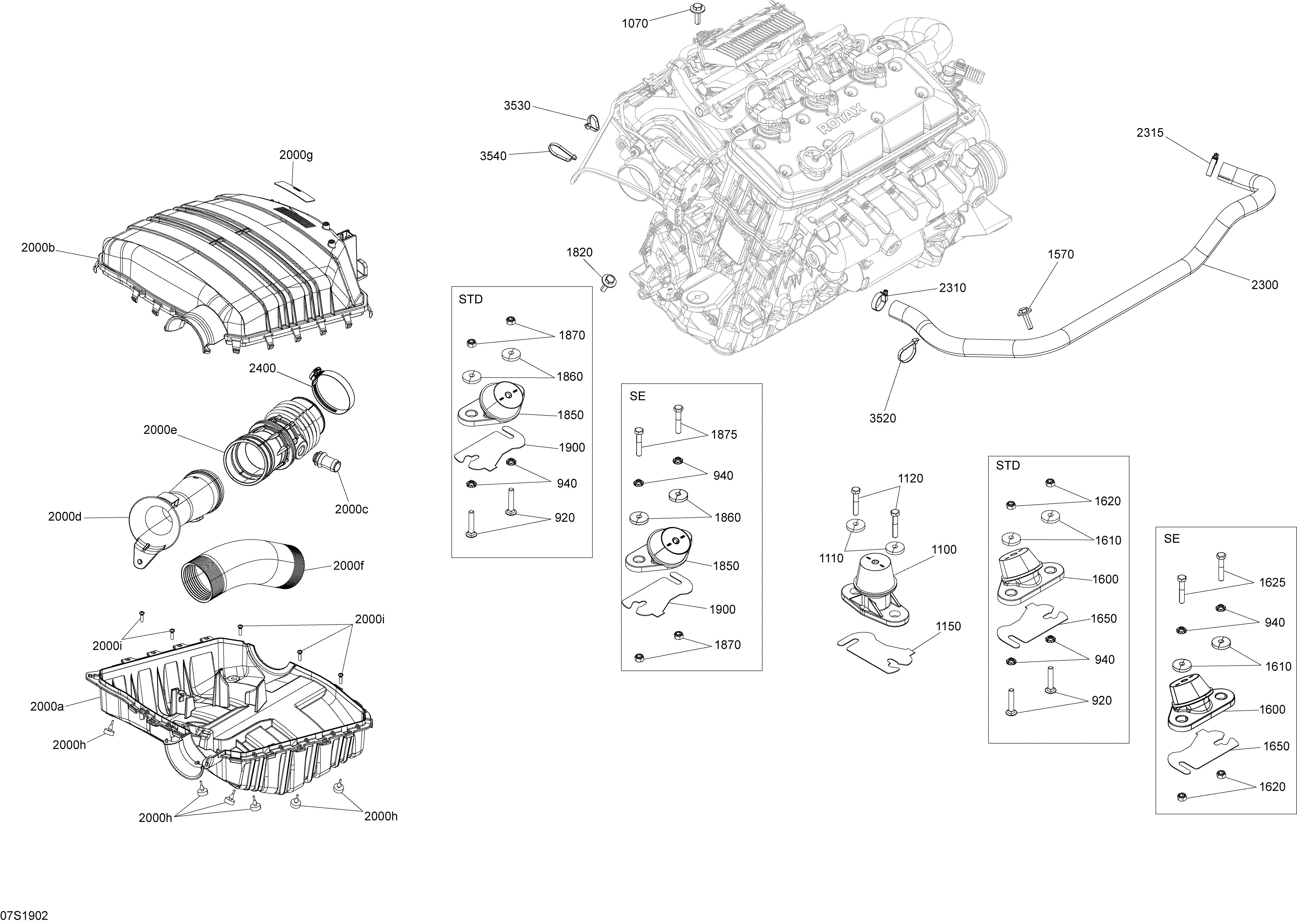

01- Engine для BRP 002 - GTI 130 - 2019
-
№АртикулНазвание
-
920207784560 Carriage Bolt M8 X 45. Package STDCarriage Bolt M8 X 45. Package STD
-
940270001008 Push Nut. Package STDPush Nut. Package STD
-
1070250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1150270000762 Shim 1.3 mm. Package STDShim 1.3 mm. Package STD
-
1150270000762 Shim 1.3 mm. Package SEShim 1.3 mm. Package SE
-
1570250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1600270001011 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620232581200 Hex. Elastic Nut M8, Brass. Package STDHex. Elastic Nut M8, Brass. Package STD
-
1625250000782 Hexagonal Head Cap Screw M8 X 45. Package SEHexagonal Head Cap Screw M8 X 45. Package SE
-
1650270000762 Shim 1.3 mm. Package STDShim 1.3 mm. Package STD
-
1650270000762 Shim 1.3 mm. Package SEShim 1.3 mm. Package SE
-
1820250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1850270001011 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870232581200 Hex. Elastic Nut M8, Brass. Package STDHex. Elastic Nut M8, Brass. Package STD
-
1875250000782 Hexagonal Head Cap Screw M8 X 45. Package SEHexagonal Head Cap Screw M8 X 45. Package SE
-
1900270000762 Shim 1.3 mm. Package STDShim 1.3 mm. Package STD
-
1900270000762 Shim 1.3 mm. Package SEShim 1.3 mm. Package SE
-
2000a273000354 Airbox BaseAirbox Base
-
2000b273000371 Airbox CoverAirbox Cover
-
2000c273000234 BreatherBreather
-
2000d273000358 Intake HoseIntake Hose
-
2000e273000292 Hose ConnectorHose Connector
-
2000f273000290 Air Silencer HoseAir Silencer Hose
-
2000g219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000h708000759 Rubber StopperRubber Stopper
-
2000i250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2300270000949 Formed HoseFormed Hose
-
2310293650284 Clamp GearClamp Gear
-
2315293650284 Clamp GearClamp Gear
-
3520293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3530414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3540414115200 Tie-Rap 180 mmTie-Rap 180 mm
