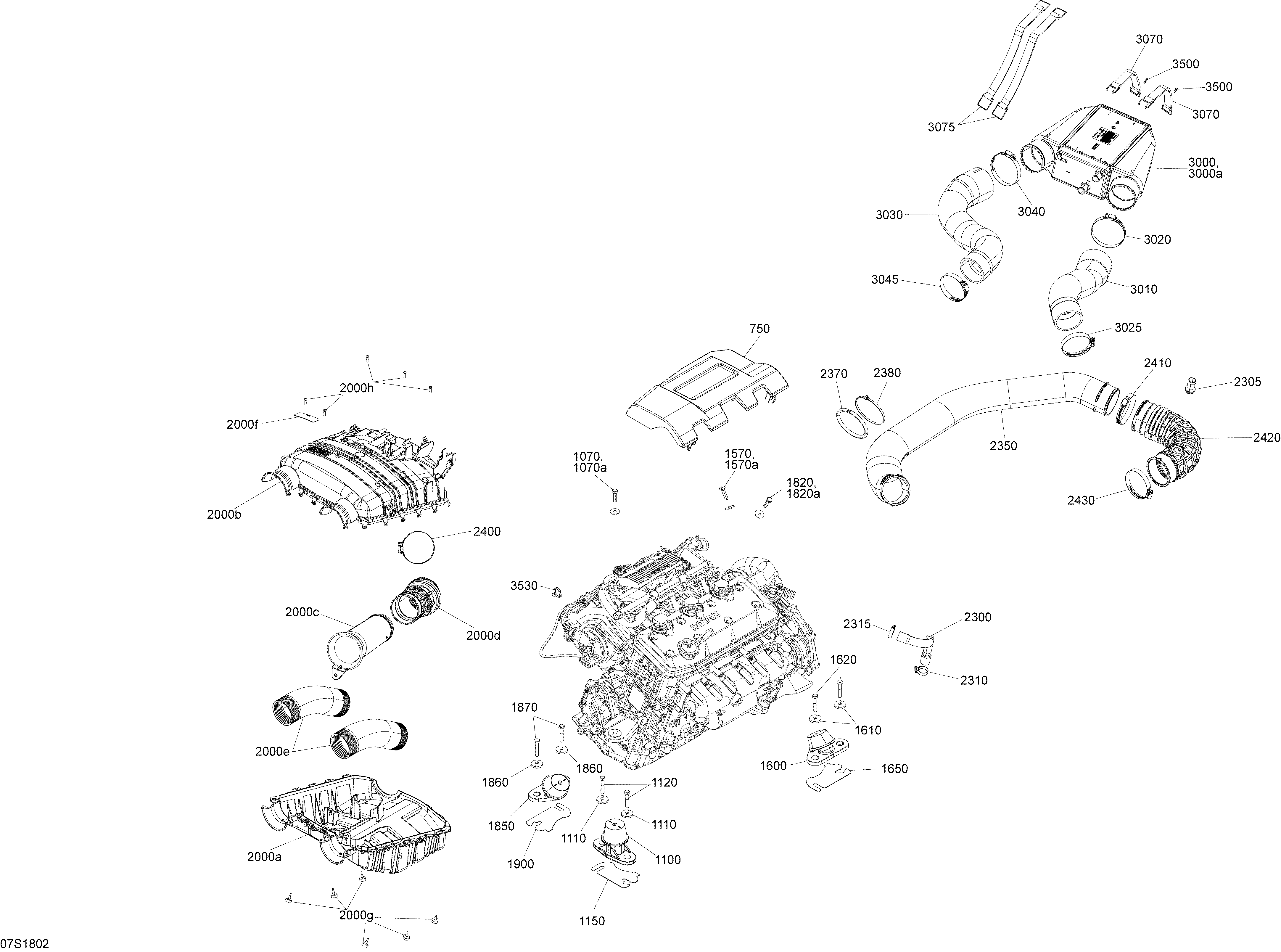

01- Engine 1630 ACE для BRP 3- GTX 300 - 2018
-
№АртикулНазвание
-
750270001002 Cover Ass'yCover Ass'y
-
1070>1070a250000933 Hex Sems Screw M8 X 30 S.Grip. Includes 1070 to 1070aHex Sems Screw M8 X 30 S.Grip. Includes 1070 to 1070a
-
1070a250000888 Hexagonal Screw M8 X 30Hexagonal Screw M8 X 30
-
1100270001029 Rubber MountRubber Mount
-
1110250200018 Cone WasherCone Washer
-
1120250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1150270000762 Shim 1.3 mmShim 1.3 mm
-
1570>1570a250000933 Hex Sems Screw M8 X 30 S.Grip. Includes 1570 to 1570aHex Sems Screw M8 X 30 S.Grip. Includes 1570 to 1570a
-
1570a250000888 Hexagonal Screw M8 X 30Hexagonal Screw M8 X 30
-
1600270001011 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1650270000762 Shim 1.3 mmShim 1.3 mm
-
1820>1820a250000933 Hex Sems Screw M8 X 30 S.Grip. Includes 1820 to 1820aHex Sems Screw M8 X 30 S.Grip. Includes 1820 to 1820a
-
1820a250000888 Hexagonal Screw M8 X 30Hexagonal Screw M8 X 30
-
1850270001011 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1900270000762 Shim 1.3 mmShim 1.3 mm
-
2000a273000342 Airbox BaseAirbox Base
-
2000b273000381 Intake Silencer CoverIntake Silencer Cover
-
2000c273000359 Intake HoseIntake Hose
-
2000d273000375 Hose ConnectorHose Connector
-
2000e273000290 Air Silencer HoseAir Silencer Hose
-
2000f219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000g708000759 Rubber StopperRubber Stopper
-
2000h250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2300270000950 Formed HoseFormed Hose
-
2305273000234 BreatherBreather
-
2310293650051 Tridon Gear ClampTridon Gear Clamp
-
2315293650051 Tridon Gear ClampTridon Gear Clamp
-
2350273000376 Intake Duct CTRLIntake Duct CTRL
-
2370415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
2380293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2400293650179 Tridon ClampTridon Clamp
-
2410293650179 Tridon ClampTridon Clamp
-
2420273000380 Intake HoseIntake Hose
-
2430293650179 Tridon ClampTridon Clamp
-
3000>3000a276000335 Intercooler. Includes 3000 to 3000aIntercooler. Includes 3000 to 3000a
-
3000a271001942 Anode ZincAnode Zinc
-
3010273000379 Formed HoseFormed Hose
-
3020293650244 Tridon Gear ClampTridon Gear Clamp
-
3025293650179 Tridon ClampTridon Clamp
-
3030273000377 Outlet HoseOutlet Hose
-
3040293650244 Tridon Gear ClampTridon Gear Clamp
-
3045293650179 Tridon ClampTridon Clamp
-
3070293850094 Fuel Tank StrapFuel Tank Strap
-
3075293850093 StrapStrap
-
3500293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
3530414115200 Tie-Rap 180 mmTie-Rap 180 mm
