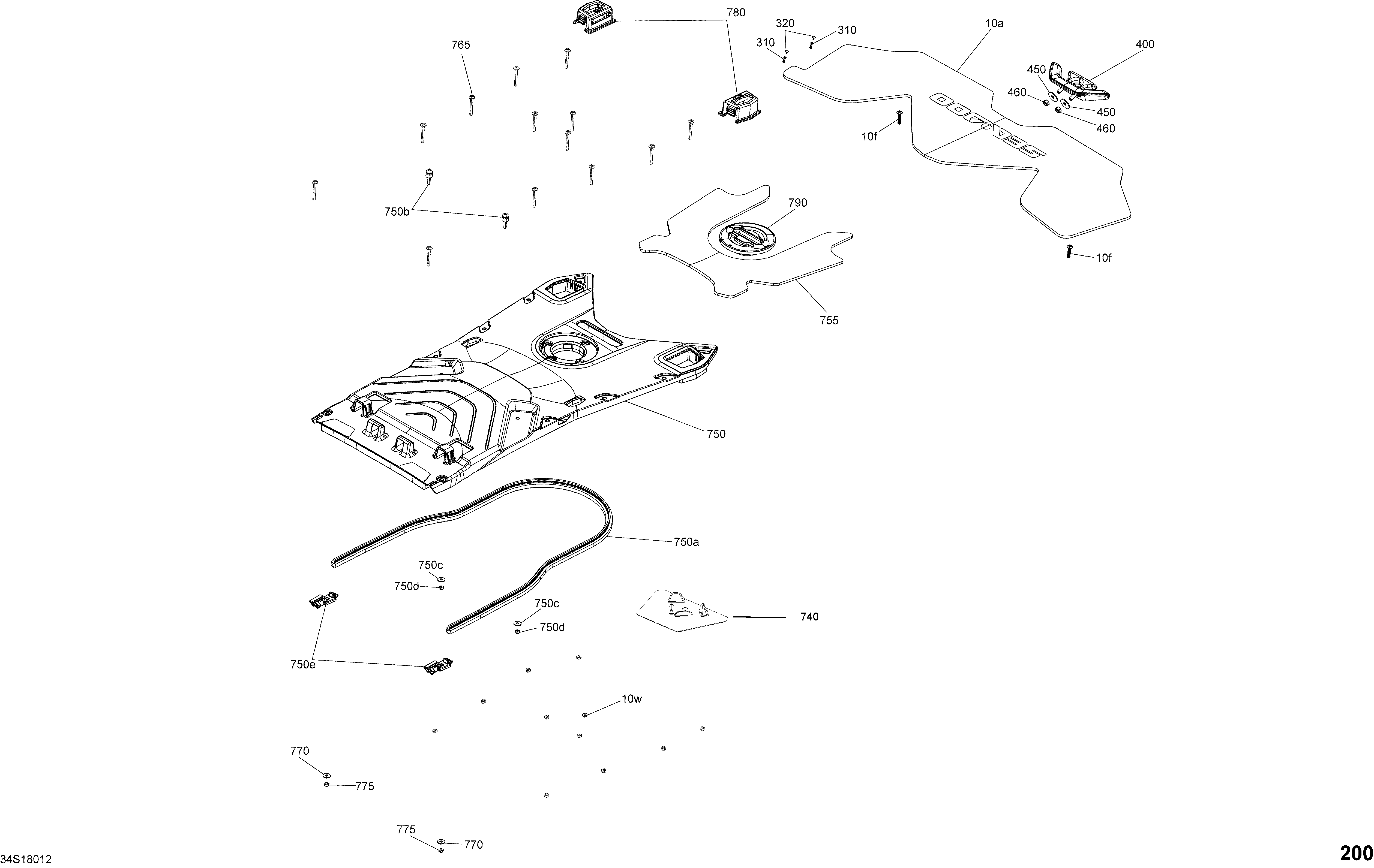

09- Body Rear Part - GTX Package STD для BRP 1- GTX 155 - 2018

  • №
    Артикул
    Название
  • 10a
    291004509 Rear Plat-Form Carpet
    Rear Plat-Form Carpet
  • 10f
    250000710 Torx Screw M6 X 3
    Torx Screw M6 X 3
  • 10w
    291004813 Housing Nut M6
    Housing Nut M6
  • 310
    293150016 Rivet 1/8''
    Rivet 1/8''
  • 320
    293000014 Black Snap Cap
    Black Snap Cap
  • 400
    291004597 Cleat
    Cleat
  • 450
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 460
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 740
    291004941 Hose Protector
    Hose Protector
  • 750>750e
    291004462 Access Cover Assy. Includes 750 to 750e
    Access Cover Assy. Includes 750 to 750e
  • 750a
    293200124 Seal
    Seal
  • 750b
    291004611 Stud
    Stud
  • 750c
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 750d
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 750e
    291004717 Seal
    Seal
  • 755
    291004668 Cover B-160
    Cover B-160
  • 765
    250000708 Screw Torx M6 X 50
    Screw Torx M6 X 50
  • 770
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 775
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 780
    291004549 Cargo Base
    Cargo Base
  • 790
    291004481 Acces Cap Ass'y
    Acces Cap Ass'y
