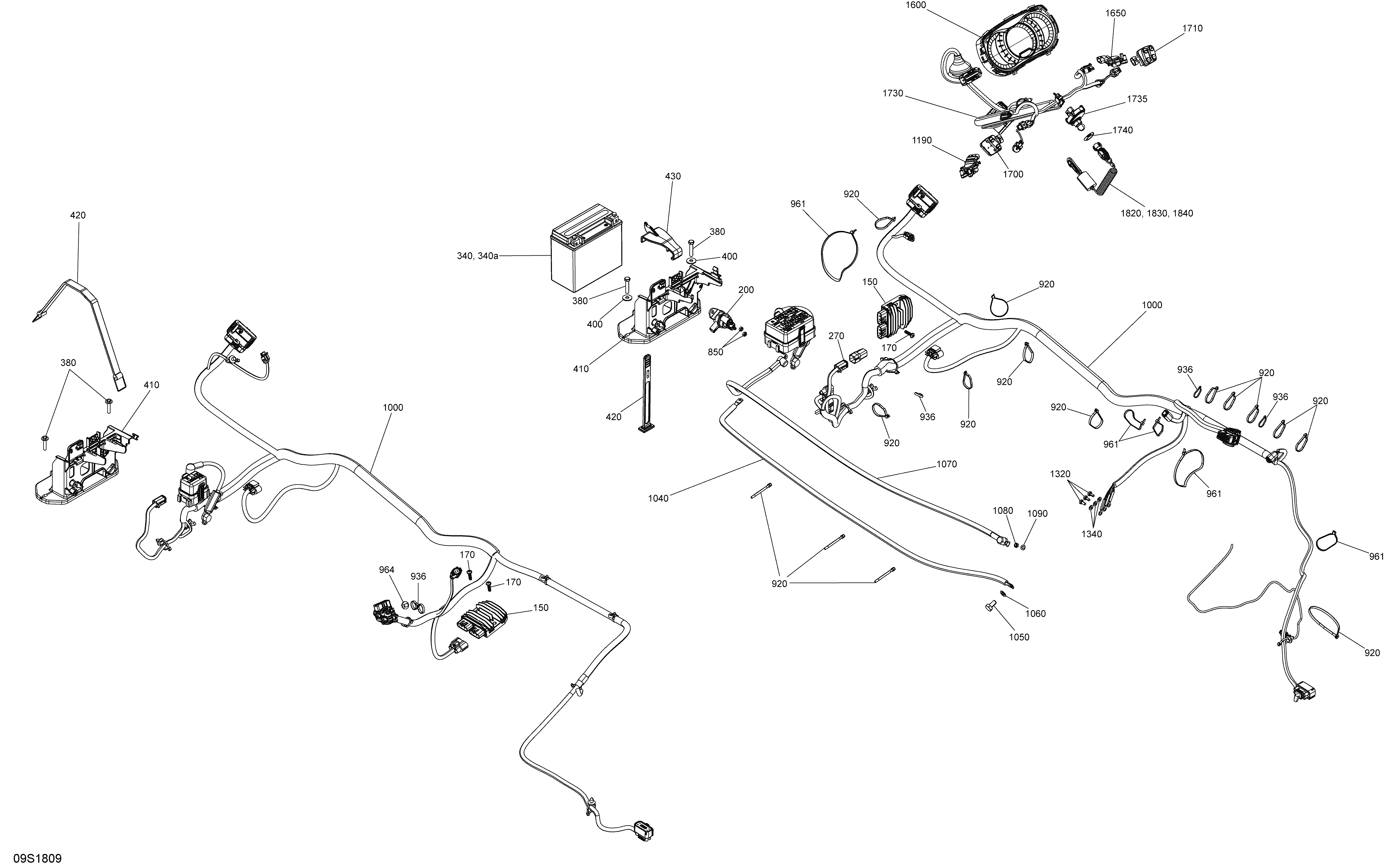

10- Electrical GTI - 155 для BRP 3- GTI 155 - 2018
-
№АртикулНазвание
-
150710001103 Voltage RegulatorVoltage Regulator
-
170250000969 Hex Screw M6X35Hex Screw M6X35
-
200278003012 Starter RelayStarter Relay
-
270710004904 Connector PlugConnector Plug
-
340410301203 Battery Ass'y, 18 Amperes. Includes 340 to 340aBattery Ass'y, 18 Amperes. Includes 340 to 340a
-
340a250000282 Battery Bolt KitBattery Bolt Kit
-
380207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
400234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
410278003671 Batterie SupportBatterie Support
-
420269500408 StrapStrap
-
430278003521 ClipClip
-
850232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
920414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
936293750053 Tie Rap 300mmTie Rap 300mm
-
961414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
964293730040 Mount DartMount Dart
-
1000278003385 Wiring HarnessWiring Harness
-
1040278003270 Battery Ground CableBattery Ground Cable
-
1050207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
1060234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
1070278003370 Cable-StarterCable-Starter
-
1080232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1090234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1190278002284 LH Throttle SensorLH Throttle Sensor
-
1320207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
1340234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1600278003580 LCD Gauge. Package SELCD Gauge. Package SE
-
1600278003582 Gauge. Package LTDGauge. Package LTD
-
1650278002283 RH Throttle SensorRH Throttle Sensor
-
1700278002767 Switch. Package LTDSwitch. Package LTD
-
1700278002768 Switch. Package SESwitch. Package SE
-
1710278002602 SwitchSwitch
-
1730278003558 Steering Harness Ass'y. Package LTDSteering Harness Ass'y. Package LTD
-
1730278003559 Steering Harness Ass'y. Package SESteering Harness Ass'y. Package SE
-
1735515178225 DESS SwitchDESS Switch
-
1740278002963 Safety NutSafety Nut
-
1820278003400 Anti-Theft Tether Cord. Package SEAnti-Theft Tether Cord. Package SE
-
1830278003401 Anti-Theft Tether Cord, LearningAnti-Theft Tether Cord, Learning
-
1840278003402 Anti-Theft Tether Cord. Package LTDAnti-Theft Tether Cord. Package LTD
