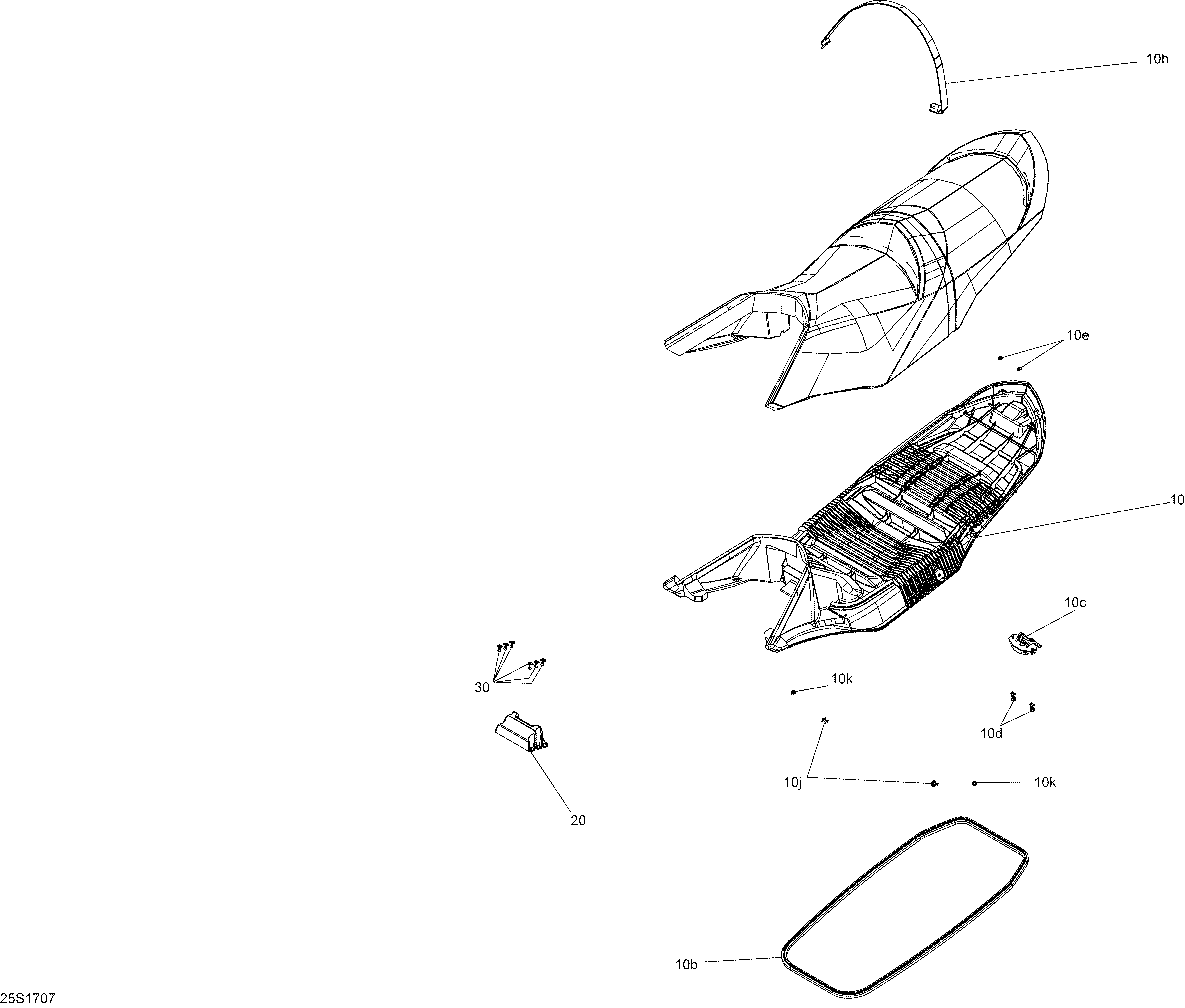

09- Seat - All Models для BRP Wake - 2017
-
№АртикулНазвание
-
10>10k269003048 Seat Ass'y. Includes 10 to 10kSeat Ass'y. Includes 10 to 10k
-
10b293200124 SealSeal
-
10c269700109 Latch Ass'yLatch Ass'y
-
10d293150151 Rivet 1/4''Rivet 1/4''
-
10e234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10h269002849 Seat StrapSeat Strap
-
10j293150067 RivetRivet
-
10k293720067 GrommetGrommet
-
20269002151 Seat ReceptacleSeat Receptacle
-
30293150123 Pop Rivet 3/16''Pop Rivet 3/16''
