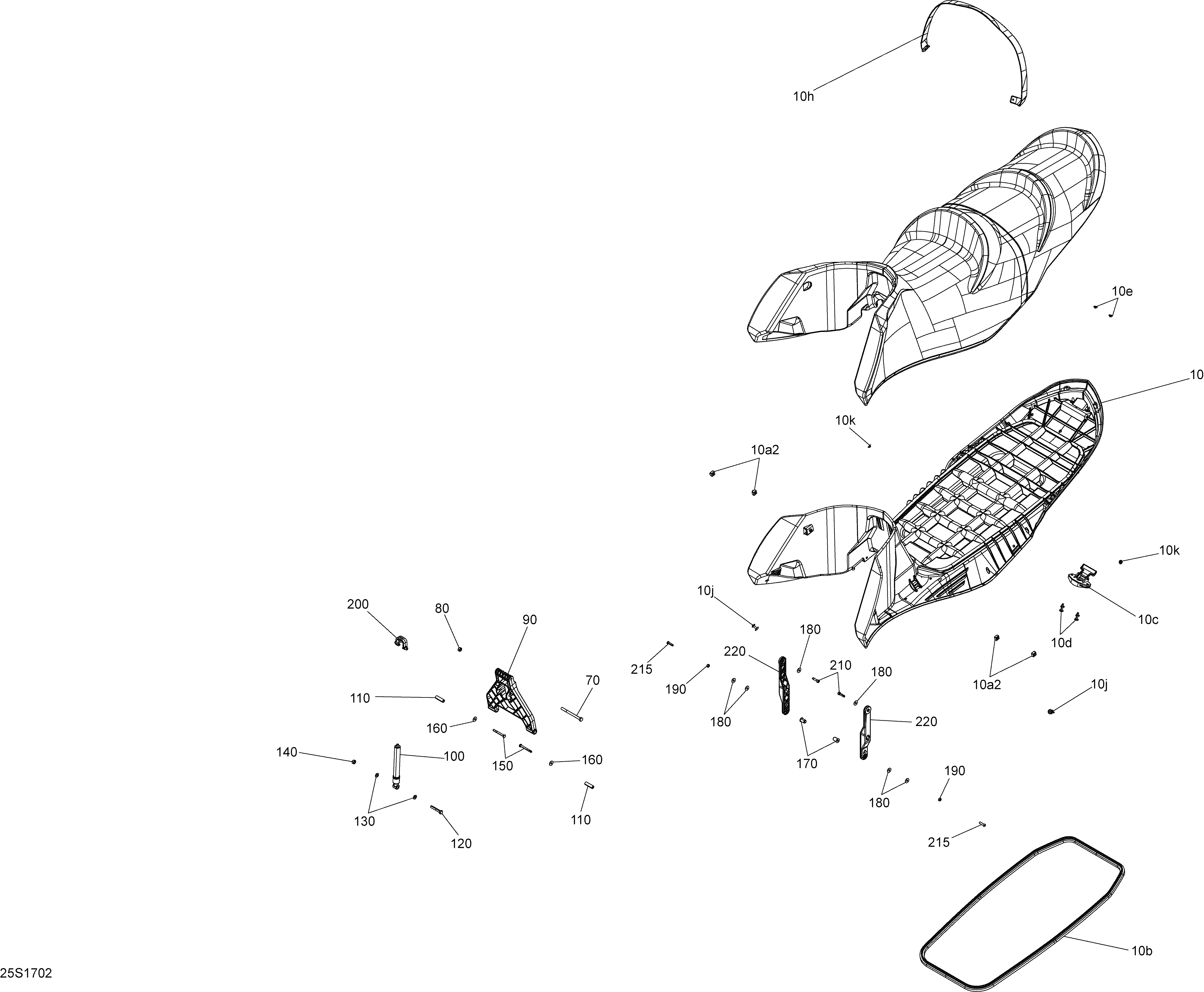

09- Seat - All Models для BRP Wake PRO - 2017
-
№АртикулНазвание
-
10>10k269003064 Seat Ass'y. Includes 10 to 10kSeat Ass'y. Includes 10 to 10k
-
10a2269501166 Nut Housing Ass'yNut Housing Ass'y
-
10b293200124 SealSeal
-
10c269700116 Latch Ass'yLatch Ass'y
-
10d293150151 Rivet 1/4''Rivet 1/4''
-
10e293720067 GrommetGrommet
-
10h269002869 Seat StrapSeat Strap
-
10j293150067 RivetRivet
-
10k293720067 GrommetGrommet
-
70230080060 Hex. Screw M8 X 100Hex. Screw M8 X 100
-
80232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
90269502120 Center ArmCenter Arm
-
100269002895 ShockShock
-
110269001589 SpacerSpacer
-
120207085060 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
130234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
140232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
150207265560 Hex. Screw M6 X 55, Scotch GripHex. Screw M6 X 55, Scotch Grip
-
160234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
170250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
180234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
190269001588 SpacerSpacer
-
200269002077 End FittingEnd Fitting
-
210205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
215250000328 Torx Screw M6 X 25, Scotch GripTorx Screw M6 X 25, Scotch Grip
-
220269002978 Lateral ArmLateral Arm
