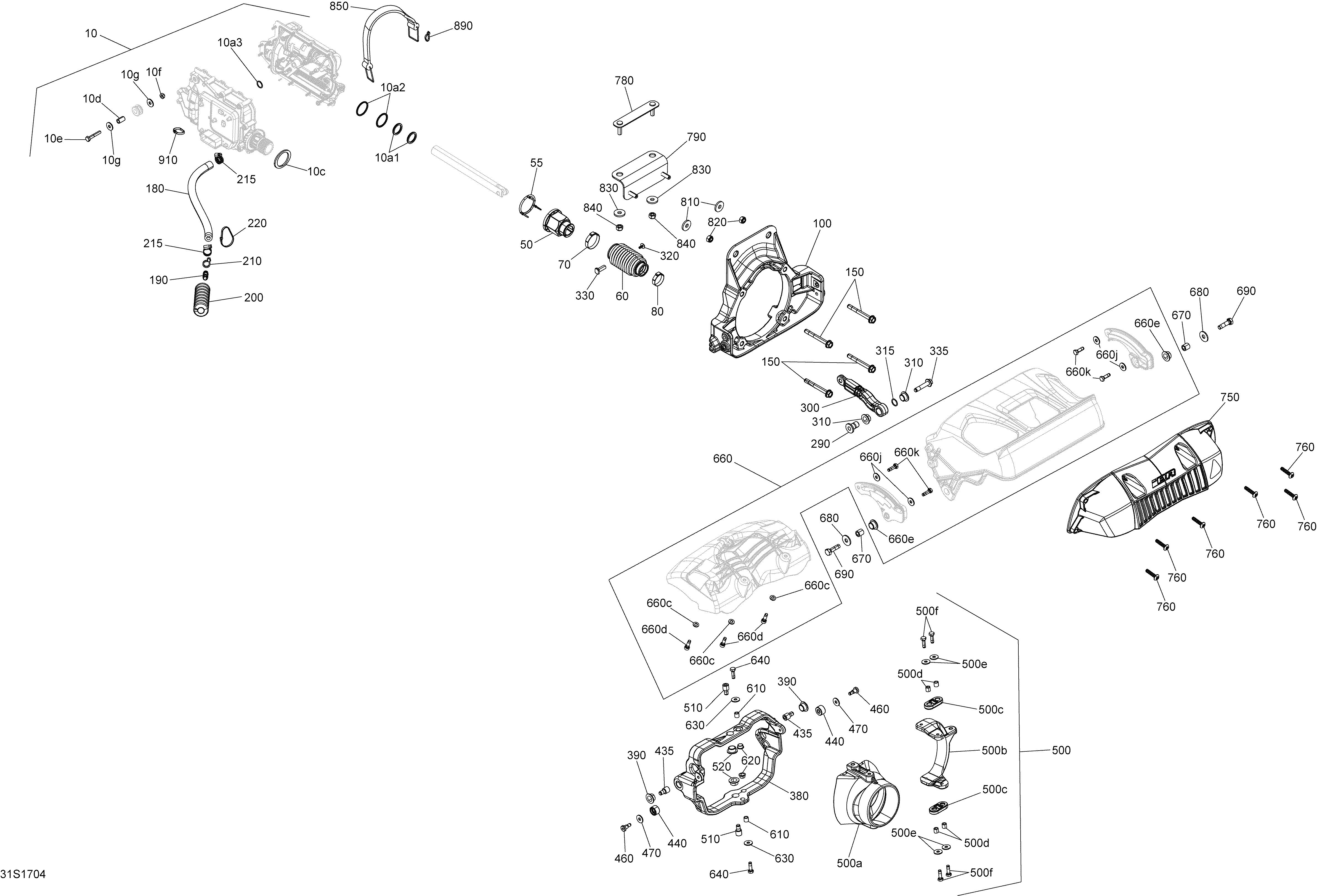

05- Reverse - All Models для BRP Wake PRO - 2017
-
№АртикулНазвание
-
10>10g278003478 Actuator. Includes 10 to 10gActuator. Includes 10 to 10g
-
10a1279000108 O-RingO-Ring
-
10a2293300107 O-RingO-Ring
-
10a3293300187 O-RingO-Ring
-
10c268000208 GasketGasket
-
10d271001020 SpacerSpacer
-
10e207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
10f232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
10g234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
50268000267 Ibr NutIbr Nut
-
55277001977 Rubber GasketRubber Gasket
-
60268000186 BootBoot
-
70509000529 Oetiker Gear ClampOetiker Gear Clamp
-
80293650099 Crimp ClampCrimp Clamp
-
100268000266 BracketBracket
-
150250000835 Screw-Hex.Flange DIN.6921 S.GripScrew-Hex.Flange DIN.6921 S.Grip
-
180509000407 Hose 8 mmHose 8 mm
-
190293710157 Fitting-StraigFitting-Straig
-
200268000211 Inner BootInner Boot
-
210293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
215293650171 Tridon Gear ClampTridon Gear Clamp
-
220293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
290268000269 BushingBushing
-
300268000256 Linkage ArmLinkage Arm
-
310293900007 Venturi BushingVenturi Bushing
-
315293300187 O-RingO-Ring
-
320250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
330268000207 Shoulder PinShoulder Pin
-
335250000834 Screw-Hex.Flange DIN.6921 S.GripScrew-Hex.Flange DIN.6921 S.Grip
-
380268000247 Trimming RingTrimming Ring
-
390293900007 Venturi BushingVenturi Bushing
-
435250000837 Screw Socket S.GripScrew Socket S.Grip
-
440>440a295501160 Roller Bushing Kit. Includes 440 to 440aRoller Bushing Kit. Includes 440 to 440a
-
440a250000775 Screw-Socket Shoulder M8X8Screw-Socket Shoulder M8X8
-
460250000775 Screw-Socket Shoulder M8X8Screw-Socket Shoulder M8X8
-
470234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500>500f267000905 Steering Nozzle Ass'y. Includes 500 to 500fSteering Nozzle Ass'y. Includes 500 to 500f
-
500a267000727 Jet Pump NozzleJet Pump Nozzle
-
500b268000148 Nozzle Lever, BlackNozzle Lever, Black
-
500c268000058 Direction Lever ArmDirection Lever Arm
-
500d268000060 SpacerSpacer
-
500e234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500f250000891 Scotch Grip Hexagonal Screw M6 X 20Scotch Grip Hexagonal Screw M6 X 20
-
510250000837 Screw Socket S.GripScrew Socket S.Grip
-
520293900007 Venturi BushingVenturi Bushing
-
610268000060 SpacerSpacer
-
620268000059 BushingBushing
-
630234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
640207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
660>660k268000296 Gate Reverse Ass'y. Includes 660 to 660k, Trim Ramp Kit 295501168Gate Reverse Ass'y. Includes 660 to 660k, Trim Ramp Kit 295501168
-
660c234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
660d205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
660e293900007 Venturi BushingVenturi Bushing
-
660j234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
660k207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
670271001039 SpacerSpacer
-
680234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
690250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
750268000162 GuardGuard
-
760250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
780268000271 Ass'y BracketAss'y Bracket
-
790268000304 Reverse BracketReverse Bracket
-
810279000164 Flat WasherFlat Washer
-
820232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
830279000164 Flat WasherFlat Washer
-
840232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
850293850123 Fuel Tank StrapFuel Tank Strap
-
890293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
910293750002 Tie-Rap 142 mmTie-Rap 142 mm
