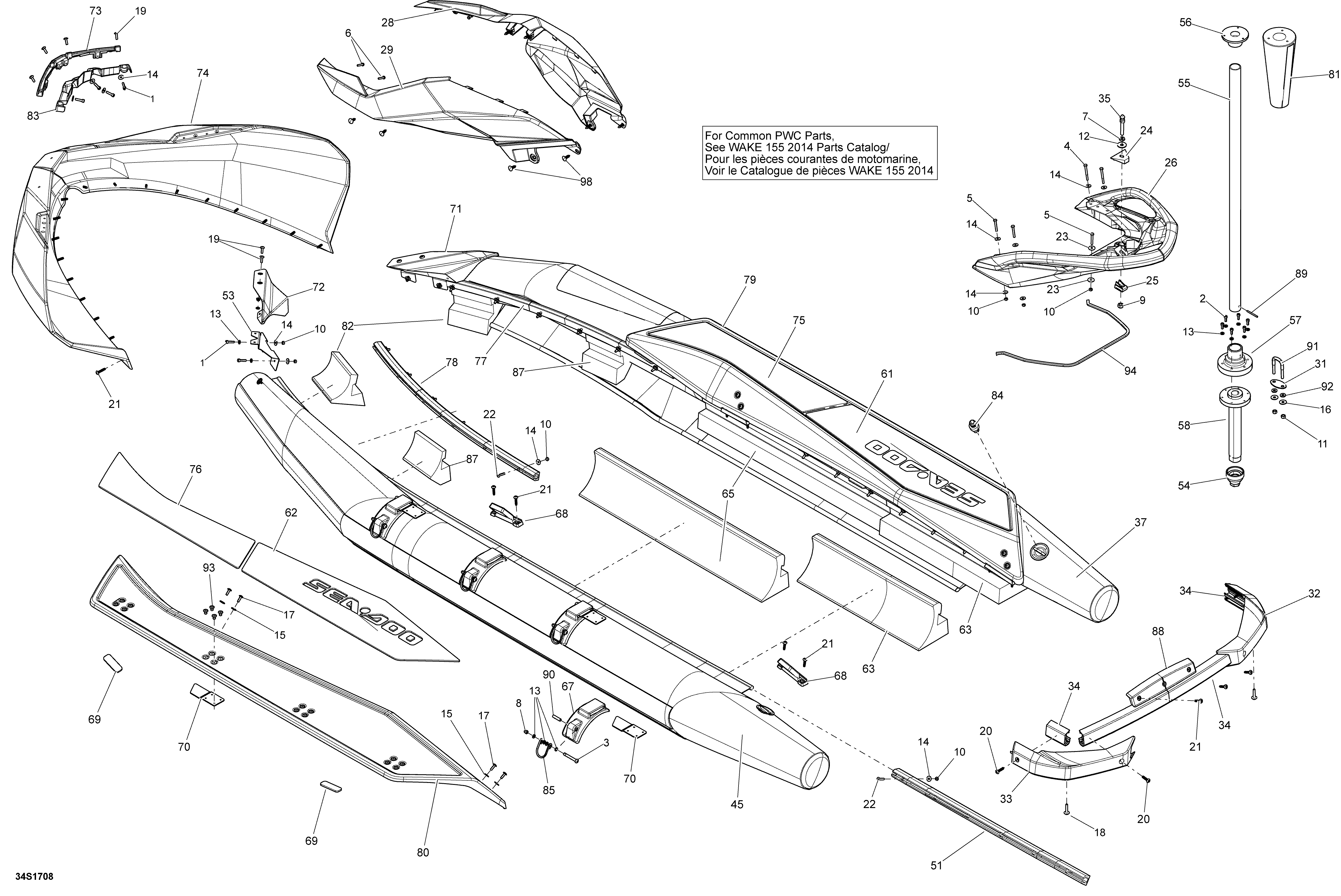

09- Body для BRP SAR 155 - 2017

  • №
    Артикул
    Название
  • 1
    205062560 Socket Head Screw M6 X 25
    Socket Head Screw M6 X 25
  • 1
    205062560 Socket Head Screw M6 X 25
    Socket Head Screw M6 X 25
  • 2
    205561660 Socket Head Screw M6 X 16, Scotch Grip
    Socket Head Screw M6 X 16, Scotch Grip
  • 2
    205561660 Socket Head Screw M6 X 16, Scotch Grip
    Socket Head Screw M6 X 16, Scotch Grip
  • 3
    205566060 Socket Head Screw
    Socket Head Screw
  • 3
    205566060 Socket Head Screw
    Socket Head Screw
  • 4
    207065560 Hex. Screw M6 x 55
    Hex. Screw M6 x 55
  • 4
    207065560 Hex. Screw M6 x 55
    Hex. Screw M6 x 55
  • 5
    207164060 Hex. Screw M6 X 40
    Hex. Screw M6 X 40
  • 5
    207164060 Hex. Screw M6 X 40
    Hex. Screw M6 X 40
  • 6
    211000023 Hex. Screw 10-14 X 7/8''
    Hex. Screw 10-14 X 7/8''
  • 6
    211000023 Hex. Screw 10-14 X 7/8''
    Hex. Screw 10-14 X 7/8''
  • 7
    232100600 Hex. Jam Nut M10
    Hex. Jam Nut M10
  • 8
    232361600 Nut M6
    Nut M6
  • 9
    232501200 Elastic Stop Nut M10, Brass
    Elastic Stop Nut M10, Brass
  • 10
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 11
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 12
    234002600 Flat Washer 10 mm, Stainless
    Flat Washer 10 mm, Stainless
  • 13
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 14
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 15
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 16
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 17
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 18
    250000399 Hexagonal Cap Screw M6 X35
    Hexagonal Cap Screw M6 X35
  • 19
    250000488 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 20
    250000709 Torx Screw M6.81 X 30
    Torx Screw M6.81 X 30
  • 21
    291004284 Thread Screw Filet 1/4-20 X 1 1/4
    Thread Screw Filet 1/4-20 X 1 1/4
  • 22
    250000744 Torx Scew M6 X 30
    Torx Scew M6 X 30
  • 23
    250200022 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 24
    269002125 Seat Stud Spacer
    Seat Stud Spacer
  • 25
    269002126 Seat Stud Support
    Seat Stud Support
  • 26
    291004625 Black Rear Handle
    Black Rear Handle
  • 28
    269501812 White RH Cosmetic Panel
    White RH Cosmetic Panel
  • 29
    269501813 White LH Cosmetic Panel
    White LH Cosmetic Panel
  • 31
    291001386 Finition Plate, Black
    Finition Plate, Black
  • 32
    291004153 RH Bumper Corner
    RH Bumper Corner
  • 33
    291004152 LH Bumper Corner
    LH Bumper Corner
  • 33
    291004152 LH Bumper Corner
    LH Bumper Corner
  • 34
    291003872 Lateral Bumper
    Lateral Bumper
  • 34
    291003872 Lateral Bumper
    Lateral Bumper
  • 35
    291003877 Stud Seat
    Stud Seat
  • 35
    291003877 Stud Seat
    Stud Seat
  • 37
    291003955 RH Float Inflatable Balloon
    RH Float Inflatable Balloon
  • 37
    291003955 RH Float Inflatable Balloon
    RH Float Inflatable Balloon
  • 45
    291003956 LH Float Inflatable Balloon
    LH Float Inflatable Balloon
  • 45
    291003956 LH Float Inflatable Balloon
    LH Float Inflatable Balloon
  • 51
    291003962 Rear Balloon Slide Rail
    Rear Balloon Slide Rail
  • 51
    291003962 Rear Balloon Slide Rail
    Rear Balloon Slide Rail
  • 53
    291003967 RH Upper Support
    RH Upper Support
  • 53
    291003967 RH Upper Support
    RH Upper Support
  • 53
    291003968 LH Upper Support
    LH Upper Support
  • 53
    291003968 LH Upper Support
    LH Upper Support
  • 54
    291003969 Rod Stopper Block
    Rod Stopper Block
  • 54
    291003970 Mast Ass'y
    Mast Ass'y
  • 55
    291003970 Mast Ass'y
    Mast Ass'y
  • 56
    291003970 Mast Ass'y
    Mast Ass'y
  • 57
    291003970 Mast Ass'y
    Mast Ass'y
  • 58
    291003974 Link Bar Support Assembly
    Link Bar Support Assembly
  • 58
    291003969 Rod Stopper Block
    Rod Stopper Block
  • 61
    291003979 RH Rear Foot Pad
    RH Rear Foot Pad
  • 62
    291003980 LH Rear Foot Pad
    LH Rear Foot Pad
  • 63
    291003989 Rear Balloon Support
    Rear Balloon Support
  • 65
    291004051 Front Balloon Support
    Front Balloon Support
  • 67
    291004054 Foot Anchor
    Foot Anchor
  • 68
    291004055 Foot Support
    Foot Support
  • 69
    291004057 Rubber Stopper
    Rubber Stopper
  • 70
    291004058 Floorboard Mounting Plate
    Floorboard Mounting Plate
  • 71
    291004087 RH Cover Support
    RH Cover Support
  • 72
    291004088 LH Cover Support
    LH Cover Support
  • 73
    291004111 Bumper Support MA
    Bumper Support MA
  • 74
    291004162 Bumper With Protective Coating
    Bumper With Protective Coating
  • 75
    291004113 RH Front Foot Pad
    RH Front Foot Pad
  • 76
    291004114 LH Front Foot Pad
    LH Front Foot Pad
  • 77
    291004115 RH Front Balloon Slide Rail
    RH Front Balloon Slide Rail
  • 78
    291004116 LH Front Balloon Slide Rail
    LH Front Balloon Slide Rail
  • 79
    291004118 RH Floorboard
    RH Floorboard
  • 80
    291004119 LH Floorboard
    LH Floorboard
  • 81
    291004128 Pad Foam
    Pad Foam
  • 82
    291004151 Front Balloon Support (Small)
    Front Balloon Support (Small)
  • 83
    291004160 Bumper Support MA
    Bumper Support MA
  • 84
    291004166 Air Pump Adaptor
    Air Pump Adaptor
  • 85
    291004167 Shackle
    Shackle
  • 87
    291004187 Mid Balloon Support (Small)
    Mid Balloon Support (Small)
  • 88
    291004213 Appui Civiere
    Appui Civiere
  • 89
    291004214 Spring Pin M4 X 50
    Spring Pin M4 X 50
  • 90
    291004219 Shackle Spacer Bushing
    Shackle Spacer Bushing
  • 91
    292000933 U-Clamp
    U-Clamp
  • 92
    293050001 Flat Washer
    Flat Washer
  • 93
    293150186 Pop Rivet 3/16
    Pop Rivet 3/16
  • 94
    293250218 Gasket
    Gasket
  • 98
    293730006 Black Dart
    Black Dart
