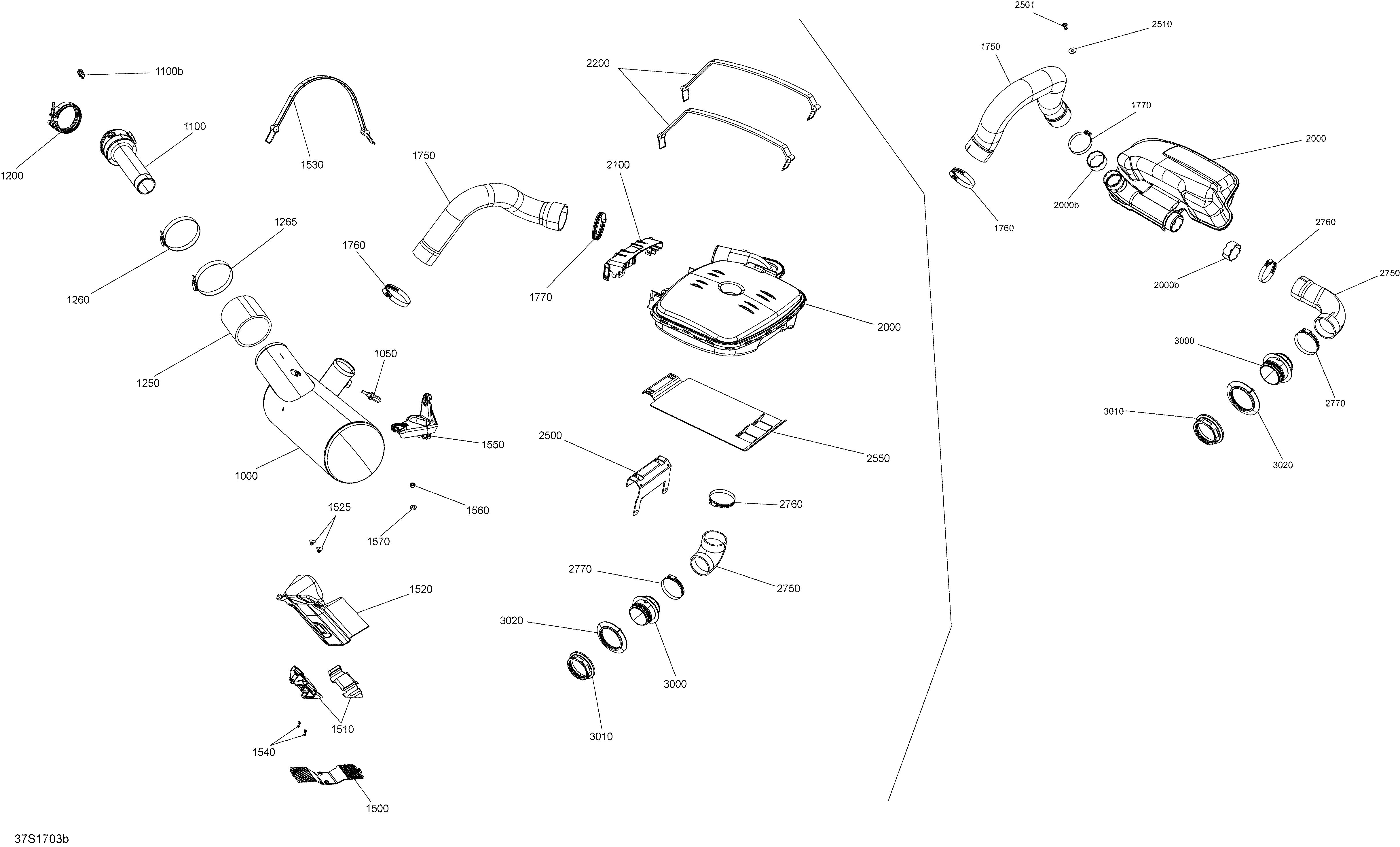

01- Exhaust System - All Models для BRP RXT - 2017
-
№АртикулНазвание
-
1000274001517 Muffler. Model RXT-X 300, RXT-X RS 300Muffler. Model RXT-X 300, RXT-X RS 300
-
1000274001648 Muffler. Model RXT 260, RXT 260 RSMuffler. Model RXT 260, RXT 260 RS
-
1050278002895 Temperature SensorTemperature Sensor
-
1100b293700023 Elbow Fitting 90°Elbow Fitting 90°
-
1100>1100b274001354 Head Pipe Ass'y. Includes 1100 to 1100bHead Pipe Ass'y. Includes 1100 to 1100b
-
1100b293700023 Elbow Fitting 90°Elbow Fitting 90°
-
1200274001417 Exhaust ClampExhaust Clamp
-
1250274001610 HoseHose
-
1260293650202 Gear ClampGear Clamp
-
1265293650202 Gear ClampGear Clamp
-
1500274001479 Exhaust Muffler SupportExhaust Muffler Support
-
1510274001358 StopperStopper
-
1520293830181 Rubber PadRubber Pad
-
1525414939500 DartDart
-
1530293850093 Strap. Model RXT 260, RXT 260 RSStrap. Model RXT 260, RXT 260 RS
-
1530293850124 Strap-Fuel Tank. Model RXT-X 300, RXT-X RS 300Strap-Fuel Tank. Model RXT-X 300, RXT-X RS 300
-
1540293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
1550274001609 SupportSupport
-
1560232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1570293050001 Flat WasherFlat Washer
-
1750274001458 Front Formed Exhaust Hose. Model RXT 260, RXT 260 RSFront Formed Exhaust Hose. Model RXT 260, RXT 260 RS
-
1750274001518 Exhaust Hose. Model RXT-X 300, RXT-X RS 300Exhaust Hose. Model RXT-X 300, RXT-X RS 300
-
1760293650179 Tridon Clamp. Model RXT 260, RXT 260 RSTridon Clamp. Model RXT 260, RXT 260 RS
-
1760293650244 Tridon Gear Clamp. Model RXT-X 300, RXT-X RS 300Tridon Gear Clamp. Model RXT-X 300, RXT-X RS 300
-
1770293650179 Tridon Clamp. Model RXT 260, RXT 260 RSTridon Clamp. Model RXT 260, RXT 260 RS
-
1770293650244 Tridon Gear Clamp. Model RXT-X 300, RXT-X RS 300Tridon Gear Clamp. Model RXT-X 300, RXT-X RS 300
-
2000>2000b274001366 Resonator. Model RXT 260, RXT 260 RS. Includes 2000 to 2000bResonator. Model RXT 260, RXT 260 RS. Includes 2000 to 2000b
-
2000b293200003 Neoprene Seal, Meter. Model RXT 260, RXT 260 RSNeoprene Seal, Meter. Model RXT 260, RXT 260 RS
-
2000274001514 Resonator. Model RXT-X 300, RXT-X RS 300Resonator. Model RXT-X 300, RXT-X RS 300
-
2100274001583 Cover. Model RXT-X 300, RXT-X RS 300Cover. Model RXT-X 300, RXT-X RS 300
-
2200293850120 StrapStrap
-
2500292001831 BracketBracket
-
2501293150123 Pop Rivet 3/16''. Model RXT 260, RXT 260 RSPop Rivet 3/16''. Model RXT 260, RXT 260 RS
-
2510234082600 Flat Washer 8 mm, Stainless. Model RXT 260, RXT 260 RSFlat Washer 8 mm, Stainless. Model RXT 260, RXT 260 RS
-
2550293830173 Pad-RubberPad-Rubber
-
2750274001542 Exhaust Hose. Model RXT-X 300, RXT-X RS 300Exhaust Hose. Model RXT-X 300, RXT-X RS 300
-
2750274001608 Hose-Exhaust. Model RXT 260, RXT 260 RSHose-Exhaust. Model RXT 260, RXT 260 RS
-
2760293650179 Tridon Clamp. Model RXT 260, RXT 260 RSTridon Clamp. Model RXT 260, RXT 260 RS
-
2760293650244 Tridon Gear Clamp. Model RXT-X 300, RXT-X RS 300Tridon Gear Clamp. Model RXT-X 300, RXT-X RS 300
-
2770293650244 Tridon Gear ClampTridon Gear Clamp
-
3000274001540 Outlet-ExhaustOutlet-Exhaust
-
3010274001541 Nut-77mmNut-77mm
-
3020274001587 WasherWasher
