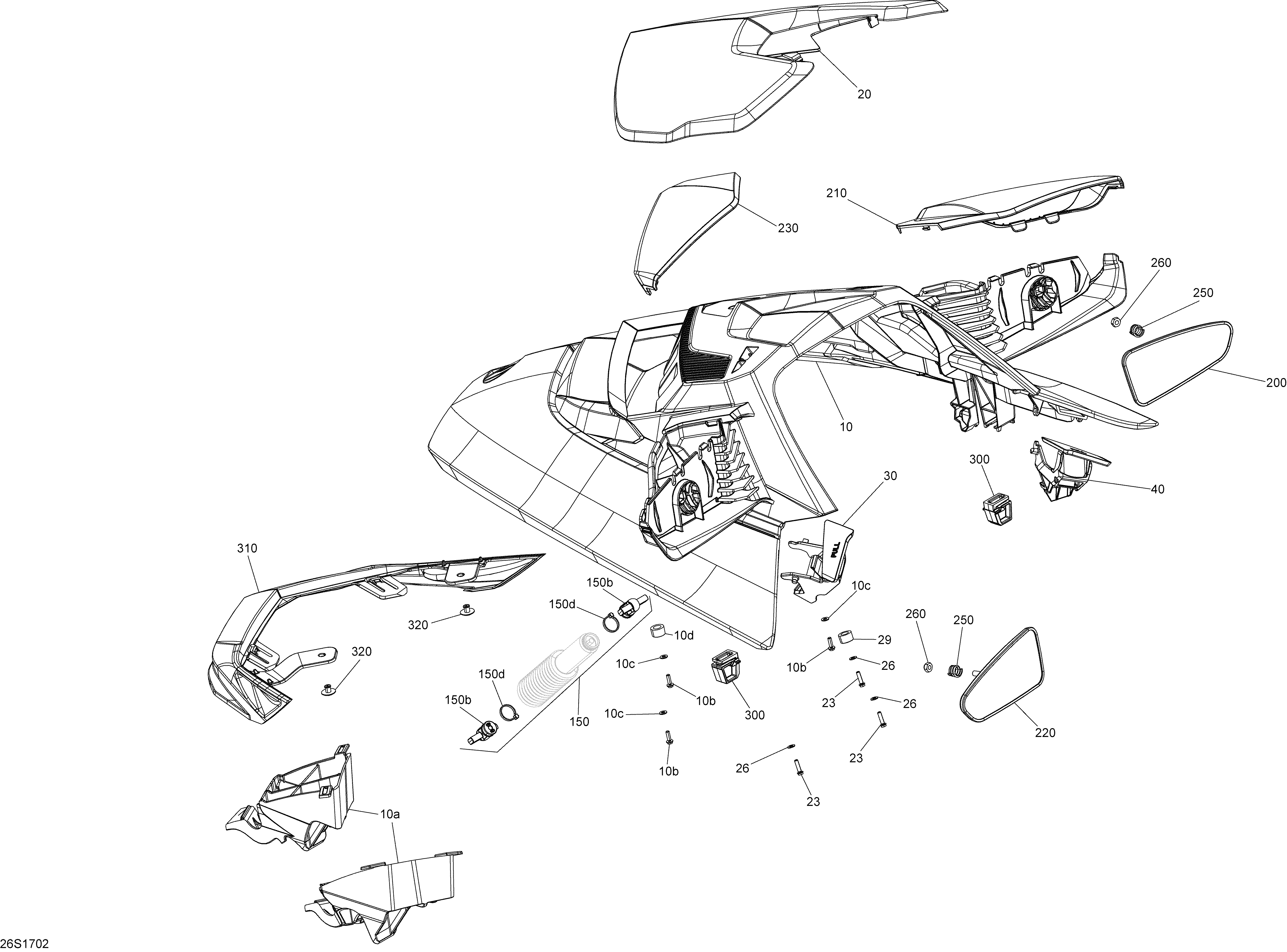

09- Front Cover - All Models для BRP GTX - 2017
-
№АртикулНазвание
-
10>10d269502313 Deep Pewter / Black Hood Ass'y. Model GTX 155. Includes 10 to 10dDeep Pewter / Black Hood Ass'y. Model GTX 155. Includes 10 to 10d
-
10>10d269502309 Deep Pewter / Black Hood Ass'y. Model GTX S 155. Includes 10 to 10dDeep Pewter / Black Hood Ass'y. Model GTX S 155. Includes 10 to 10d
-
10>10d269502310 Deep Pewter / Chrome Hood Ass'y. Model GTX LTD 230, GTX LTD 300. Includes 10 to 10dDeep Pewter / Chrome Hood Ass'y. Model GTX LTD 230, GTX LTD 300. Includes 10 to 10d
-
10>10d269502308 Deep Pewter / Chrome Hood Ass'y. Model GTX LTD S 260. Includes 10 to 10dDeep Pewter / Chrome Hood Ass'y. Model GTX LTD S 260. Includes 10 to 10d
-
10a269502087 Chrome Front Cosmetic. Model GTX LTD S 260, GTX LTD 300Chrome Front Cosmetic. Model GTX LTD S 260, GTX LTD 300
-
10a269502089 Black Front Cosmetic. Model GTX 155, GTX S 155Black Front Cosmetic. Model GTX 155, GTX S 155
-
10b241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
10c234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
10d291001203 SpacerSpacer
-
20269502209 Black Upper Front DeflectorBlack Upper Front Deflector
-
23241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
26234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
29291001203 SpacerSpacer
-
30269501964 Left LatchLeft Latch
-
40269501965 Right LatchRight Latch
-
150>150d269501664 Shock Absorber. Includes 150 to 150dShock Absorber. Includes 150 to 150d
-
150b269501717 Shock End PieceShock End Piece
-
150d293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
200269501920 RH Mirror Ass'yRH Mirror Ass'y
-
210269502204 Black RH Mirror HousingBlack RH Mirror Housing
-
220269501918 LH Mirror Ass'yLH Mirror Ass'y
-
230269502203 Black LH Mirror HousingBlack LH Mirror Housing
-
250269500453 Mirror SpringMirror Spring
-
260232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
300293830135 Rubber BumperRubber Bumper
-
310269501756 Black Front Cosmetic. Model GTX 155, GTX LTD 230, GTX LTD 300Black Front Cosmetic. Model GTX 155, GTX LTD 230, GTX LTD 300
-
320293150067 Rivet. Model GTX 155, GTX LTD 230, GTX LTD 300Rivet. Model GTX 155, GTX LTD 230, GTX LTD 300
