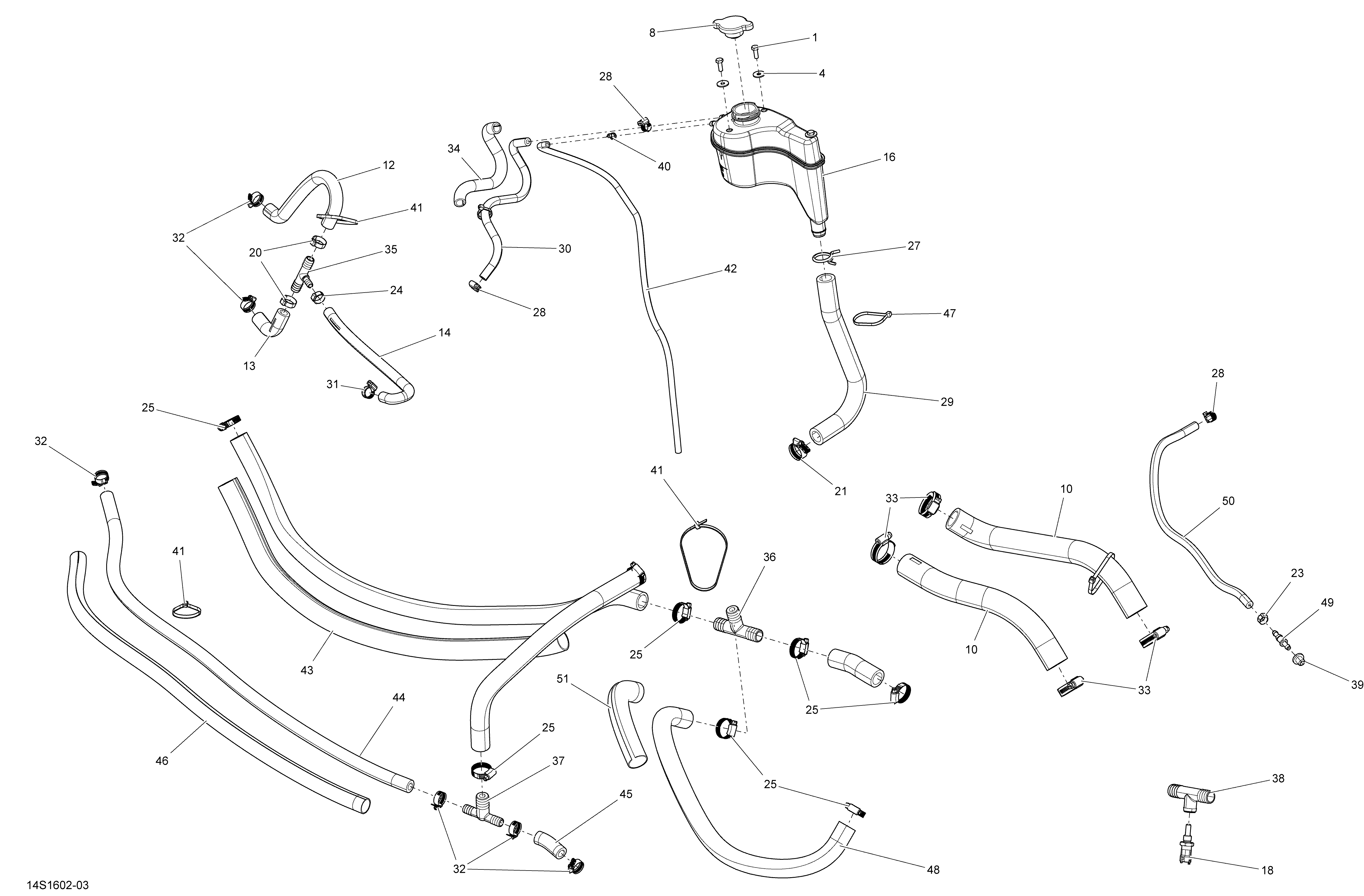

01- Cooling System - Except 300 для BRP GTX - 2016
-
№АртикулНазвание
-
1207362060 Hex. Screw M6 X 20, Scotch Grip. Platform Piranha FixeHex. Screw M6 X 20, Scotch Grip. Platform Piranha Fixe
-
1207361660 Hex. Screw M6 X 16, Scotch Grip. Platform Piranha SHex. Screw M6 X 16, Scotch Grip. Platform Piranha S
-
4234062600 Flat Washer M6, Stainless. Platform Piranha SFlat Washer M6, Stainless. Platform Piranha S
-
4234062600 Flat Washer M6, Stainless. Platform Piranha FixeFlat Washer M6, Stainless. Platform Piranha Fixe
-
8276000100 Pressure CapPressure Cap
-
10276000240 Radiator HoseRadiator Hose
-
12276000244 Formed HoseFormed Hose
-
13276000245 Lower Formed HoseLower Formed Hose
-
14276000246 Formed HoseFormed Hose
-
16276000265 Coolant TankCoolant Tank
-
18278002895 Temperature SensorTemperature Sensor
-
20293650012 Oetiker ClampOetiker Clamp
-
21293650019 Tridon Gear ClampTridon Gear Clamp
-
23293650025 Oetiker Gear ClampOetiker Gear Clamp
-
24293650030 Oetiker ClampOetiker Clamp
-
25293650051 Tridon Gear ClampTridon Gear Clamp
-
27293650115 Spring ClampSpring Clamp
-
28293650170 Tridon Gear ClampTridon Gear Clamp
-
29276000099 Hose 19 mmHose 19 mm
-
30276000394 Master-HoseMaster-Hose
-
31293650171 Tridon Gear ClampTridon Gear Clamp
-
32293650172 Tridon Gear ClampTridon Gear Clamp
-
33293650185 Tridon Gear ClampTridon Gear Clamp
-
34409901800 Tubing 13 mmTubing 13 mm
-
35293710116 T-FittingT-Fitting
-
36293710131 T-FittingT-Fitting
-
37293710132 T-FittingT-Fitting
-
38293710143 Sensor AssemblySensor Assembly
-
39293720029 GrommetGrommet
-
40293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
42415080200 Hose, PolyurethaneHose, Polyurethane
-
43409902200 Tubing 25 mmTubing 25 mm
-
44276000151 Hose 12.5 mmHose 12.5 mm
-
45276000151 Hose 12.5 mmHose 12.5 mm
-
46515175319 Tubing 22 mmTubing 22 mm
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48276000099 Hose 19 mmHose 19 mm
-
49414518500 Male ConnectorMale Connector
-
50276000394 Master-HoseMaster-Hose
-
51409902200 Tubing 25 mmTubing 25 mm
