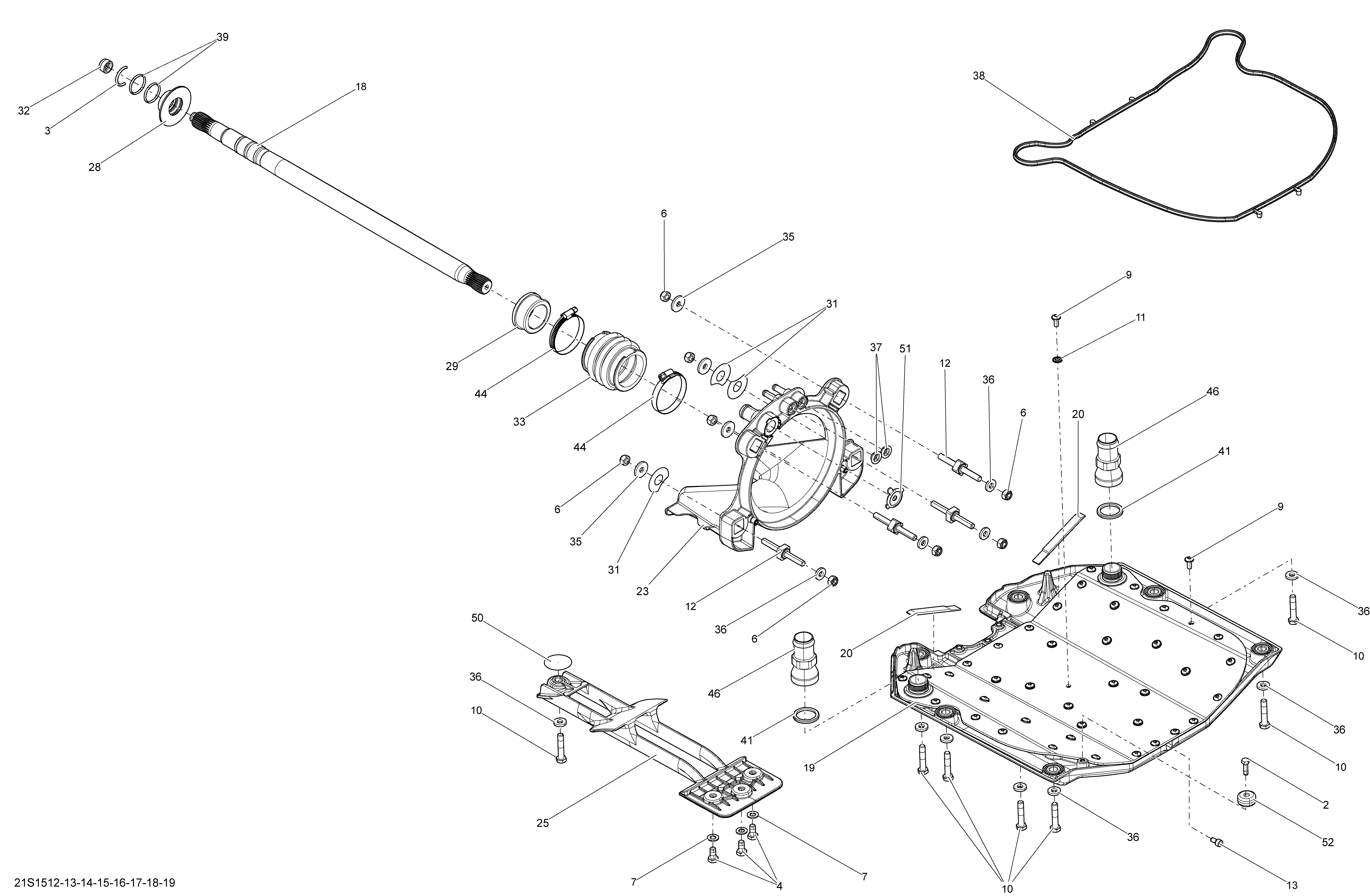

05- Propulsion _21S1517 для BRP WAKE 155 - 2015
-
№АртикулНазвание
-
2207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
3271001575 C-ClipC-Clip
-
4207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
10250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
11250200114 Sealing WasherSealing Washer
-
12250300046 Square StudSquare Stud
-
13250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
18271001724 Drive ShaftDrive Shaft
-
19271001860 Riding Plate Ass'yRiding Plate Ass'y
-
20293250087 Gasket, NeopreneGasket, Neoprene
-
23271001943 Pump SupportPump Support
-
25271001763 Pump GratePump Grate
-
28271001894 Support RingSupport Ring
-
29271001901 Carbon RingCarbon Ring
-
31272000053 Shim, 0.3 mmShim, 0.3 mm
-
32272000173 Drive Shaft PlugDrive Shaft Plug
-
33271001902 BellowBellow
-
35279000164 Flat WasherFlat Washer
-
36293050001 Flat WasherFlat Washer
-
37293250084 Watertight SealWatertight Seal
-
38293250235 SealSeal
-
39293300044 O-RingO-Ring
-
41293300121 O-RingO-Ring
-
44293650079 Norma Clamp. Engine SideNorma Clamp. Engine Side
-
44293650078 Norma Clamp. Pump SideNorma Clamp. Pump Side
-
46293710111 Straight Plastic FittingStraight Plastic Fitting
-
50293830047 Protector DiskProtector Disk
-
51271001903 ReducerReducer
-
52271001813 Anode ZincAnode Zinc
