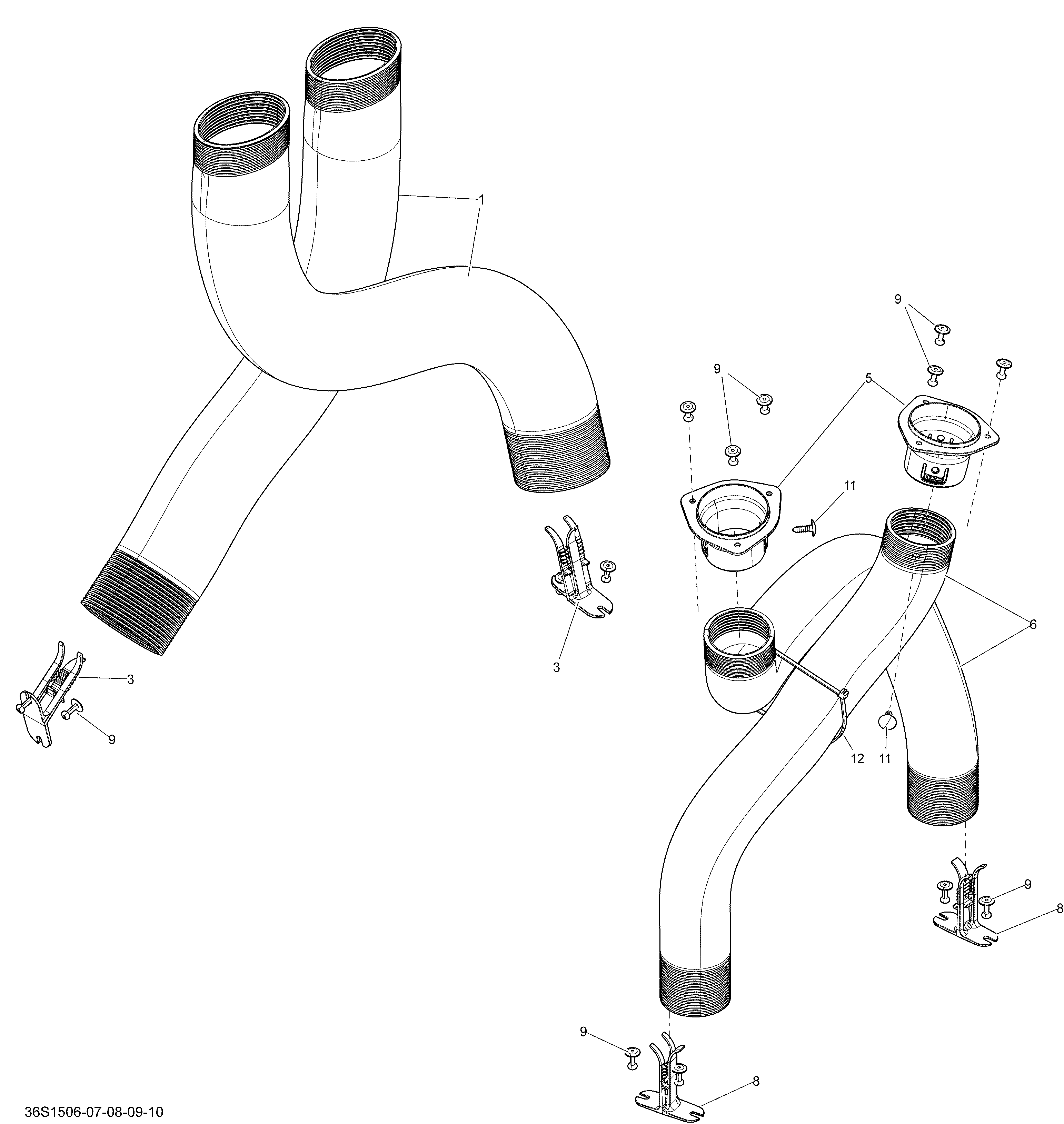

09- Ventilation _36S1506 для BRP RXT-X 260 & RS. 2015 - 2015
-
№АртикулНазвание
-
1237000044 Ventilation Hoses 3.5''Ventilation Hoses 3.5''
-
3237000045 Hose ClipHose Clip
-
5291002299 Ventilation AdaptorVentilation Adaptor
-
6291002515 Ventilation HosesVentilation Hoses
-
8291002527 Hose ClipHose Clip
-
9293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
11293730011 Dart, BlackDart, Black
-
12293750047 Tie Rap, 533 mmTie Rap, 533 mm
