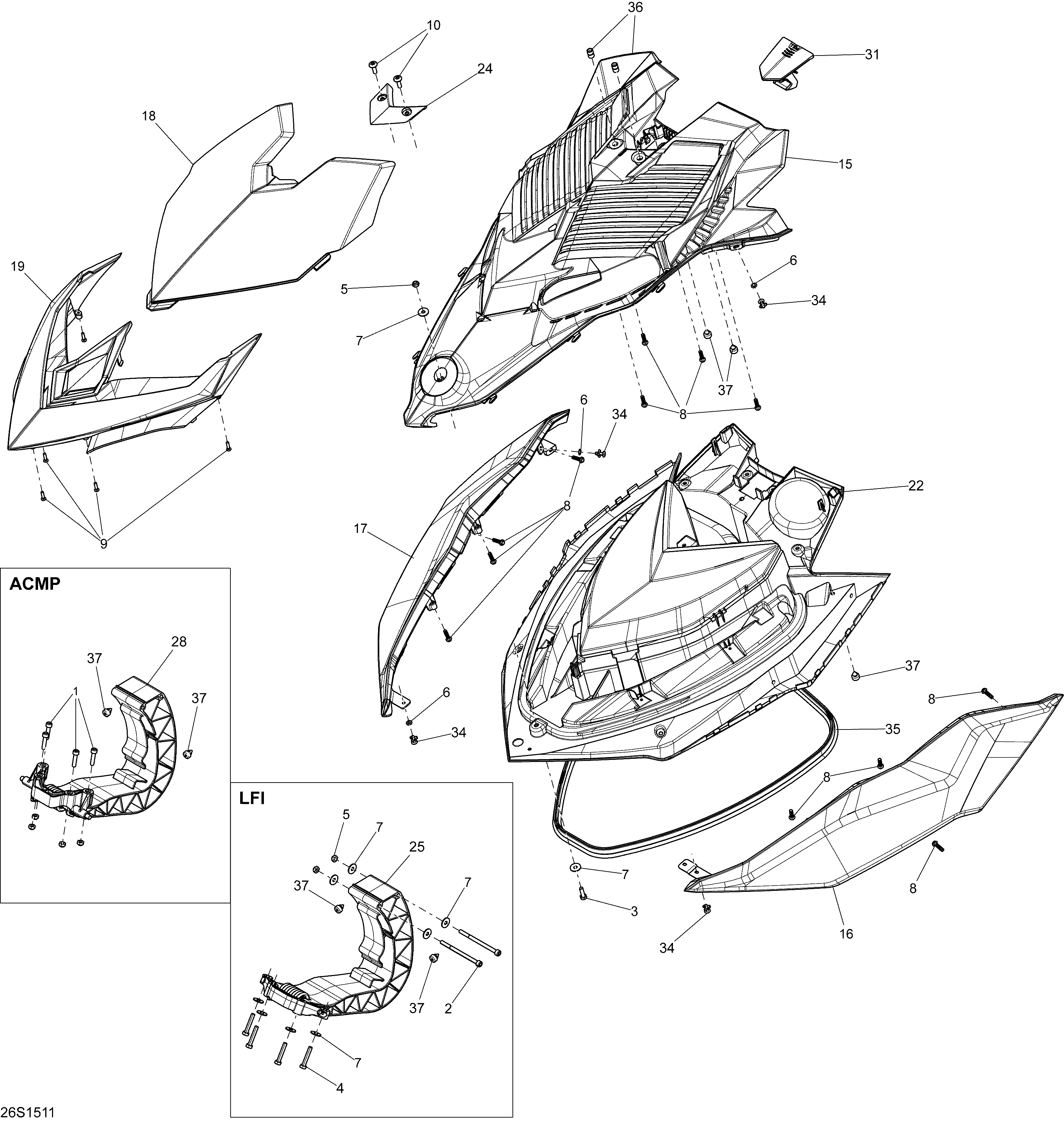

09- Front Cover _26S1511 для BRP RXP-X 260 & RS - 2015
-
№АртикулНазвание
-
1205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
2205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
3207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
4207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
6234051500 Flat Washer 5 mmFlat Washer 5 mm
-
7234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
9250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
10250000711 Torx Screw M6 X 20Torx Screw M6 X 20
-
15269501977 Storage CoverStorage Cover
-
16269502142 LH Storage Cover Flashing. Model Yellow/SilverLH Storage Cover Flashing. Model Yellow/Silver
-
16269501866 LH Storage Cover Flashing. Model Red/BlackLH Storage Cover Flashing. Model Red/Black
-
17269502143 RH Storage Cover Flashing. Model Yellow/SilverRH Storage Cover Flashing. Model Yellow/Silver
-
17269501867 RH Storage Cover Flashing. Model Red/BlackRH Storage Cover Flashing. Model Red/Black
-
18269501868 Yellow Deflector. Model Yellow/SilverYellow Deflector. Model Yellow/Silver
-
18269502009 Deflector. Model Red/BlackDeflector. Model Red/Black
-
19269502062 Front Cosmetic Ass'y. Model Yellow/SilverFront Cosmetic Ass'y. Model Yellow/Silver
-
19269502010 Front Cosmetic Ass'y. Model Red/BlackFront Cosmetic Ass'y. Model Red/Black
-
22269502046 Lower Storage CoverLower Storage Cover
-
24269501941 ClampClamp
-
25269501944 Hinge Ass'yHinge Ass'y
-
28269501944 Hinge Ass'yHinge Ass'y
-
31269700142 Latch LeverLatch Lever
-
34293150027 Avdel RivetAvdel Rivet
-
35293250047 Neoprene SealNeoprene Seal
-
37293830005 Rubber BumperRubber Bumper
