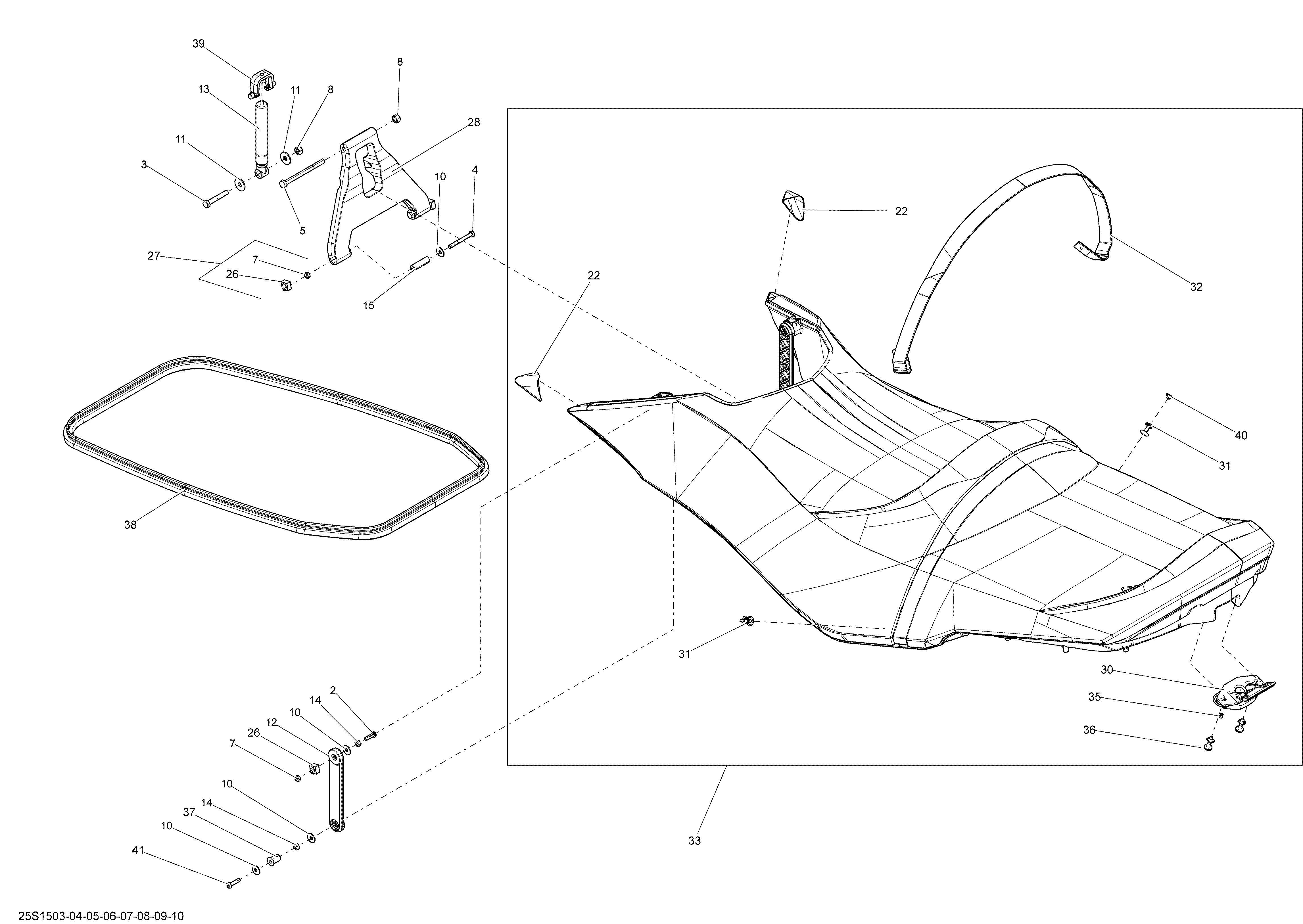

09- Seat _25S1508 для BRP GTX LTD 215 - 2015
-
№АртикулНазвание
-
2205462060 Socket Screw M6 X 20Socket Screw M6 X 20
-
4207265560 Hex. Screw M6 X 55, Scotch GripHex. Screw M6 X 55, Scotch Grip
-
5231085060 Hex. Screw M8 X 150Hex. Screw M8 X 150
-
7232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
8232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12296000372 Lateral ArmLateral Arm
-
14269001588 SpacerSpacer
-
15269001589 SpacerSpacer
-
13269001684 ShockShock
-
22269002537 LH Seat ProtectorLH Seat Protector
-
22269002538 RH Seat ProtectorRH Seat Protector
-
26269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
27269501166 Nut Housing Ass'yNut Housing Ass'y
-
28269501699 Center ArmCenter Arm
-
30269700116 Latch Ass'yLatch Ass'y
-
31293150067 RivetRivet
-
32269002536 Seat StrapSeat Strap
-
33269002825 Seat Ass'ySeat Ass'y
-
35293150143 Pop Rivet 1/8Pop Rivet 1/8
-
36293150151 Rivet 1/4''Rivet 1/4''
-
37250100150 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
38293200124 SealSeal
-
39269002077 End FittingEnd Fitting
-
40293720067 GrommetGrommet
-
41205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
