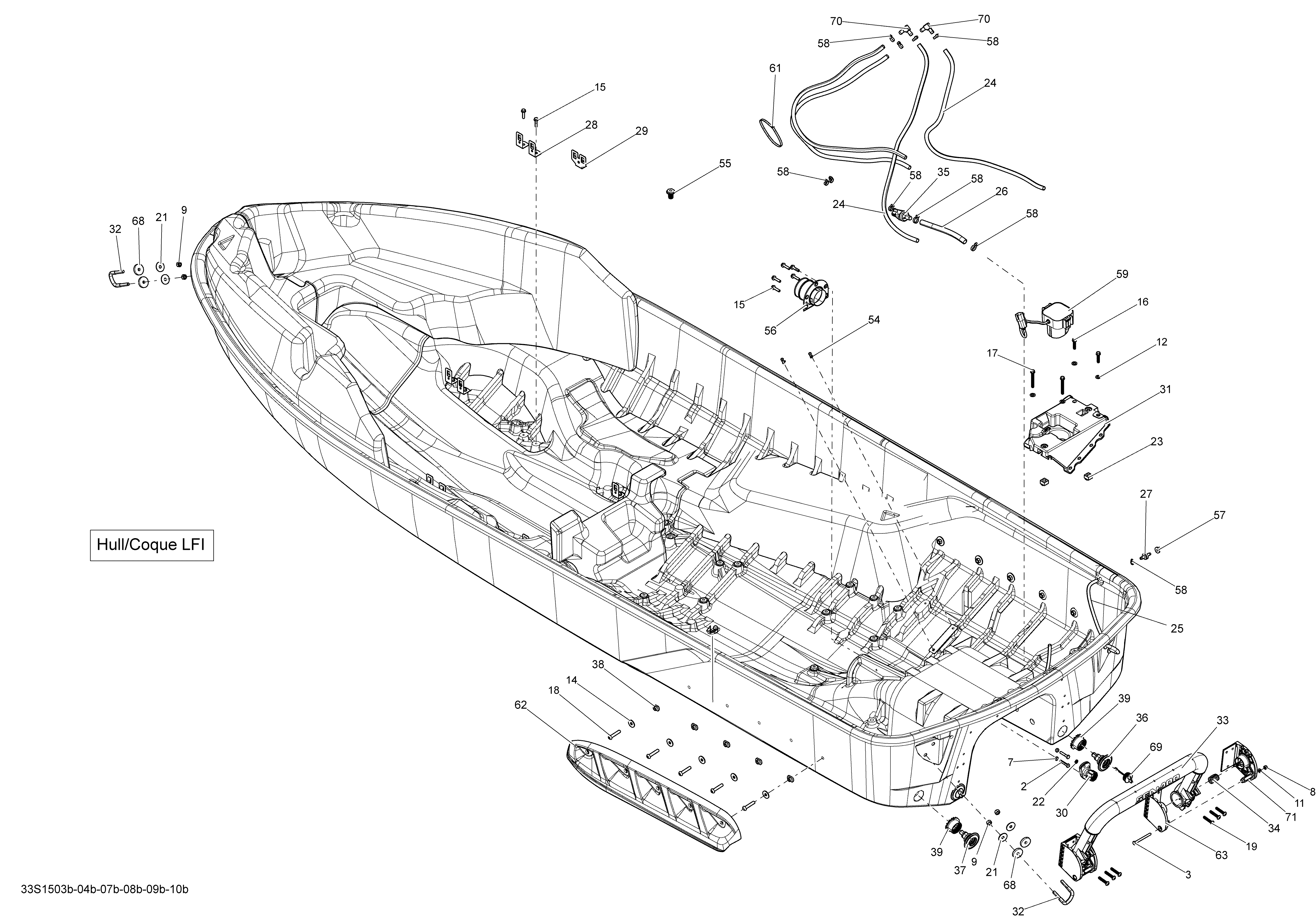

09- Hull LFI_33S1508b для BRP GTX LTD 215 - 2015
-
№АртикулНазвание
-
2207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
3207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
7232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
8232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
11234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
16243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
17243165560 Flanged Hex. Screw M6.81 X 55Flanged Hex. Screw M6.81 X 55
-
18250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
19250000468 Torx ScrewTorx Screw
-
22250200114 Sealing WasherSealing Washer
-
23269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
24415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
25275500446 Hose 6 mmHose 6 mm
-
26275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
27275500499 Check ValveCheck Valve
-
28275500743 Strap Clip 90°Strap Clip 90°
-
29275500798 Double Strap Clip 90°Double Strap Clip 90°
-
30277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
31278002343 Battery Base Ass'yBattery Base Ass'y
-
32292000933 U-ClampU-Clamp
-
33292001204 Overmolded BarOvermolded Bar
-
34292001259 SpringSpring
-
35292001310 Bailer Ass'yBailer Ass'y
-
36292001315 Drain Neck Ass'yDrain Neck Ass'y
-
37292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
38292001349 Spacer SponsonSpacer Sponson
-
39292001371 BushingBushing
-
54293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
55293450290 Insert Capuchon M8Insert Capuchon M8
-
56293450306 Hull InsertHull Insert
-
57293720029 GrommetGrommet
-
58293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
59278002954 Depth SensorDepth Sensor
-
61293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
62292001514 RH SponsonRH Sponson
-
62292001513 LH SponsonLH Sponson
-
63292001509 A Section SupportA Section Support
-
68293830037 Rubber WasherRubber Washer
-
69292001352 Plug Drain Ass'yPlug Drain Ass'y
-
70293710117 Elbow Fitting 90°Elbow Fitting 90°
-
71292001510 B Section SupportB Section Support
