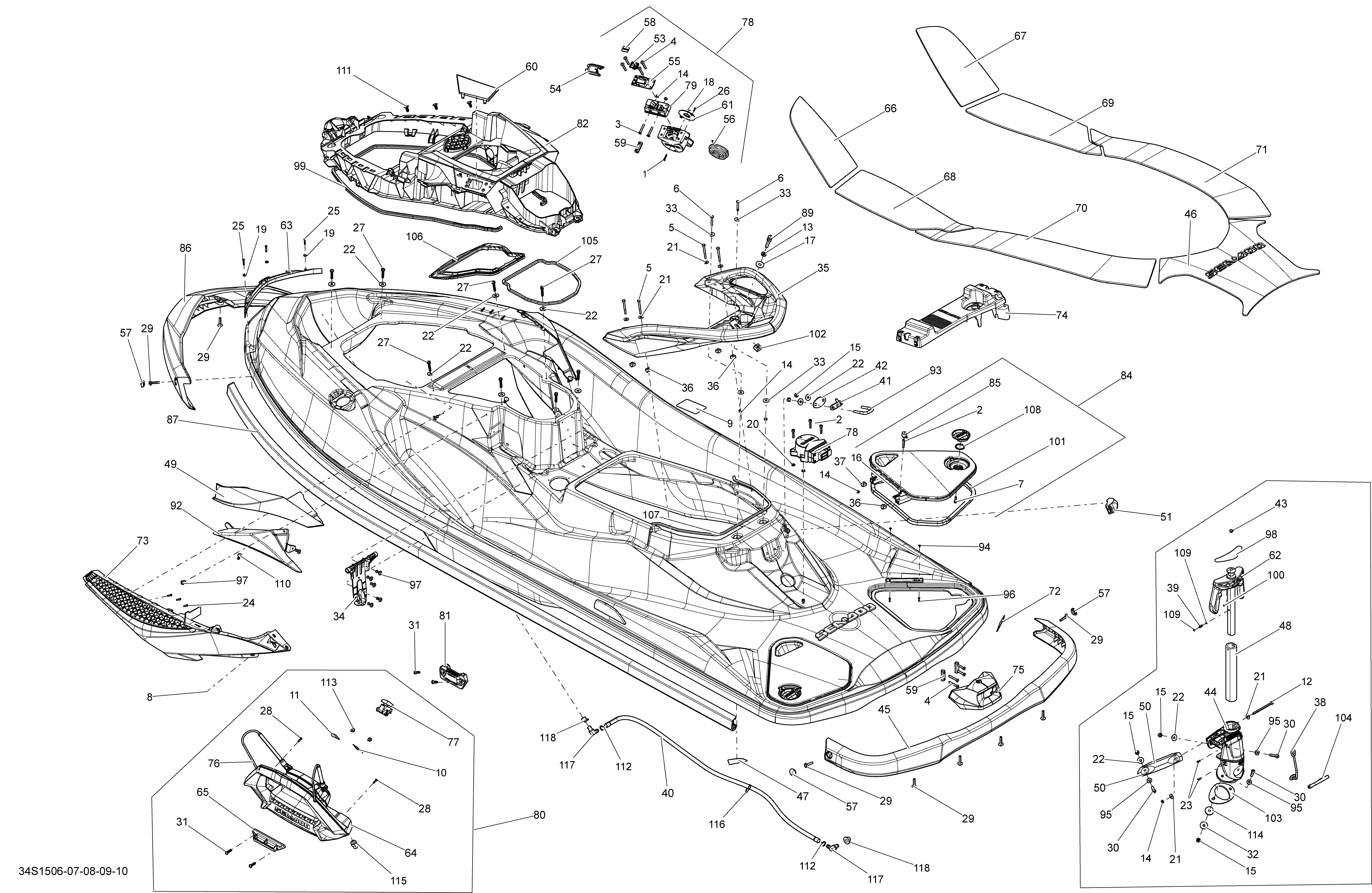

09- Body _34S1508 для BRP GTX LTD 215 - 2015
-
№АртикулНазвание
-
1204100049 Phillips Tapping Screw #8 X 1''Phillips Tapping Screw #8 X 1''
-
2205063060 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
3205364060 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
4205364560 Socket Screw Head M6 X 45Socket Screw Head M6 X 45
-
5207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
6207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
7211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
8211100002 Push NutPush Nut
-
9219903184 Caution Engine OilCaution Engine Oil
-
13232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
14232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
15232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
16233161600 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
17234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
18234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
19234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
20234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
21234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
22234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
23241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
24241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
24241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
25241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
25241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
26241731260 Oval Philipp Screw KA30 x 12Oval Philipp Screw KA30 x 12
-
27243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
29250000339 Socket Screw M6 X 12Socket Screw M6 X 12
-
33250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
34269002162 Mounting Case AbsorberMounting Case Absorber
-
35291004622 Black Rear HandleBlack Rear Handle
-
36269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
37269501166 Nut Housing Ass'yNut Housing Ass'y
-
40275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
41291002351 HookHook
-
42291001386 Finition Plate, BlackFinition Plate, Black
-
45291002592 Rear BumberRear Bumber
-
46291002625 Rear Plat-Form CarpetRear Plat-Form Carpet
-
47291002626 LH NonskidLH Nonskid
-
49291003759 LH Upper Body Cap CoverLH Upper Body Cap Cover
-
49291003760 RH Upper Body Cap CoverRH Upper Body Cap Cover
-
53291002726 ButtonButton
-
54291002727 Under CamUnder Cam
-
55291002729 Rope GuideRope Guide
-
56291002733 Rope 3/16''Rope 3/16''
-
57291002744 Bumber CapBumber Cap
-
58291002754 Button CapButton Cap
-
59291002755 Double Cage Nut Ass'yDouble Cage Nut Ass'y
-
60291002724 Front Rewinder CoverFront Rewinder Cover
-
61291002762 Inside CoverInside Cover
-
63291002818 Deck NoseDeck Nose
-
66291003580 LH Front CarpetLH Front Carpet
-
67291003581 RH Front CarpetRH Front Carpet
-
68291003458 LH Center CarpetLH Center Carpet
-
69291003459 RH Center CarpetRH Center Carpet
-
70291003460 LH Rear CarpetLH Rear Carpet
-
71291003461 RH Rear CarpetRH Rear Carpet
-
72291002937 RH NonskidRH Nonskid
-
73291004033 RH Front Cover Ass'yRH Front Cover Ass'y
-
73291004038 LH Front Cover Ass'yLH Front Cover Ass'y
-
74291002947 Lower Deck Ass'yLower Deck Ass'y
-
75291002948 Rewind CoverRewind Cover
-
78291004019 Retractable Rope Ass'yRetractable Rope Ass'y
-
79291003023 Jam Cleat System Ass'yJam Cleat System Ass'y
-
82291003680 Front ModuleFront Module
-
84291003686 LH Access CoverLH Access Cover
-
84291003687 RH Access CoverRH Access Cover
-
85291003688 Rubber BumperRubber Bumper
-
86291003836 Front BumperFront Bumper
-
87291003872 Lateral BumperLateral Bumper
-
89291003878 Seat StudSeat Stud
-
92291003983 Magnesium RH Seat PadMagnesium RH Seat Pad
-
92291003984 Magnesium LH Seat PadMagnesium LH Seat Pad
-
93292000933 U-ClampU-Clamp
-
94293000014 Black Snap CapBlack Snap Cap
-
96293150016 Rivet 1/8''Rivet 1/8''
-
97293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
99293250259 GasketGasket
-
101293200133 Neoprene SealNeoprene Seal
-
102271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
105293250200 Neoprene SealNeoprene Seal
-
106293250365 Neoprene SealNeoprene Seal
-
107293250218 GasketGasket
-
108293300121 O-RingO-Ring
-
110293730006 Black DartBlack Dart
-
111293730010 Black DartBlack Dart
-
112293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
116414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
117414523600 Elbow FittingElbow Fitting
-
118513033435 GrommetGrommet
