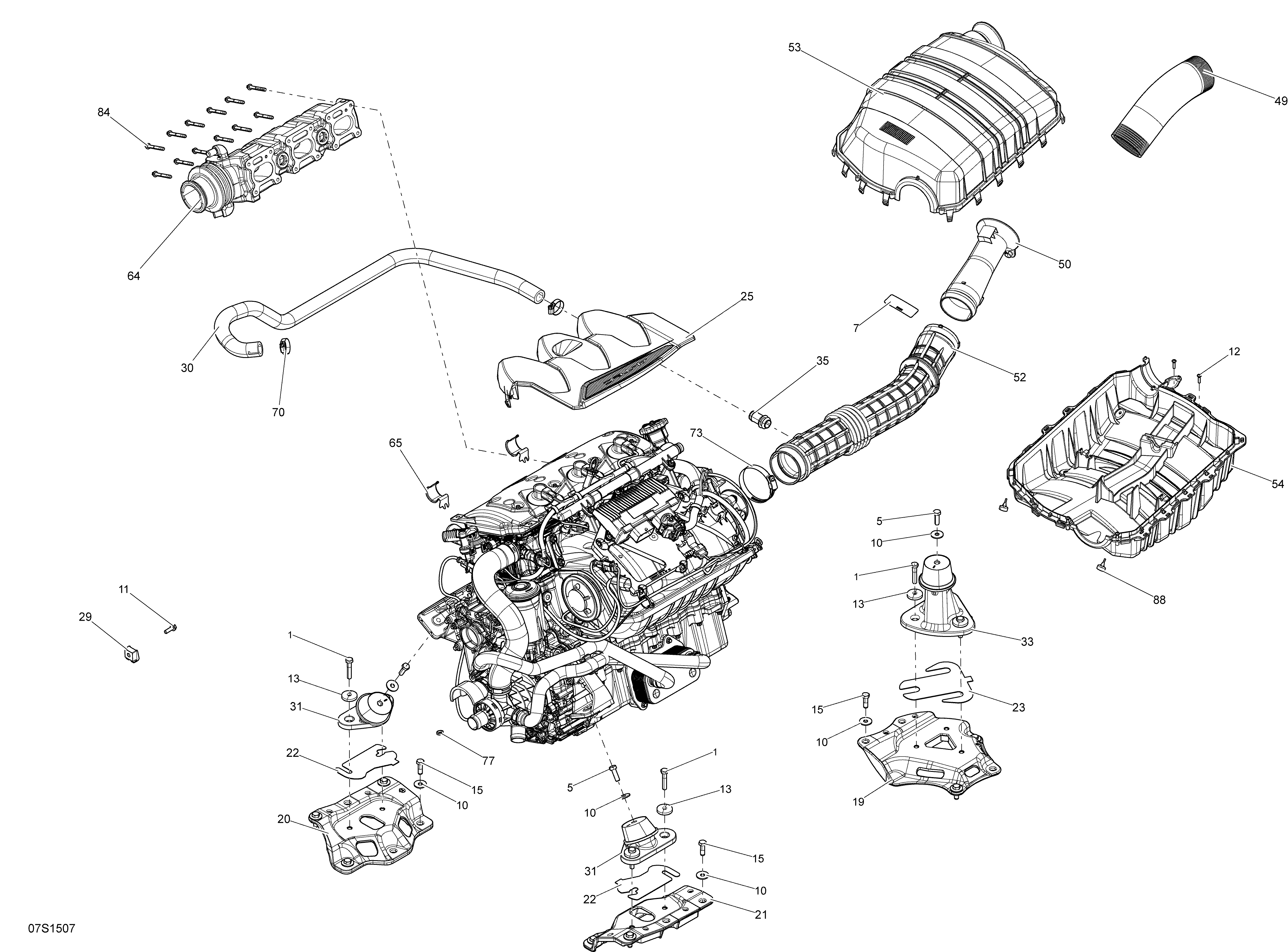

01- Engine _07S1507 для BRP GTX 155 - 2015
‹-+›
-
№АртикулНазвание
-
1207284060 Hex. Screw M8 X 40, Scotch Grip. Model-Hull LFIHex. Screw M8 X 40, Scotch Grip. Model-Hull LFI
-
1250000782 Hexagonal Head Cap Screw M8 X 45. Model-Hull ACMPHexagonal Head Cap Screw M8 X 45. Model-Hull ACMP
-
5207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
7219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
10234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
12250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
13250200018 Cone WasherCone Washer
-
15250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
19270000767 SpacerSpacer
-
20270000763 SpacerSpacer
-
21270000766 SpacerSpacer
-
22270000762 Shim 1.3 mmShim 1.3 mm
-
23270000770 Shim 1.3 mmShim 1.3 mm
-
25270000804 Engine CoverEngine Cover
-
29270000946 Holding Strap. Model-Hull ACMPHolding Strap. Model-Hull ACMP
-
29270000854 Holding Strap. Model-Hull LFIHolding Strap. Model-Hull LFI
-
30270000949 Formed HoseFormed Hose
-
31270000882 Rubber MountRubber Mount
-
33270000886 Rubber MountRubber Mount
-
35273000234 BreatherBreather
-
49273000290 Air Silencer HoseAir Silencer Hose
-
50273000291 Intake HoseIntake Hose
-
52273000295 Hose ConnectorHose Connector
-
53273000297 Air Silencer UpperAir Silencer Upper
-
54273000298 Air Silencer LowAir Silencer Low
-
64274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
65275500664 RetainerRetainer
-
70293650051 Tridon Gear ClampTridon Gear Clamp
-
73293650179 Tridon ClampTridon Clamp
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
84420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
88708000759 Rubber StopperRubber Stopper
