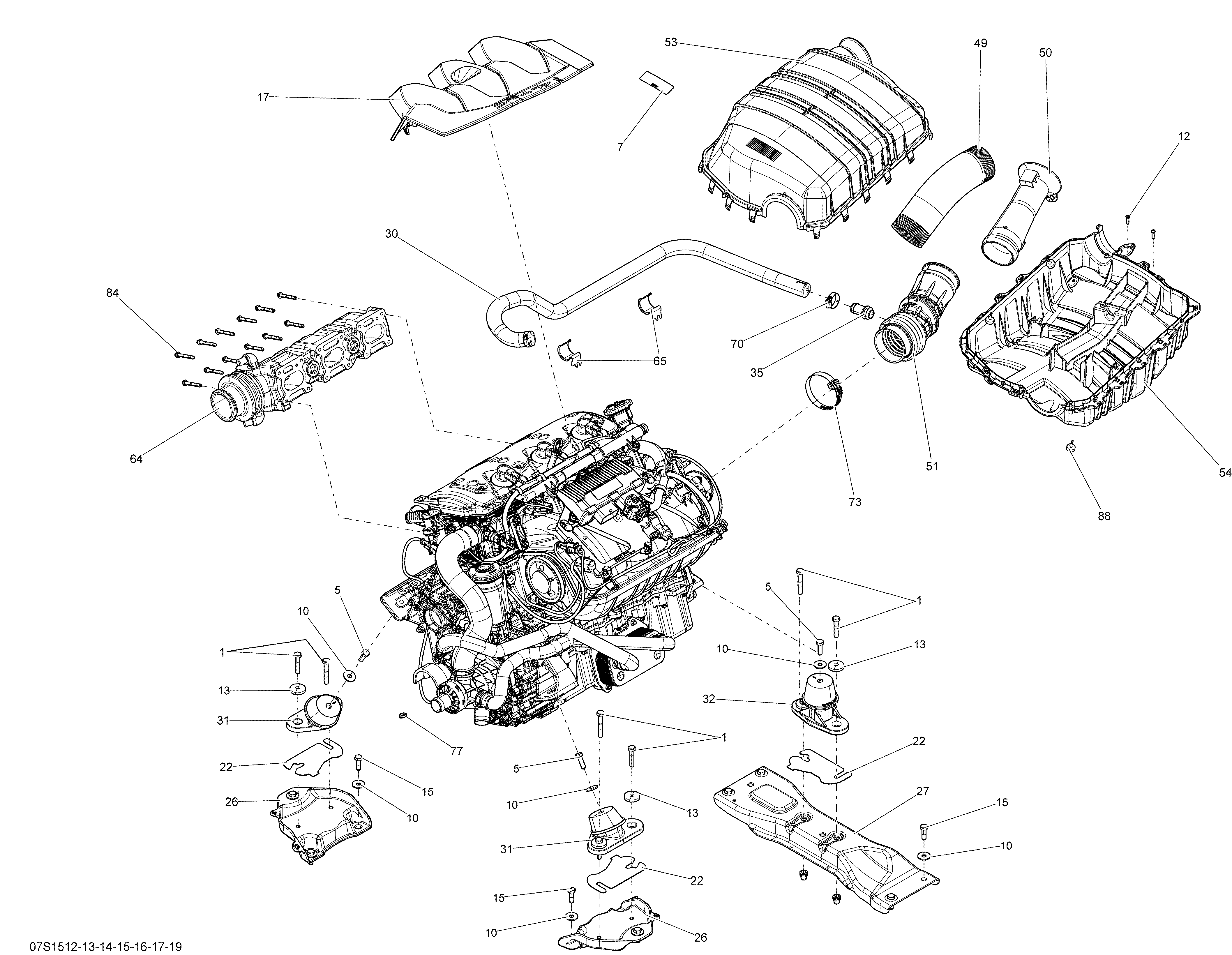

01- Engine _07S1514 для BRP GTI SE 130 - 2015

  • №
    Артикул
    Название
  • 1
    207284060 Hex. Screw M8 X 40, Scotch Grip. Hull LFI
    Hex. Screw M8 X 40, Scotch Grip. Hull LFI
  • 1
    250000782 Hexagonal Head Cap Screw M8 X 45. Hull ACMP
    Hexagonal Head Cap Screw M8 X 45. Hull ACMP
  • 5
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 7
    219903177 Notice Decal, Air Silencer
    Notice Decal, Air Silencer
  • 10
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 12
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 13
    250200018 Cone Washer
    Cone Washer
  • 15
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 17
    270000680 Engine Cover
    Engine Cover
  • 22
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 26
    270000815 Rear Spacer
    Rear Spacer
  • 27
    270000818 Front Spacer
    Front Spacer
  • 30
    270000949 Formed Hose
    Formed Hose
  • 31
    270000882 Rubber Mount
    Rubber Mount
  • 32
    270000885 Rubber Mount
    Rubber Mount
  • 35
    273000234 Breather
    Breather
  • 49
    273000290 Air Silencer Hose
    Air Silencer Hose
  • 50
    273000291 Intake Hose
    Intake Hose
  • 51
    273000292 Hose Connector
    Hose Connector
  • 53
    273000297 Air Silencer Upper
    Air Silencer Upper
  • 54
    273000298 Air Silencer Low
    Air Silencer Low
  • 64
    274001553 Engine Exhaust Manifold
    Engine Exhaust Manifold
  • 65
    275500664 Retainer
    Retainer
  • 70
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 73
    293650179 Tridon Clamp
    Tridon Clamp
  • 77
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 84
    420641198 Flanged Torx Screw M6 X 45
    Flanged Torx Screw M6 X 45
  • 88
    708000759 Rubber Stopper
    Rubber Stopper
