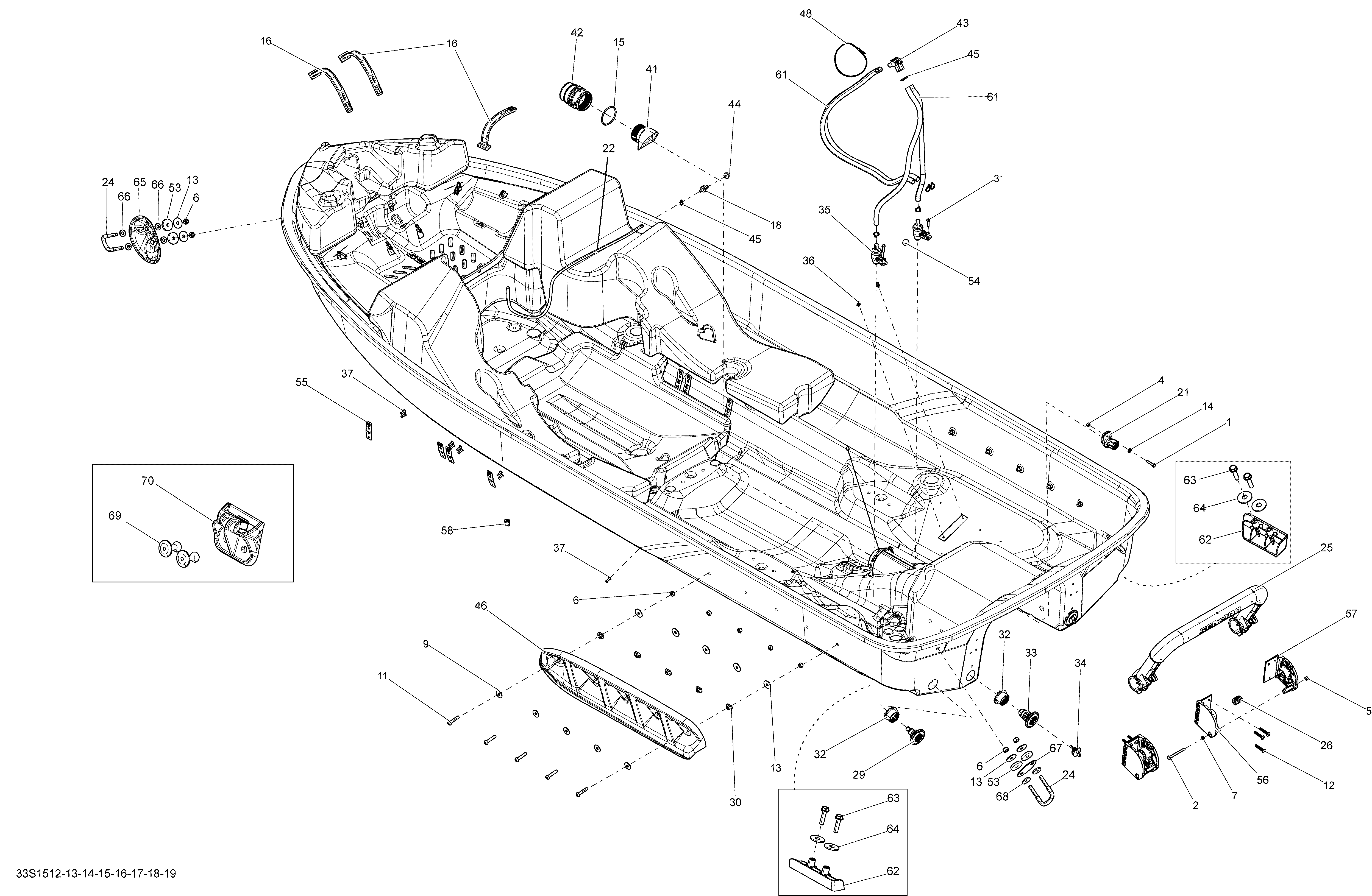

09- Hull ACMP_33S1516 для BRP GTI LTD 155 - 2015
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
3211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
12250000468 Torx ScrewTorx Screw
-
13250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14250200114 Sealing WasherSealing Washer
-
15267000477 O-RingO-Ring
-
16269500408 StrapStrap
-
18275500499 Check ValveCheck Valve
-
21277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
22275500446 Hose 6 mmHose 6 mm
-
24292000933 U-ClampU-Clamp
-
25292001204 Overmolded BarOvermolded Bar
-
26292001259 SpringSpring
-
29292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
30292001349 Spacer SponsonSpacer Sponson
-
32292001371 BushingBushing
-
33292001580 Drain Ass'yDrain Ass'y
-
34292001583 Plug Ass'yPlug Ass'y
-
35292001636 Bailer Pick-up Ass'yBailer Pick-up Ass'y
-
36293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
37293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293450335 Hull InsertHull Insert
-
42293450339 Hull InsertHull Insert
-
43293710152 Fitting Elbow 90°Fitting Elbow 90°
-
44293720029 GrommetGrommet
-
45293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
46292001878 RH SponsonRH Sponson
-
46292001877 LH SponsonLH Sponson
-
48293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
53293830037 Rubber WasherRubber Washer
-
54293830080 Floating BallFloating Ball
-
55293850024 Strap ClipStrap Clip
-
56292001509 A Section SupportA Section Support
-
57292001510 B Section SupportB Section Support
-
58293750026 Tie Rap MountTie Rap Mount
-
61275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
62292001811 LH Trim TabLH Trim Tab
-
62292001812 RH Trim TabRH Trim Tab
-
63243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
64234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
65292001837 Black ShellBlack Shell
-
66293050001 Flat WasherFlat Washer
-
67291001386 Finition Plate, BlackFinition Plate, Black
-
68279000164 Flat WasherFlat Washer
-
69293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
70270000933 Strap RetainingStrap Retaining
