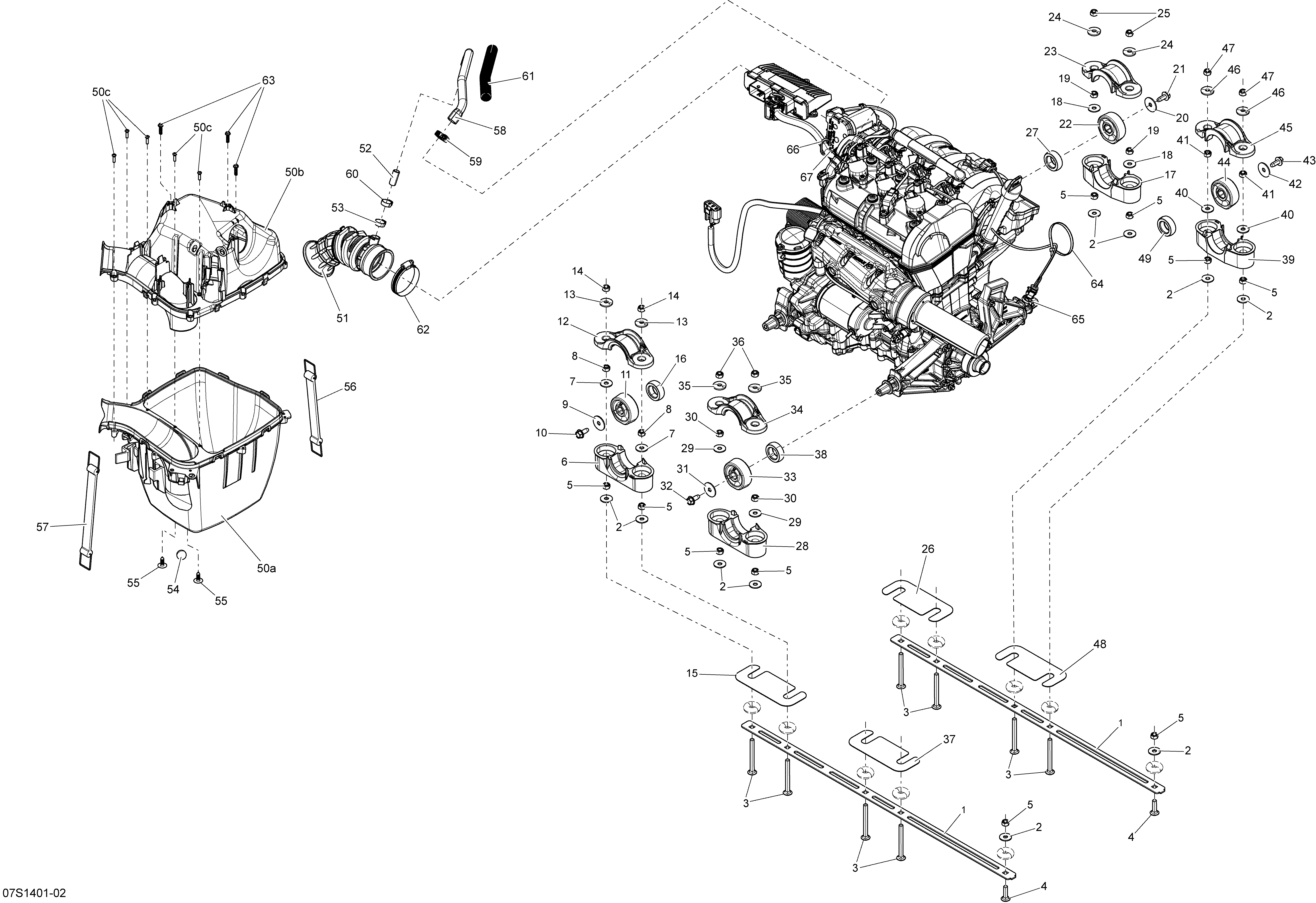

01- Engine And Air Intake Silencer _07S1401 для BRP SPARK ACE 900 HO (2up And 3up) - 2014
-
№АртикулНазвание
-
1270000862 Retaining PlateRetaining Plate
-
2234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
3207789060 Carriage Bolt M8 X 90Carriage Bolt M8 X 90
-
4207783060 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
5232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
6270000858 Mount BaseMount Base
-
7234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
8232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
9250200130 Flat Washer 8 mmFlat Washer 8 mm
-
10250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
11270000852 Rubber MountRubber Mount
-
12270000859 Mount ClampMount Clamp
-
13250200137 Conical WasherConical Washer
-
14232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
15270000865 Shim 1.3 mmShim 1.3 mm
-
16270000863 Rubber StopperRubber Stopper
-
17270000858 Mount BaseMount Base
-
18234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
20250200130 Flat Washer 8 mmFlat Washer 8 mm
-
21250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
22270000852 Rubber MountRubber Mount
-
23270000859 Mount ClampMount Clamp
-
24250200137 Conical WasherConical Washer
-
25232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
26270000865 Shim 1.3 mmShim 1.3 mm
-
27270000863 Rubber StopperRubber Stopper
-
28270000858 Mount BaseMount Base
-
29234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
30232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
31250200130 Flat Washer 8 mmFlat Washer 8 mm
-
32250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
33270000852 Rubber MountRubber Mount
-
34270000859 Mount ClampMount Clamp
-
35250200137 Conical WasherConical Washer
-
36232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
37270000865 Shim 1.3 mmShim 1.3 mm
-
38270000863 Rubber StopperRubber Stopper
-
39270000858 Mount BaseMount Base
-
40234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
41232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
42250200130 Flat Washer 8 mmFlat Washer 8 mm
-
43250000645 Forming Hex Screw M8 X 20Forming Hex Screw M8 X 20
-
44270000852 Rubber MountRubber Mount
-
45270000859 Mount ClampMount Clamp
-
46250200137 Conical WasherConical Washer
-
47232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
48270000865 Shim 1.3 mmShim 1.3 mm
-
49270000863 Rubber StopperRubber Stopper
-
50a273000314 Airbox BaseAirbox Base
-
50b273000315 Airbox CoverAirbox Cover
-
50c250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
51273000318 Connector HoseConnector Hose
-
52270000857 Union-HoseUnion-Hose
-
53293650011 Oetiker ClampOetiker Clamp
-
54293830080 Floating BallFloating Ball
-
55293730011 Dart, BlackDart, Black
-
56515176044 Battery StrapBattery Strap
-
57293850087 Fuel Tank StrapFuel Tank Strap
-
58270000856 Formed HoseFormed Hose
-
59293650172 Tridon Gear ClampTridon Gear Clamp
-
60293650011 Oetiker ClampOetiker Clamp
-
61415080000 Tubing 16 mmTubing 16 mm
-
62293650023 Tridon ClampTridon Clamp
-
63241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
64293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
65293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
66414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
67414115200 Tie-Rap 180 mmTie-Rap 180 mm
