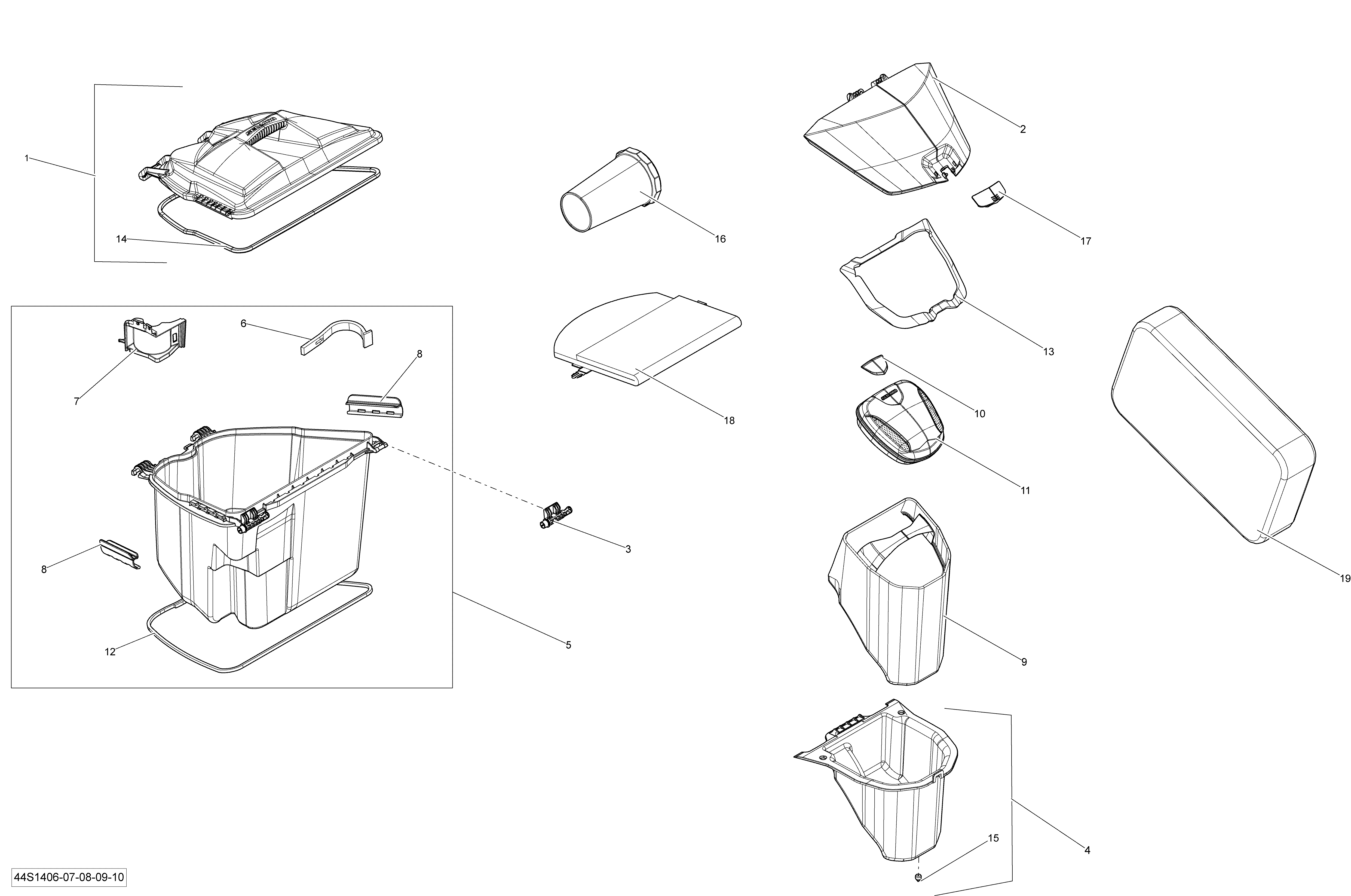

09- Storage Compartments _44S1410 для BRP RXT 260 & RS - 2014
-
№АртикулНазвание
-
1264000009 Storage Bin Cover Ass'yStorage Bin Cover Ass'y
-
2264000082 White Glove Door, STDWhite Glove Door, STD
-
3264000024 LatchLatch
-
4264000031 Glove Box Ass'yGlove Box Ass'y
-
5264000089 Storage Tray Ass'yStorage Tray Ass'y
-
6269500408 StrapStrap
-
7269501501 Extinguisher SupportExtinguisher Support
-
8269501609 ClipClip
-
12293250161 GasketGasket
-
13293250204 GasketGasket
-
14293250210 Neoprene SealNeoprene Seal
-
15293830005 Rubber BumperRubber Bumper
-
17264000091 Latch, BlackLatch, Black
