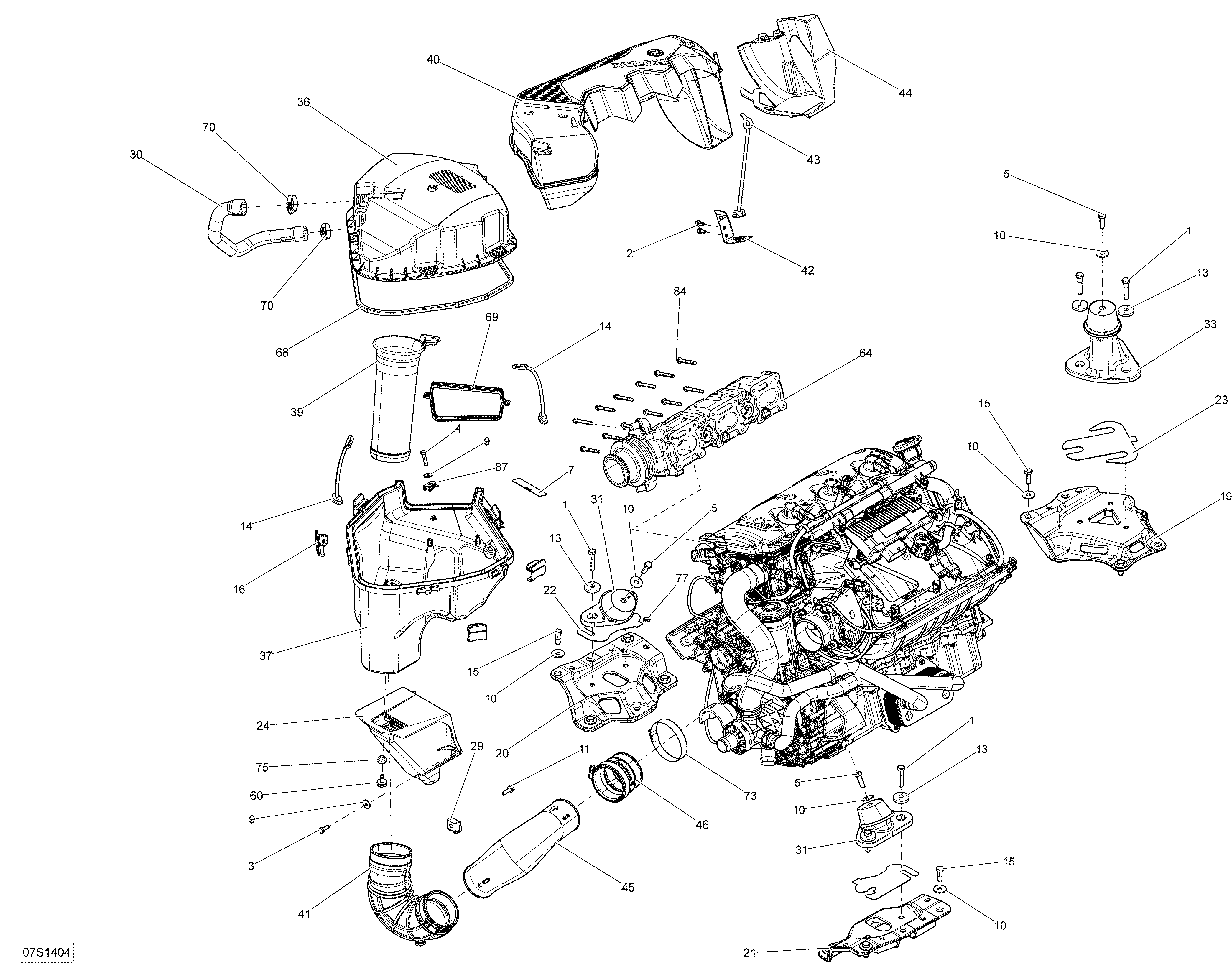

01- Engine _07S1404 для BRP GTX S 155 - 2014
-
№АртикулНазвание
-
1207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
2207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
3207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
4207362560 Hex. Screw M6 X 25, Scotch GripHex. Screw M6 X 25, Scotch Grip
-
5207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
7219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
9234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
13250200018 Cone WasherCone Washer
-
14269501299 StrapStrap
-
15250000525 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
16269501718 ClipClip
-
19270000767 SpacerSpacer
-
20270000763 SpacerSpacer
-
21270000766 SpacerSpacer
-
22270000762 Shim 1.3 mmShim 1.3 mm
-
23270000770 Shim 1.3 mmShim 1.3 mm
-
24270000791 Air Box SupportAir Box Support
-
29270000854 Strap AnchorStrap Anchor
-
30270000807 Formed HoseFormed Hose
-
31270000882 Rubber MountRubber Mount
-
33270000886 Rubber MountRubber Mount
-
36273000249 Air Silencer UpperAir Silencer Upper
-
37273000250 Air Silencer LowAir Silencer Low
-
39273000252 Intake HoseIntake Hose
-
40273000253 Intake TubeIntake Tube
-
41273000257 Connector HoseConnector Hose
-
42273000260 Air Box BracketAir Box Bracket
-
43273000261 StrapStrap
-
44273000271 DeflectorDeflector
-
45273000327 Hose IntakeHose Intake
-
46273000277 Intake FittingIntake Fitting
-
60275500454 Check ValveCheck Valve
-
64274001504 Exhaust ManifoldExhaust Manifold
-
68293200123 Neoprene SealNeoprene Seal
-
69293250190 SealSeal
-
70293650051 Tridon Gear ClampTridon Gear Clamp
-
73293650179 Tridon ClampTridon Clamp
-
75293720064 GrommetGrommet
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
84420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
87420942108 Panel Nut M6 X 1Panel Nut M6 X 1
