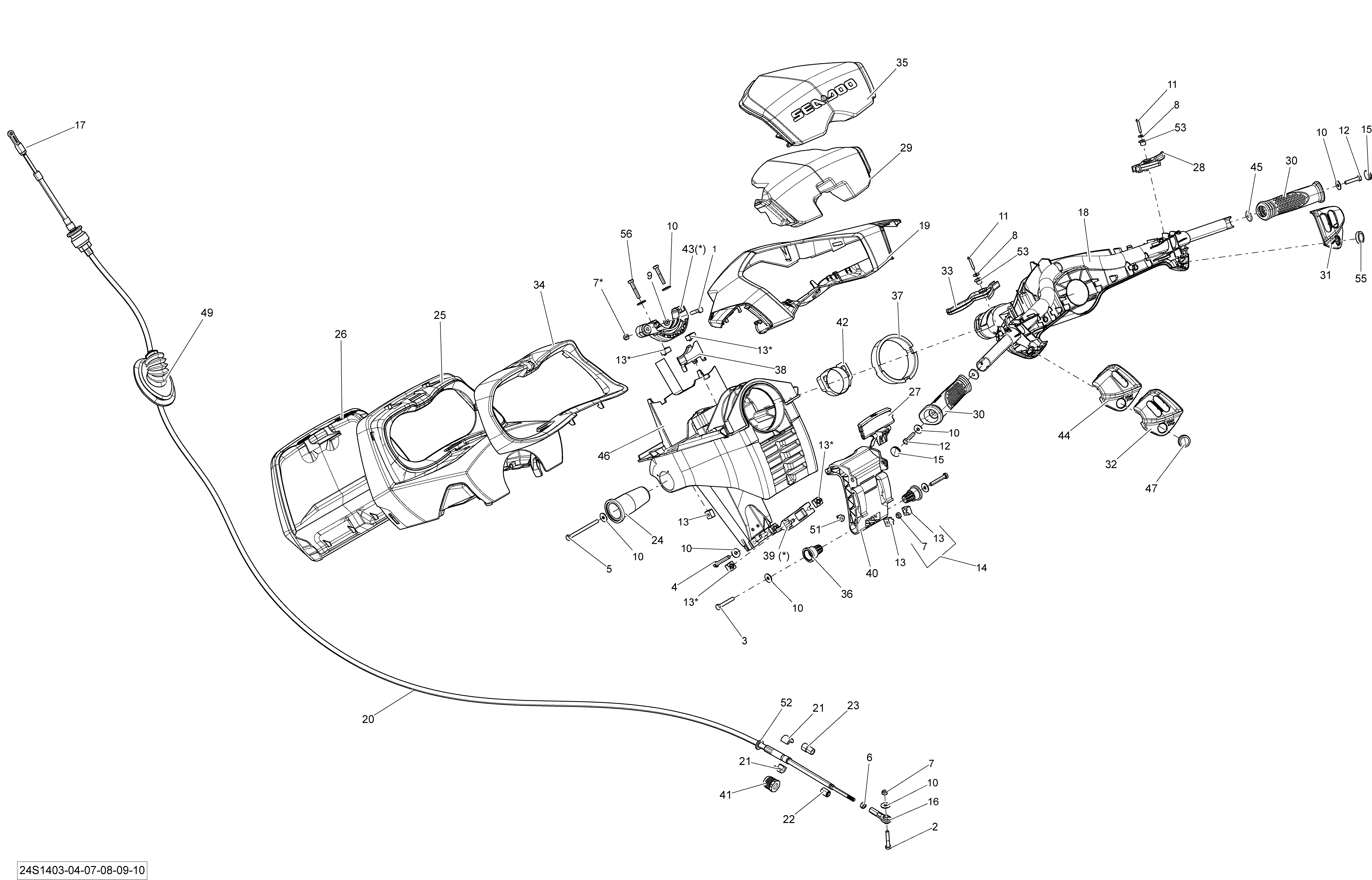

07- Steering _24S1403 для BRP GTX LTD iS 260 - 2014
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
3207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
4207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
5207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
6211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
7232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
8234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
9234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
12250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
13269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
14269501166 Nut Housing Ass'yNut Housing Ass'y
-
15277000203 Cap, BlackCap, Black
-
16277000775 Ball JointBall Joint
-
17277001180 Ball JointBall Joint
-
18277001596 SteeringSteering
-
19277001922 Steering CoverSteering Cover
-
20277001602 Steering CableSteering Cable
-
21277001527 Half RingHalf Ring
-
22277001582 Small BootSmall Boot
-
23277001583 Large BootLarge Boot
-
24277001605 Steering Support PivotSteering Support Pivot
-
25277001612 Gauge SupportGauge Support
-
26277001613 Gauge Support CoverGauge Support Cover
-
27277001616 LockLock
-
28277001620 Throttle HandleThrottle Handle
-
29277001621 Top FoamTop Foam
-
30277001624 Handle GripHandle Grip
-
31277001625 RH Housing CoverRH Housing Cover
-
32277001626 LH Housing CoverLH Housing Cover
-
33277001629 Reverse HandleReverse Handle
-
34277001630 Gauge Trim, BlackGauge Trim, Black
-
35277001886 Steering Pad, MagnesiumSteering Pad, Magnesium
-
36277001652 PivotPivot
-
37277001653 Wear RingWear Ring
-
38277001654 SpacerSpacer
-
39277001655 Thrust Support Ass'yThrust Support Ass'y
-
40277001658 Handle Ass'yHandle Ass'y
-
41277001729 Steering Cable LockSteering Cable Lock
-
42277001741 Wear RingWear Ring
-
43277001779 Support Ass'ySupport Ass'y
-
45277001863 Insert Grip HandleInsert Grip Handle
-
46277001896 Steering SupportSteering Support
-
47277001887 Knob Switch, RedKnob Switch, Red
-
49293720083 GrommetGrommet
-
51293830005 Rubber BumperRubber Bumper
-
52293830063 Rubber WasherRubber Washer
-
53293900091 BushingBushing
-
55277001888 Knob Switch, GreyKnob Switch, Grey
-
56207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
