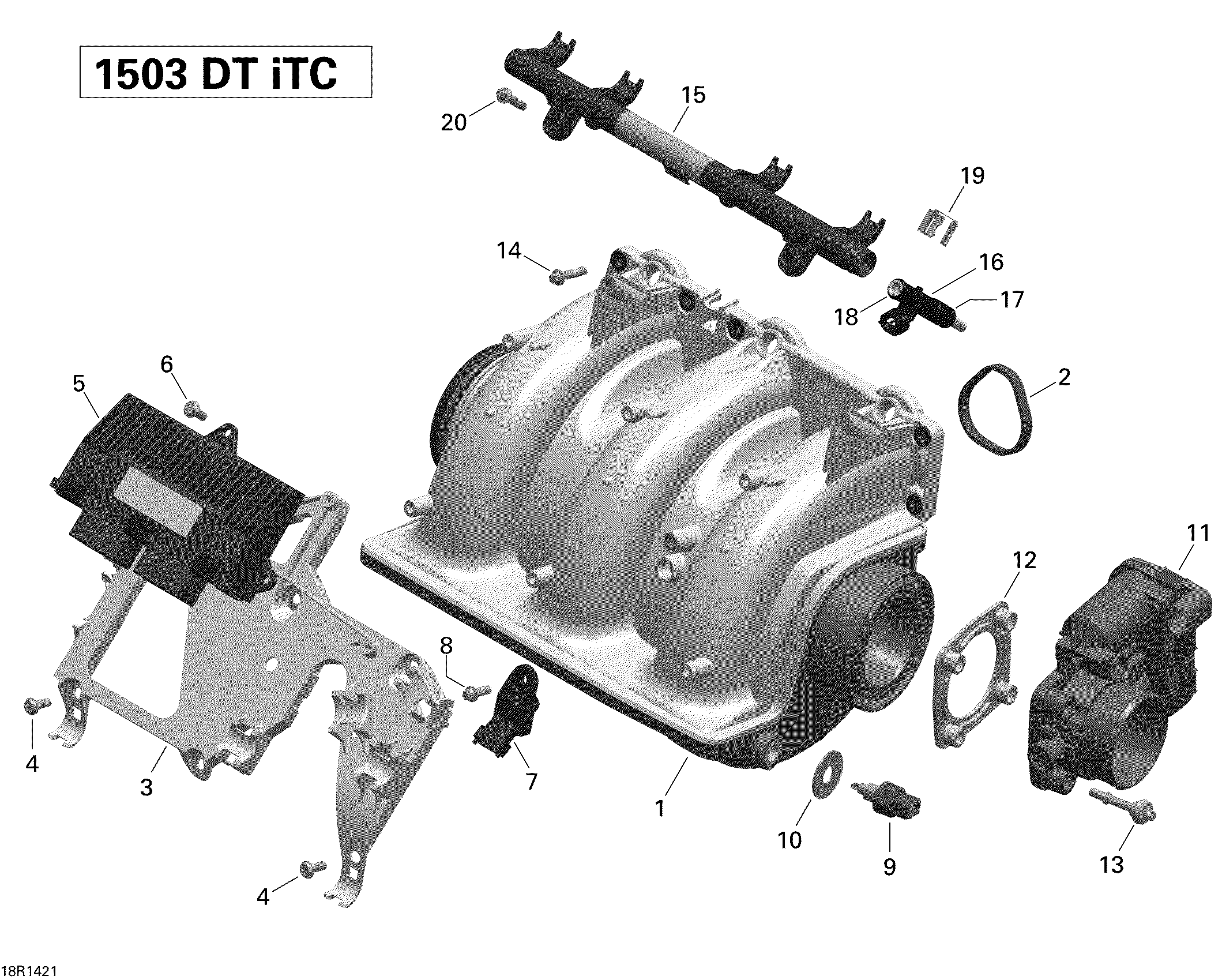

02- Air Intake Manifold And Throttle Body для BRP GTS 130 & Rental - 2014
-
№АртикулНазвание
-
1420867921 Air Intake Manifold. Includes 1 to 2Air Intake Manifold. Includes 1 to 2
-
2420950740 GasketGasket
-
3420460842 Base PlateBase Plate
-
4420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
5420666378 Electronic BoxElectronic Box
-
6420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420274057 Pressure SensorPressure Sensor
-
8420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
9420222423 Temperature SensorTemperature Sensor
-
10420227987 Thrust WasherThrust Washer
-
11420892590 Throttle BodyThrottle Body
-
12420950792 Rubber GasketRubber Gasket
-
13420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
14420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420874396 Fuel RailFuel Rail
-
16420874836 Fuel Injector. Includes 16 to 18Fuel Injector. Includes 16 to 18
-
17420431890 O-RingO-Ring
-
18420631220 O-RingO-Ring
-
19420853030 ClipClip
-
20420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
