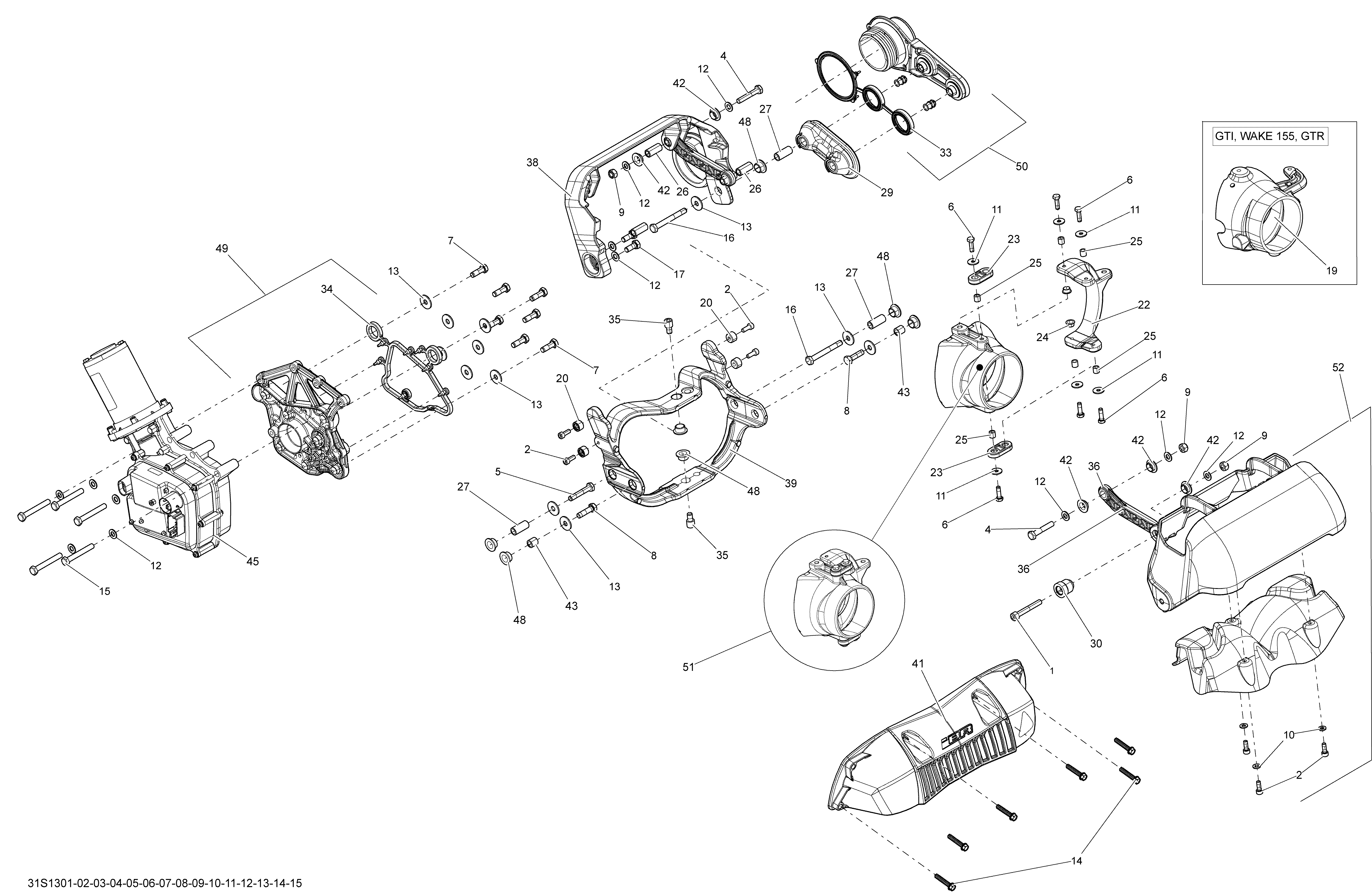

05- Reverse для BRP WAKE 155 - 2013
-
№АртикулНазвание
-
1205085560 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
2205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
4207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
5207284560 Hex. Screw S. Grip M8 X 45Hex. Screw S. Grip M8 X 45
-
6207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
7207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
8207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
9232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
11234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
12234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
15250000187 Hex. Screw M8 X 60, Scotch GripHex. Screw M8 X 60, Scotch Grip
-
16250000506 Hex. Screw M8 X 70, Scotch GripHex. Screw M8 X 70, Scotch Grip
-
17250000595 Hex Screw S.Grip M8 X 20Hex Screw S.Grip M8 X 20
-
19267000732 Steer. Nozzle, Black. GTI, GTR, WAKE 155Steer. Nozzle, Black. GTI, GTR, WAKE 155
-
20268000045 Friction SleeveFriction Sleeve
-
22268000148 Nozzle Lever, BlackNozzle Lever, Black
-
23268000058 Direction Lever ArmDirection Lever Arm
-
25268000060 SpacerSpacer
-
26268000182 SpacerSpacer
-
27268000063 SpacerSpacer
-
29268000085 RH Support PlateRH Support Plate
-
30268000099 BushingBushing
-
33268000105 RH Formed SealRH Formed Seal
-
34268000129 LH Formed SealLH Formed Seal
-
35268000141 Socket Head Screw M8 X 13Socket Head Screw M8 X 13
-
36268000145 Linkage ArmLinkage Arm
-
38268000152 ''U'' Arm, Black''U'' Arm, Black
-
39268000155 Trimming Ring, BlackTrimming Ring, Black
-
41268000162 GuardGuard
-
42271000321 Venturi BushingVenturi Bushing
-
43271001039 SpacerSpacer
-
44274000224 Nut 72 mmNut 72 mm
-
45278003040 IBR ActuatorIBR Actuator
-
48293900007 Venturi BushingVenturi Bushing
-
49268000111 LH Fixing Plate Ass'yLH Fixing Plate Ass'y
-
50268000130 RH Fixing Plate Ass'yRH Fixing Plate Ass'y
-
52268000158 Reverse Gate Ass'yReverse Gate Ass'y
