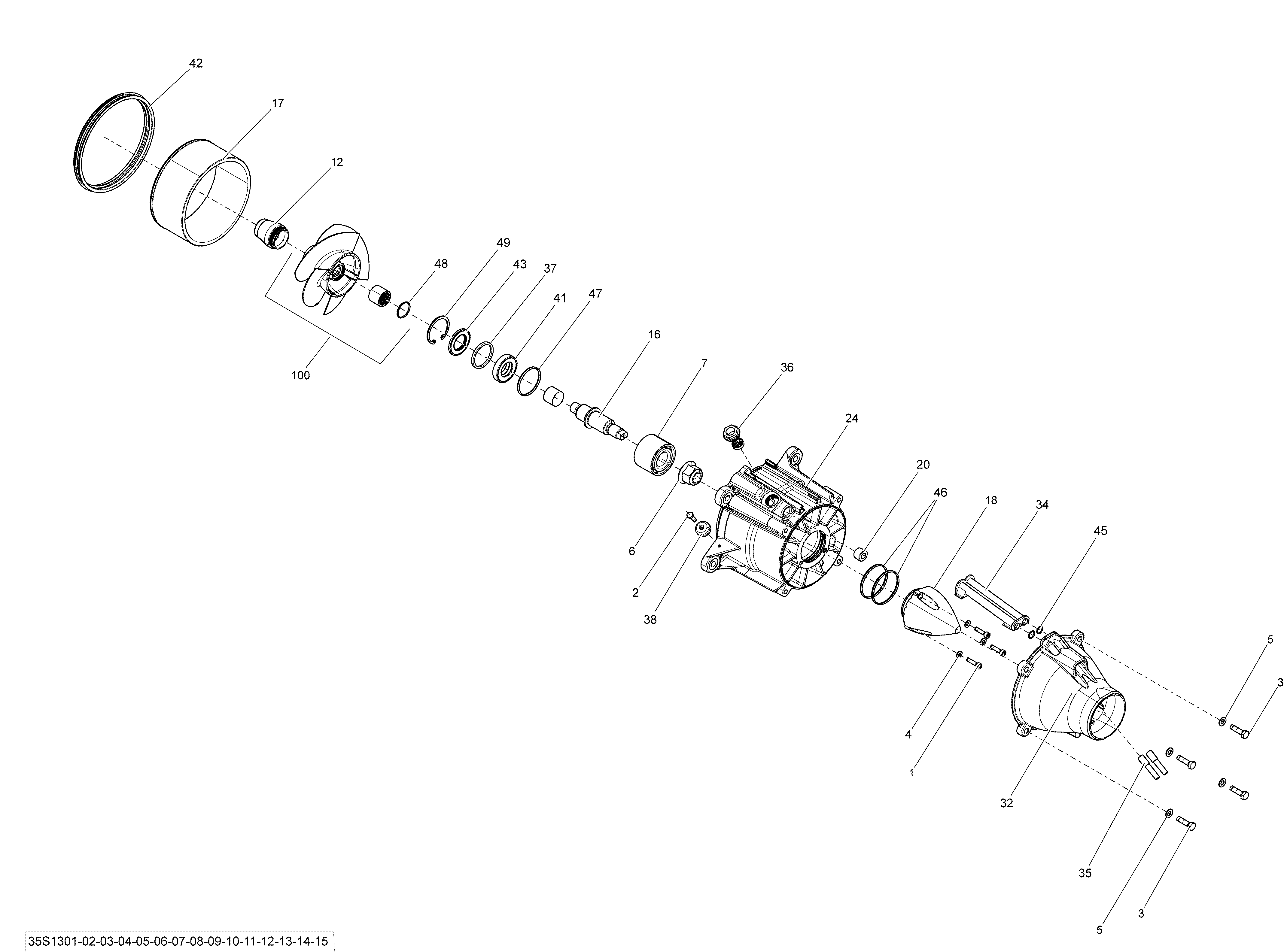

05- Pump для BRP WAKE 155 - 2013
-
№АртикулНазвание
-
1205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
2207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
3250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
4234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
7267000030 Angled BearingAngled Bearing
-
12267000206 Impeller Boot. GTI, GTS, WAKE STDImpeller Boot. GTI, GTS, WAKE STD
-
16267000388 Impeller ShaftImpeller Shaft
-
17267000419 Wear RingWear Ring
-
18267000428 Impeller CoverImpeller Cover
-
20267000469 Plug Plastic, BlackPlug Plastic, Black
-
24267000540 Impeller HousingImpeller Housing
-
32267000740 Venturi AnodisVenturi Anodis
-
34271000785 Water OutletWater Outlet
-
35271001133 Siphon TubeSiphon Tube
-
36267000282 PlugPlug
-
37271001393 SpacerSpacer
-
38271001813 Anode ZincAnode Zinc
-
41293200086 Oil SealOil Seal
-
42293200087 Neoprene SealNeoprene Seal
-
43293200089 Oil SealOil Seal
-
45293300013 O-RingO-Ring
-
46293300086 O-RingO-Ring
-
47293300090 O-RingO-Ring
-
48293300114 O-RingO-Ring
-
49293370038 CirclipCirclip
-
100267000532 Stainless Impeller Ass'y. GTI, GTS, WAKE STDStainless Impeller Ass'y. GTI, GTS, WAKE STD
