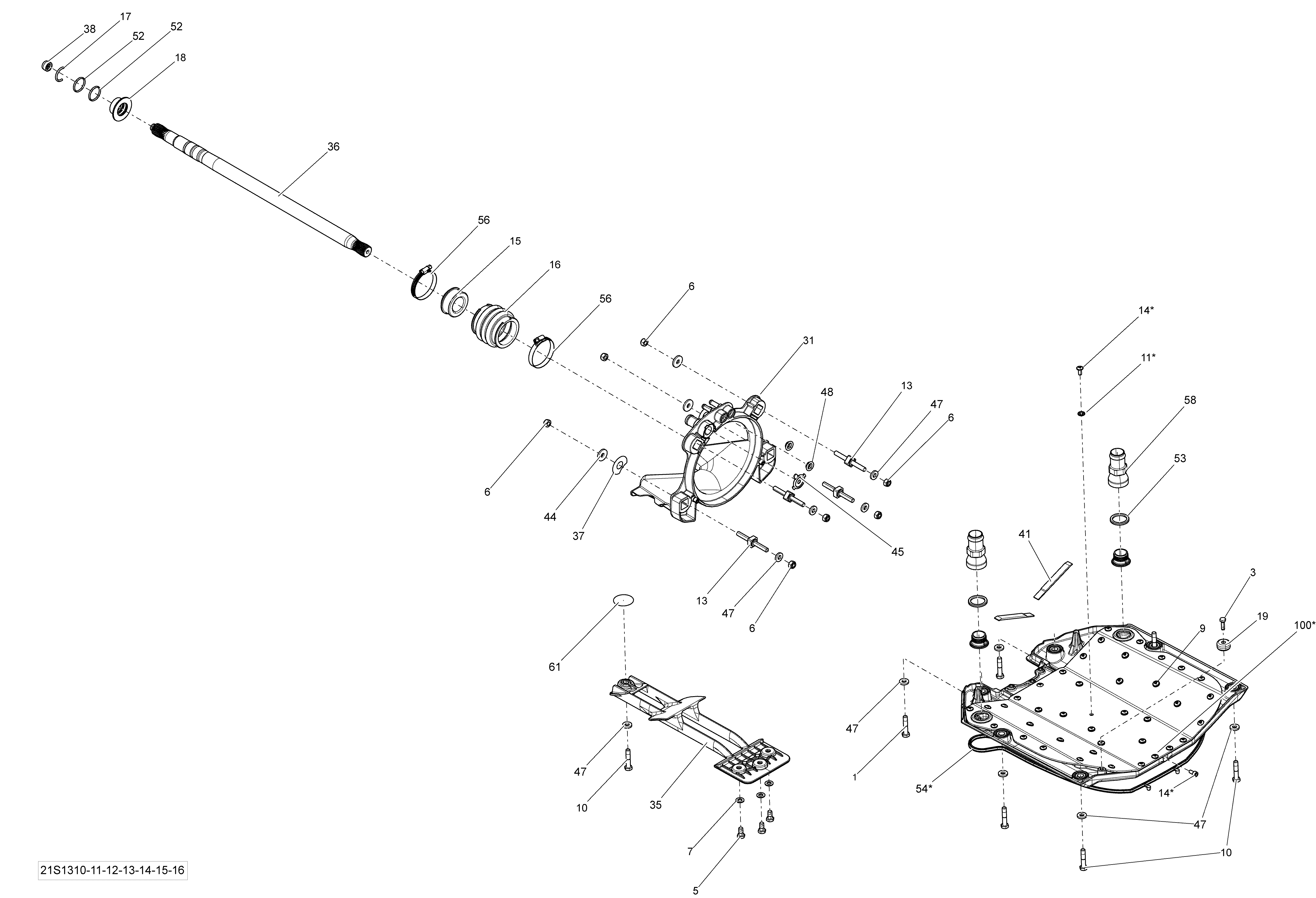

05- Propulsion для BRP WAKE 155 - 2013
-
№АртикулНазвание
-
1207186560 Hex. Screw M8 X 65Hex. Screw M8 X 65
-
3207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
5207381660 Hex. Cap Screw DIN.933A2 S.GripHex. Cap Screw DIN.933A2 S.Grip
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
9250000064 Torx Button Head Screw M6 X 14Torx Button Head Screw M6 X 14
-
10250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
11250200114 Sealing WasherSealing Washer
-
13250300046 Square StudSquare Stud
-
14250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
15272000177 Carbon RingCarbon Ring
-
16272000183 BellowsBellows
-
17271001575 C-ClipC-Clip
-
18272000176 Support RingSupport Ring
-
19271001813 Anode ZincAnode Zinc
-
31271001841 Pump SupportPump Support
-
35271001763 Pump GratePump Grate
-
36271001724 Drive ShaftDrive Shaft
-
37272000053 Shim, 0.3 mmShim, 0.3 mm
-
38272000173 Drive Shaft PlugDrive Shaft Plug
-
41293250087 Gasket, NeopreneGasket, Neoprene
-
43415080200 Hose, PolyurethaneHose, Polyurethane
-
44279000164 Flat WasherFlat Washer
-
45291001887 Reducer, YellowReducer, Yellow
-
47293050001 Flat WasherFlat Washer
-
48293250084 Watertight SealWatertight Seal
-
52293300044 O-RingO-Ring
-
53293300121 O-RingO-Ring
-
54293250235 SealSeal
-
56293650078 Norma ClampNorma Clamp
-
58293710111 Straight Plastic FittingStraight Plastic Fitting
-
61293830047 Protector DiskProtector Disk
-
100271001860 Riding Plate Ass'yRiding Plate Ass'y
