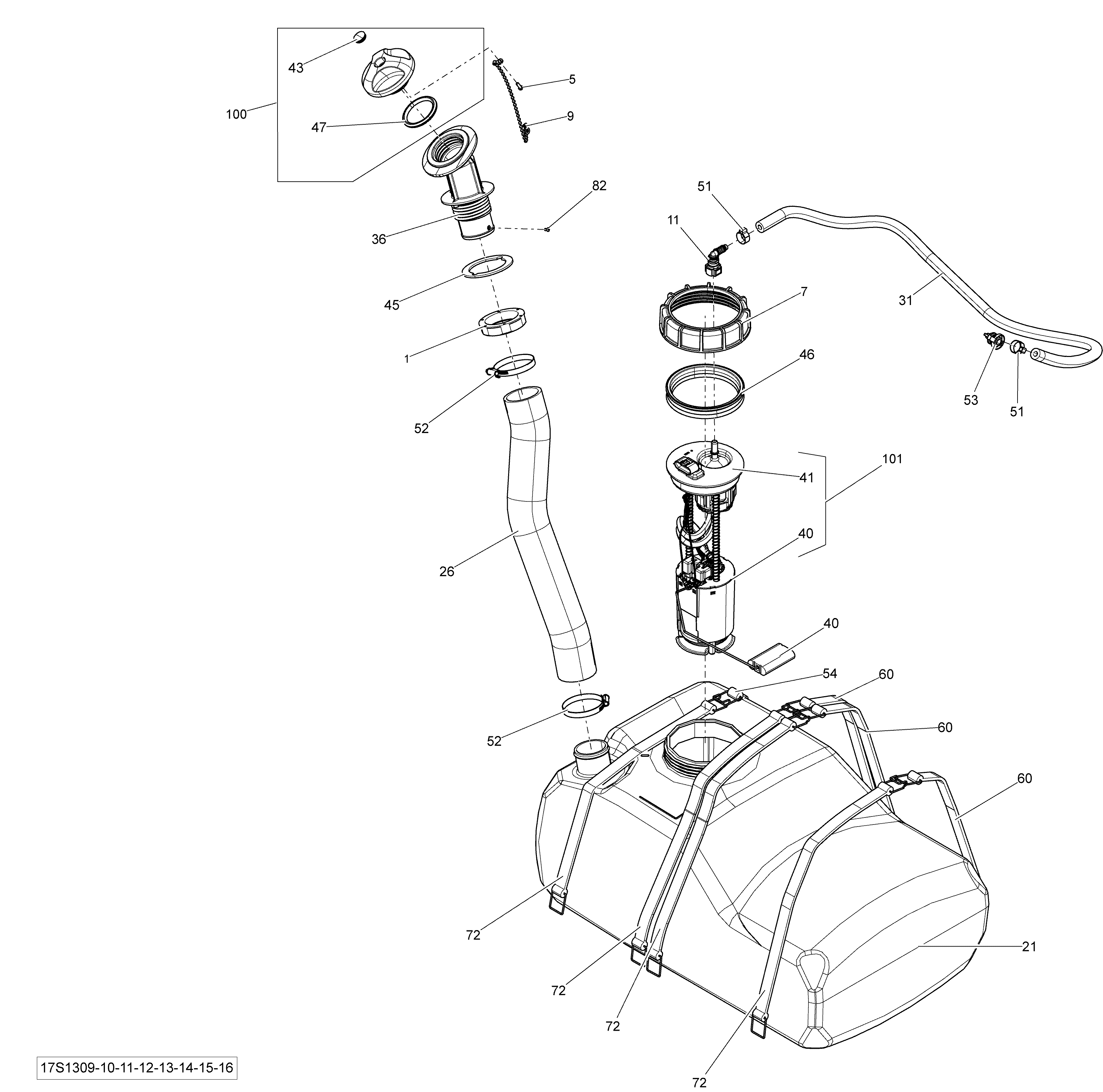

02- Fuel System для BRP RXP-X 260 & RS - 2013
-
№АртикулНазвание
-
1211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
5241140060 Screw K40 X 10Screw K40 X 10
-
7250100062 Special Nut M130Special Nut M130
-
9275500507 Fuel Cap ChainFuel Cap Chain
-
11275500700 Quick Attach 90°Quick Attach 90°
-
21275500754 Fuel Tank Ass'yFuel Tank Ass'y
-
26275500788 Filler Neck HoseFiller Neck Hose
-
31296000331 BoyauBoyau
-
36275500845 Filler NeckFiller Neck
-
40275500780 Sensor LeverSensor Lever
-
41270600108 Fuel FilterFuel Filter
-
43293000034 Snap Cap, BlackSnap Cap, Black
-
45293250029 GasketGasket
-
46293250173 GasketGasket
-
47293250285 GasketGasket
-
51293650053 Crimp ClampCrimp Clamp
-
52293650081 Norma ClampNorma Clamp
-
53293710105 Elbow Fitting 90°Elbow Fitting 90°
-
54293850087 Fuel Tank StrapFuel Tank Strap
-
60293850093 StrapStrap
-
72293850101 Fuel Tank StrapFuel Tank Strap
-
82390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
100275500833 Fuel Cap Ass'yFuel Cap Ass'y
-
101275500850 Fuel Pump Ass'yFuel Pump Ass'y
