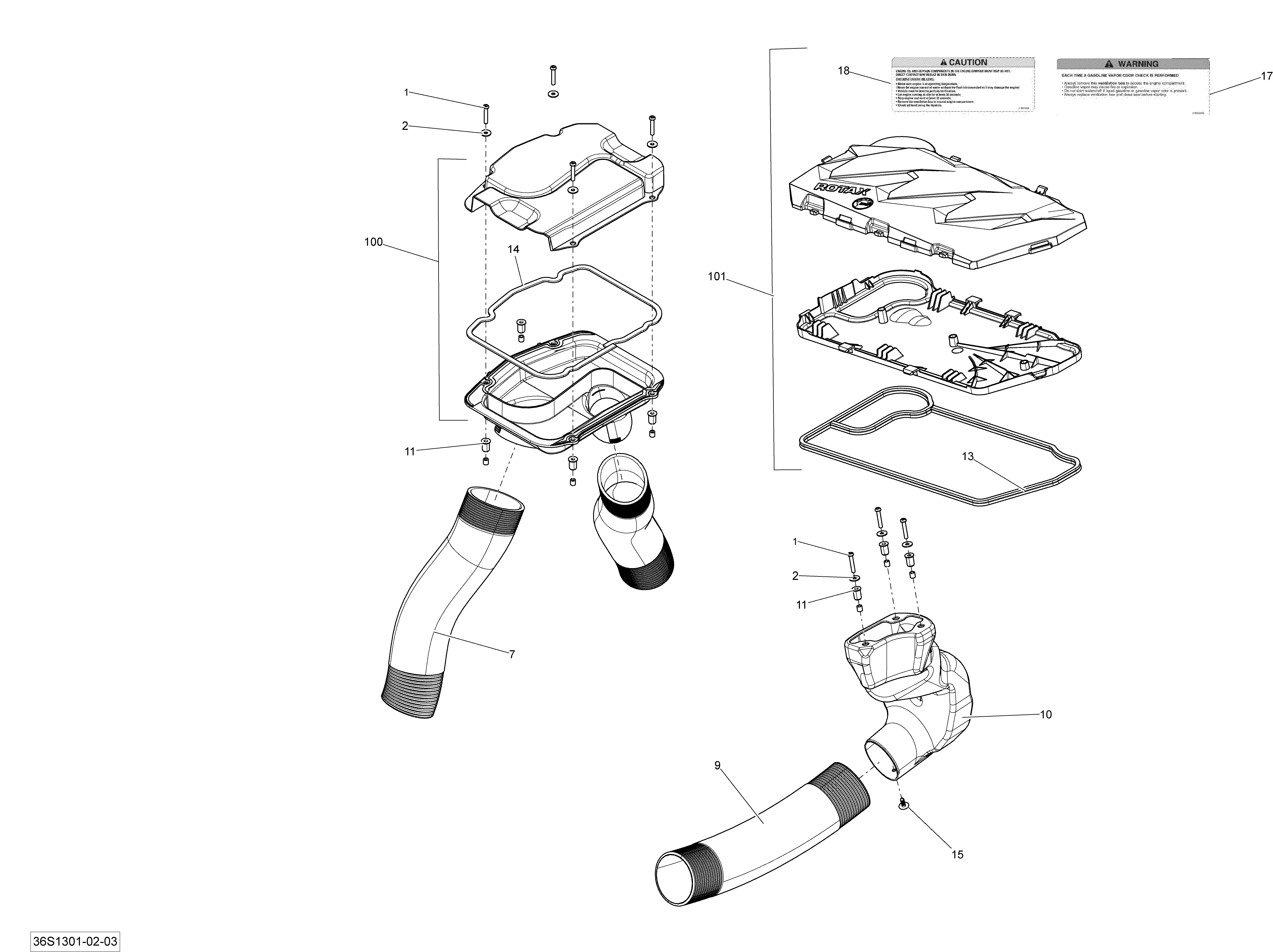

09- Ventilation для BRP GTX S 155 - 2013

‹-+›
  • №
    Артикул
    Название
  • 1
    205463560 Socket Head Screw M6 X 35
    Socket Head Screw M6 X 35
  • 2
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 7
    237000030 Vent Hose 3.5''
    Vent Hose 3.5''
  • 9
    237000031 Vent Hose 3.5''
    Vent Hose 3.5''
  • 10
    237000034 Rear Vent Duct
    Rear Vent Duct
  • 11
    250100150 Expansion Nut M6 X 1
    Expansion Nut M6 X 1
  • 13
    293250213 Gasket
    Gasket
  • 14
    293250214 Gasket
    Gasket
  • 15
    293730011 Dart, Black
    Dart, Black
  • 17
    219903090 Warning Decal, Gasoline Vapor
    Warning Decal, Gasoline Vapor
  • 18
    219903084 Caution Decal, Engine Oil
    Caution Decal, Engine Oil
  • 100
    237000036 Front Ventilation Box Ass'y
    Front Ventilation Box Ass'y
  • 101
    237000028 Rear Ventilation Box Ass'y
    Rear Ventilation Box Ass'y
