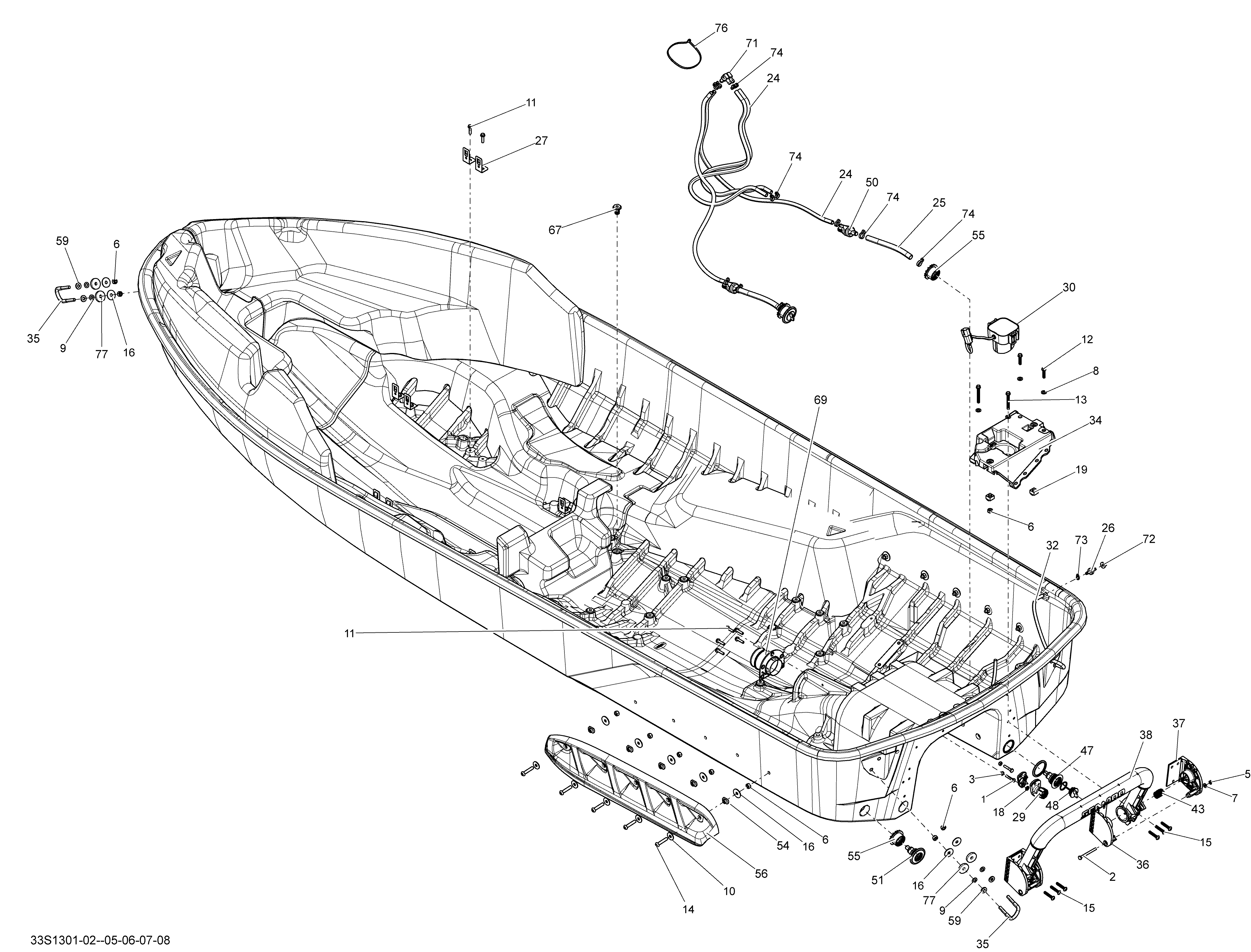

09- Hull для BRP GTX 215 - 2013

  • №
    Артикул
    Название
  • 1
    207063060 Hex. Screw M6 X 30
    Hex. Screw M6 X 30
  • 2
    207066560 Hex. Screw M6 x 65
    Hex. Screw M6 x 65
  • 3
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 5
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 6
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass
  • 7
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 8
    234080600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 9
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 9
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 10
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 11
    243162560 Hex. Flanged Screw M6.81 X 25, Plastite
    Hex. Flanged Screw M6.81 X 25, Plastite
  • 12
    243163060 Flanged Hex. Screw M6.81 X 30
    Flanged Hex. Screw M6.81 X 30
  • 13
    243165560 Flanged Hex. Screw M6.81 X 55
    Flanged Hex. Screw M6.81 X 55
  • 14
    250000452 Torx Screw M8 X 40, Stainless
    Torx Screw M8 X 40, Stainless
  • 15
    250000468 Torx Screw
    Torx Screw
  • 16
    250200011 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 18
    250200114 Sealing Washer
    Sealing Washer
  • 19
    269501943 Elastic Nut Housing M8
    Elastic Nut Housing M8
  • 24
    415080700 Polyurethane Hose, 8 mm
    Polyurethane Hose, 8 mm
  • 25
    275000008 Hose 12 mm, Meter
    Hose 12 mm, Meter
  • 26
    275500499 Check Valve
    Check Valve
  • 27
    275500743 Strap Clip 90°
    Strap Clip 90°
  • 29
    277001881 Cable Adaptor Ass'y
    Cable Adaptor Ass'y
  • 30
    278002954 Depth Sensor
    Depth Sensor
  • 32
    275500446 Hose 6 mm
    Hose 6 mm
  • 34
    278002343 Battery Base Ass'y
    Battery Base Ass'y
  • 35
    292000933 U-Clamp
    U-Clamp
  • 36
    292001509 A Section Support
    A Section Support
  • 37
    292001510 B Section Support
    B Section Support
  • 38
    292001204 Overmolded Bar
    Overmolded Bar
  • 43
    292001259 Spring
    Spring
  • 47
    292001315 Drain Neck Ass'y
    Drain Neck Ass'y
  • 48
    292001352 Plug Drain Ass'y
    Plug Drain Ass'y
  • 50
    292001310 Bailer Ass'y
    Bailer Ass'y
  • 51
    292001317 Drain Neck Ass'y. Plug 292001352
    Drain Neck Ass'y. Plug 292001352
  • 54
    292001349 Spacer Sponson
    Spacer Sponson
  • 55
    292001371 Bushing
    Bushing
  • 56
    292001513 LH Sponson
    LH Sponson
  • 56
    292001514 RH Sponson
    RH Sponson
  • 59
    293050001 Flat Washer
    Flat Washer
  • 67
    293450290 Insert Capuchon M8
    Insert Capuchon M8
  • 69
    293450306 Hull Insert
    Hull Insert
  • 71
    293710117 Elbow Fitting 90°
    Elbow Fitting 90°
  • 72
    293720029 Grommet
    Grommet
  • 73
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 74
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 76
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 77
    293830037 Rubber Washer
    Rubber Washer
  • 80
    211200006 Flat Washer, Stainless
    Flat Washer, Stainless
