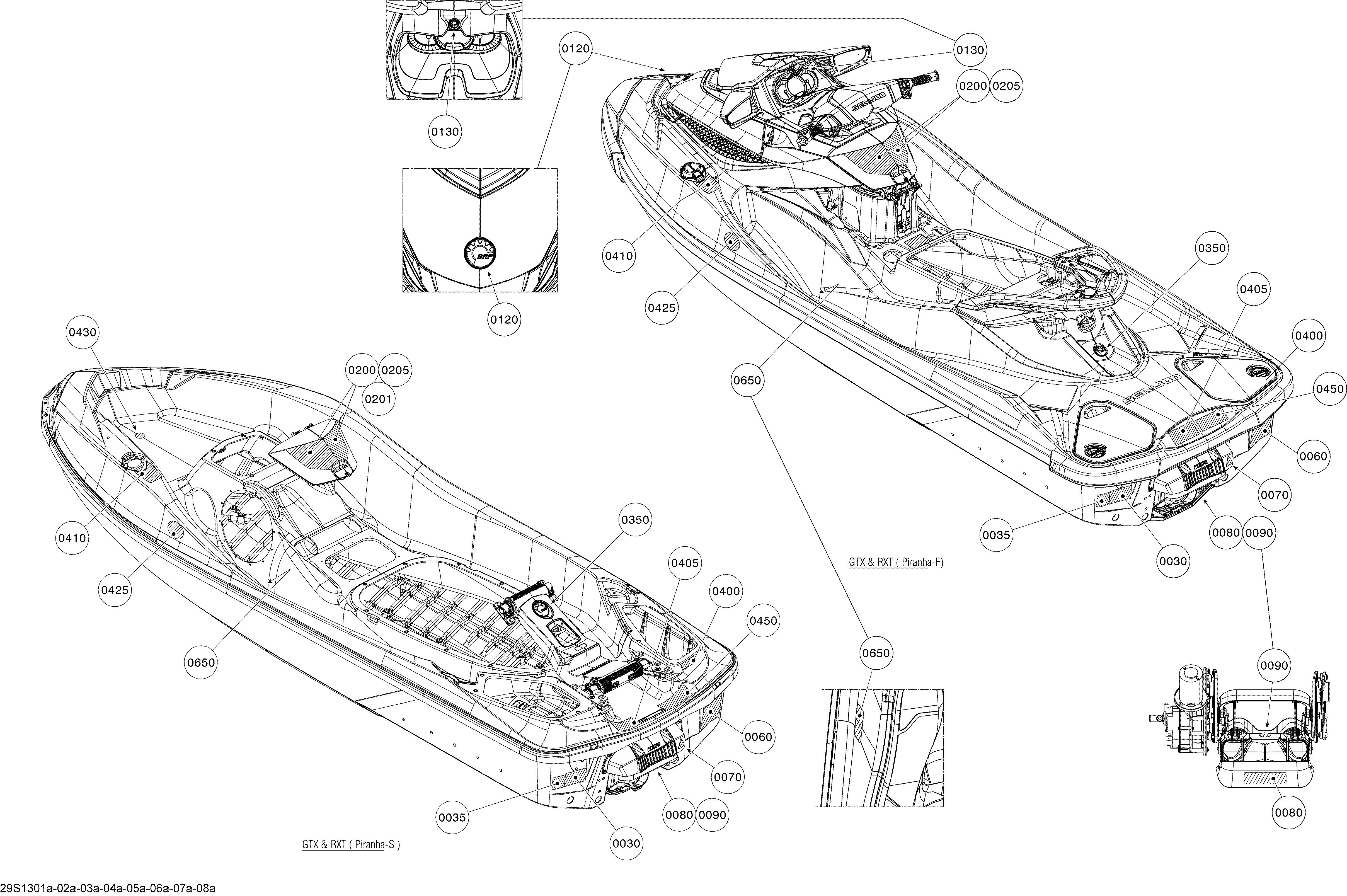

09- Decals для BRP GTX 155 - 2013
‹-+›
-
№АртикулНазвание
-
0030219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
0070219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
0080219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
0090219903066 Decal Feet, Risk Of InjuryDecal Feet, Risk Of Injury
-
0120219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
0130219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
0200219903316 LH Warning Decal, PrincipalLH Warning Decal, Principal
-
0205219903198 RH Warning Decal, PrincipalRH Warning Decal, Principal
-
0350219902468 Logo BRP, 48 mmLogo BRP, 48 mm
-
0400219903082 Warning Decal, BatteryWarning Decal, Battery
-
0405219903510 Decal, ExemptionDecal, Exemption
-
0410219903495 Warning Decal, Gasoline/OctaneWarning Decal, Gasoline/Octane
-
0425219902679 Decal, Emission ControlDecal, Emission Control
-
0450219904252 Warning LabelWarning Label
-
0650219904016 Comformity Decal, CEComformity Decal, CE
