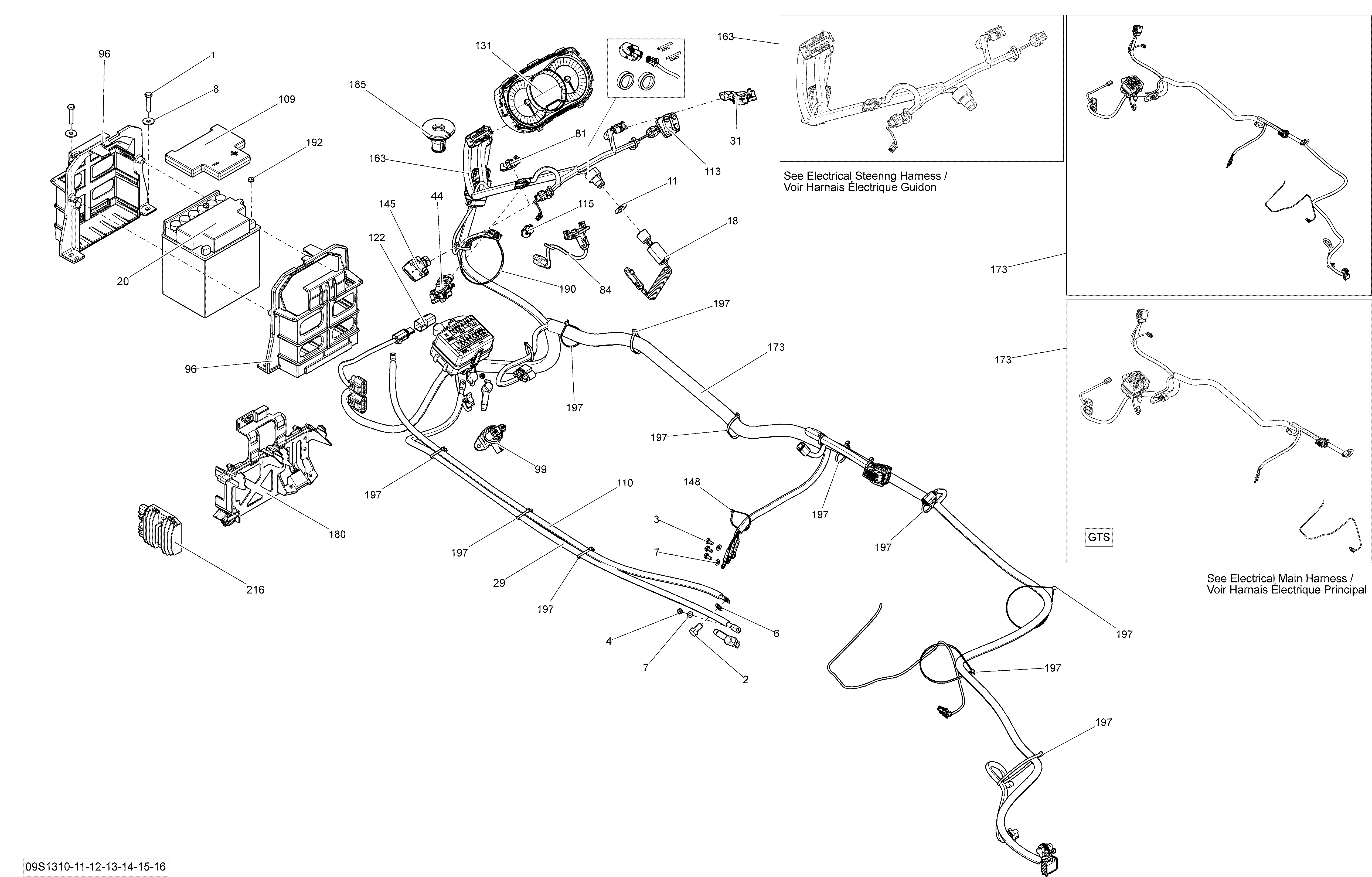

10- Electrical System для BRP GTI 130 - 2013
-
№АртикулНазвание
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
1207184060 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
6234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
11278000508 Safety Switch NutSafety Switch Nut
-
18278002483 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
18278002484 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
-
20278001882 Battery, 30 AmperesBattery, 30 Amperes
-
29278002279 Starter CableStarter Cable
-
31278002283 RH Throttle SensorRH Throttle Sensor
-
44278002284 LH Throttle SensorLH Throttle Sensor
-
81278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
84278002908 OTAS Sensor Ass'yOTAS Sensor Ass'y
-
96278002339 Battery SupportBattery Support
-
99278002347 Starter RelayStarter Relay
-
109278002493 Foam PadFoam Pad
-
110278002501 Ground CableGround Cable
-
113278002602 SwitchSwitch
-
115295501137 Start/Stop Switch KitStart/Stop Switch Kit
-
122278002704 Diagnostic ConnectorDiagnostic Connector
-
131278002718 Cluster LCDCluster LCD
-
145278002768 SwitchSwitch
-
163278002952 Wiring Harness Ass'y. Includes 115Wiring Harness Ass'y. Includes 115
-
173278002943 Wiring HarnessWiring Harness
-
180278002958 Support ModuleSupport Module
-
185293720092 Cable GrommetCable Grommet
-
190293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
192250000282 Battery Bolt KitBattery Bolt Kit
-
197414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
197293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
216710001103 Voltage RegulatorVoltage Regulator
