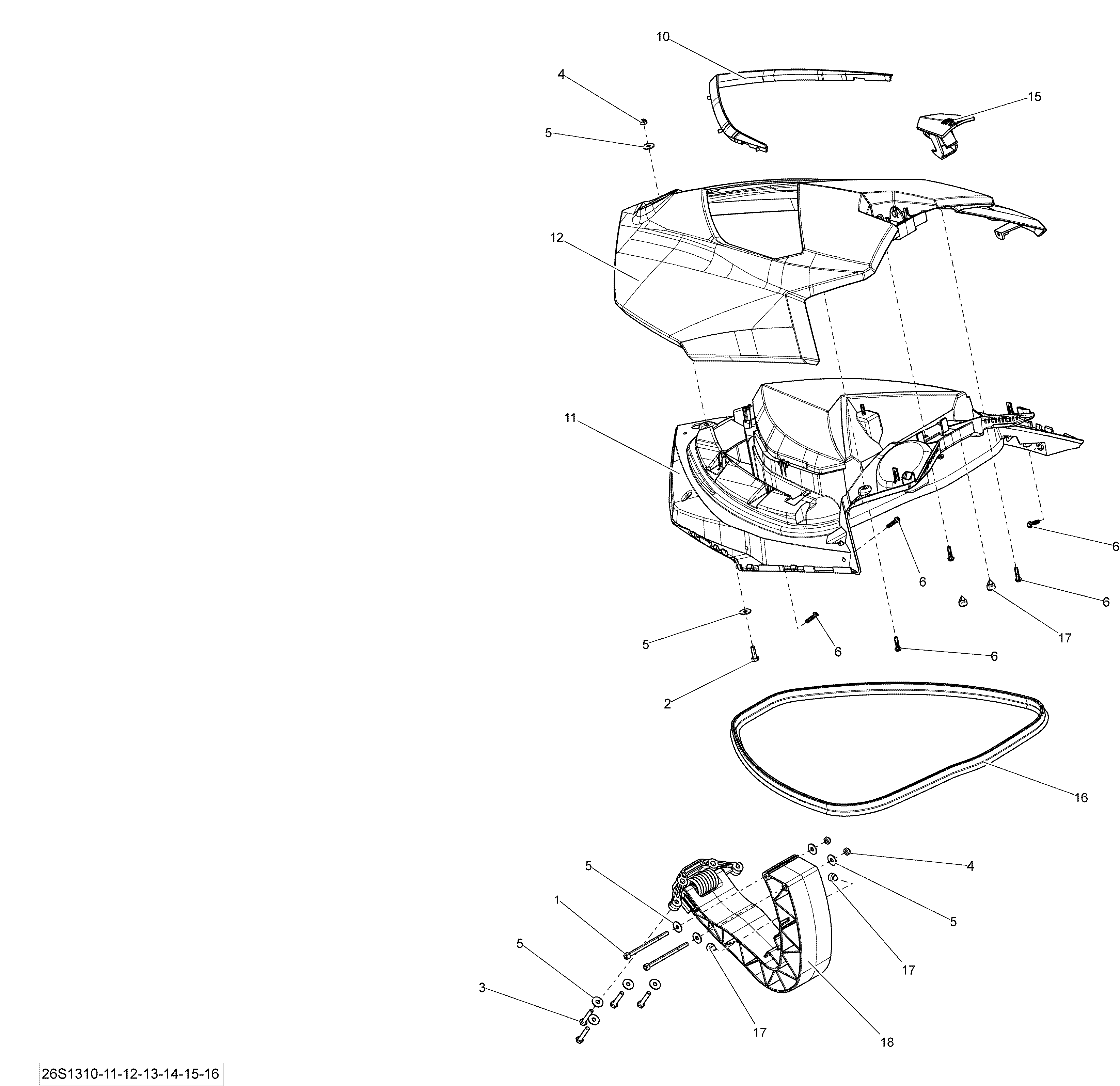

09- Front Cover для BRP GTI 130 - 2013
-
№АртикулНазвание
-
1205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
2207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
3207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
10269501859 Front Moulding. GTI STD BlackFront Moulding. GTI STD Black
-
10269501859 Front Moulding. GTI STD Lucky GreenFront Moulding. GTI STD Lucky Green
-
11269501897 Lower Storage CoverLower Storage Cover
-
12269501933 Storage Cover. GTI STD BlackStorage Cover. GTI STD Black
-
12269501951 Storage Cover. GTI STD Lucky GreenStorage Cover. GTI STD Lucky Green
-
15269700142 Latch LeverLatch Lever
-
16293250047 Neoprene SealNeoprene Seal
-
17293830005 Rubber PlugRubber Plug
-
18269501944 Hinge Ass'yHinge Ass'y
