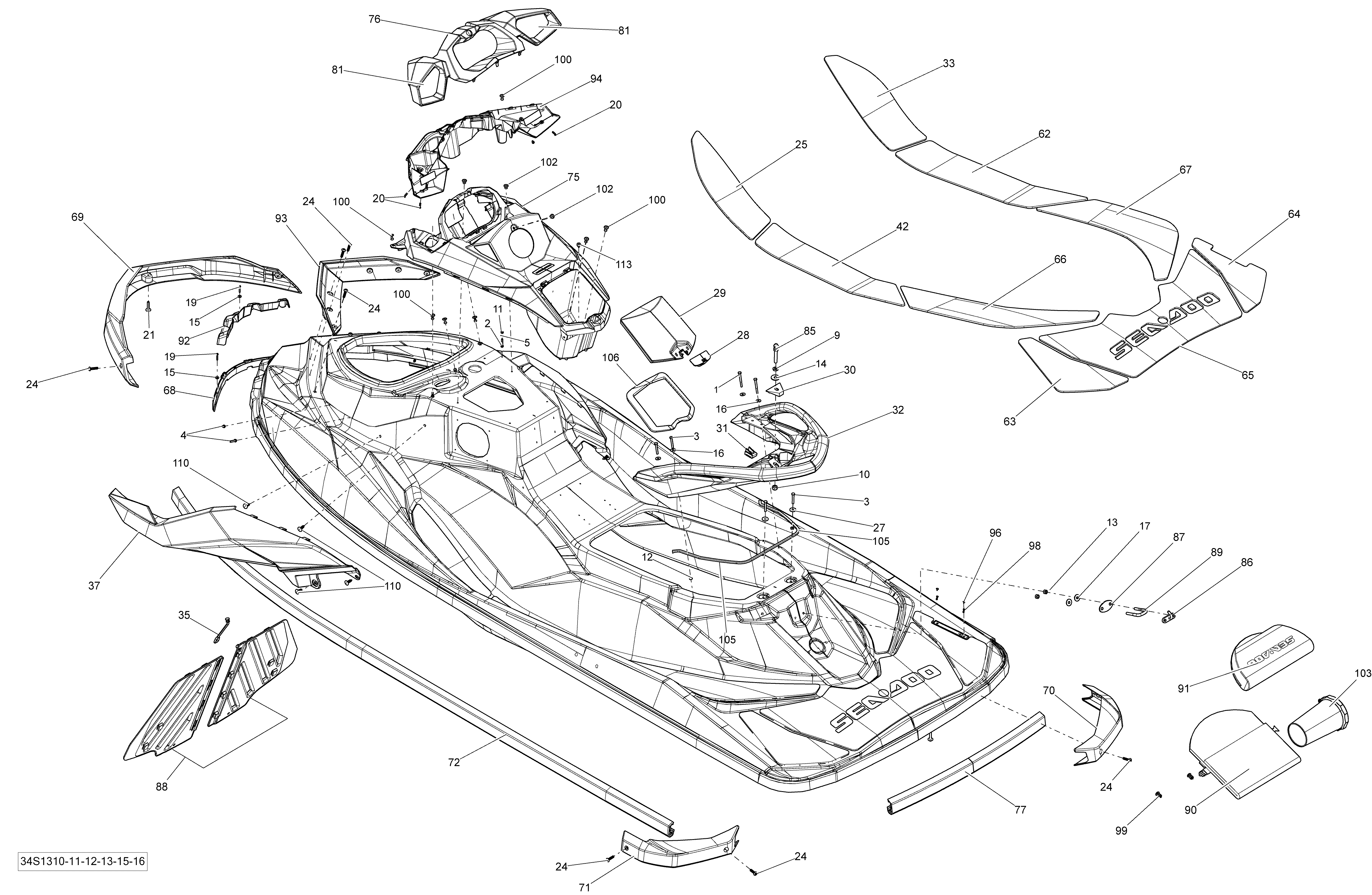

09- Body для BRP GTI 130 - 2013
-
№АртикулНазвание
-
1207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
2207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
3207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
5211200035 Flat WasherFlat Washer
-
9232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
10232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
11232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
12232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
13232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
14234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
15234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
16234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
17234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
20250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
21250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
24250000626 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
25291003573 LH Front CarpetLH Front Carpet
-
27250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
28264000091 Latch, BlackLatch, Black
-
29264000059 Glovebox Access DoorGlovebox Access Door
-
30269002125 Seat Stud SpacerSeat Stud Spacer
-
31269002126 Seat Stud SupportSeat Stud Support
-
32291004625 Black Rear HandleBlack Rear Handle
-
33291003574 RH Front CarpetRH Front Carpet
-
35269501743 StrapStrap
-
37269501812 RH Cosmetic Panel, White. GTI STD, GTI SE, GTSRH Cosmetic Panel, White. GTI STD, GTI SE, GTS
-
37269501813 LH Cosmetic Panel, White. GTI STD, GTI SE, GTSLH Cosmetic Panel, White. GTI STD, GTI SE, GTS
-
42291003060 LH Front Center CarpetLH Front Center Carpet
-
62291003576 RH Front Center Carpet. GTI 155 LTD Antracite, GTRRH Front Center Carpet. GTI 155 LTD Antracite, GTR
-
62291003061 RH Front Center CarpetRH Front Center Carpet
-
63291003062 LH Rear CarpetLH Rear Carpet
-
64291003063 RH Rear CarpetRH Rear Carpet
-
65291003096 Swim Platform CarpetSwim Platform Carpet
-
65291003057 Swim Platform Carpet. GTI 130 White, GTSSwim Platform Carpet. GTI 130 White, GTS
-
66291003329 LH Rear Center CarpetLH Rear Center Carpet
-
67291003330 RH Rear Center CarpetRH Rear Center Carpet
-
68291003277 Deck NoseDeck Nose
-
69291003064 Front BumperFront Bumper
-
70291003065 RH Bumper CornerRH Bumper Corner
-
71291003066 LH Bumper CornerLH Bumper Corner
-
72291003872 Lateral BumperLateral Bumper
-
75291003071 ConsoleConsole
-
76291003072 Info Gauge BezelInfo Gauge Bezel
-
77291003872 Lateral BumperLateral Bumper
-
81291003090 RH MirrorRH Mirror
-
81291003091 LH MirrorLH Mirror
-
85291003245 Seat StudSeat Stud
-
87291001386 Finition Plate, Black. Except WAKEFinition Plate, Black. Except WAKE
-
88291003391 Divider Ass'yDivider Ass'y
-
89292000933 U-Clamp. Except WAKEU-Clamp. Except WAKE
-
90269501744 Drybag, 10 LDrybag, 10 L
-
91269501318 Anchor SandbagAnchor Sandbag
-
92291003704 Bumper SupportBumper Support
-
93291003738 Body DeflectorBody Deflector
-
94291003741 Mirror SupportMirror Support
-
96293000014 Snap Cap, BlackSnap Cap, Black
-
98293150016 Rivet 1/8''Rivet 1/8''
-
99293150089 Tuflok Plastic Rivet. EuropeTuflok Plastic Rivet. Europe
-
100293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
102293150186 Pop Rivet 3/16Pop Rivet 3/16
-
103295100330 Safety KitSafety Kit
-
105293250218 GasketGasket
-
106293250236 GasketGasket
-
110293730006 Dart, BlackDart, Black
-
113293830005 Rubber PlugRubber Plug
