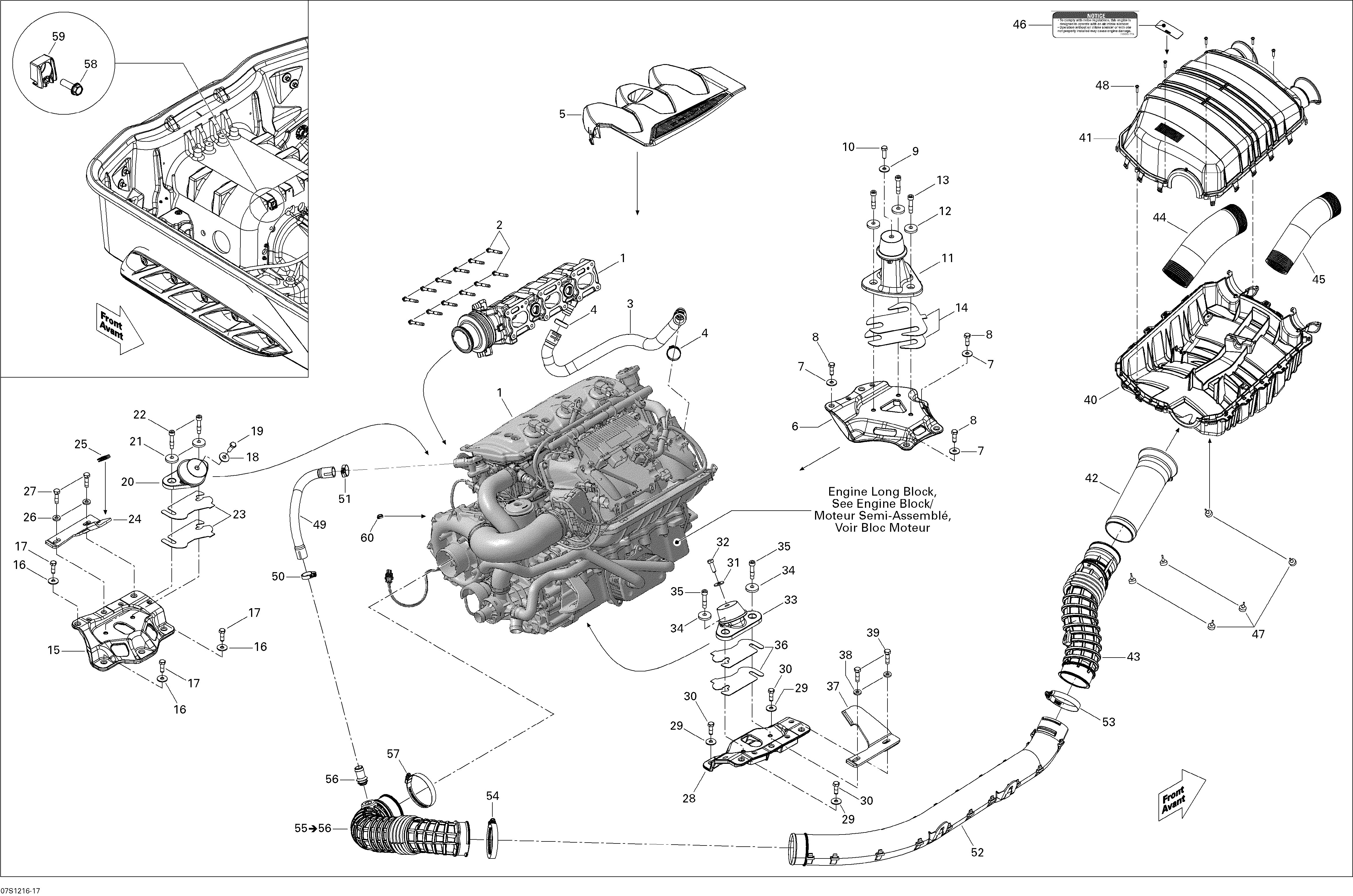

01- Engine And Air Intake Silencer для BRP WAKE PRO 215 - 2012

  • №
    Артикул
    Название
  • 1
    274001434 Exhaust Manifold
    Exhaust Manifold
  • 2
    420641198 Flanged Torx Screw M6 X 45
    Flanged Torx Screw M6 X 45
  • 3
    420822174 Formed Hose
    Formed Hose
  • 4
    293650217 Crimp Clamp
    Crimp Clamp
  • 5
    270000804 Engine Cover
    Engine Cover
  • 6
    270000767 Spacer
    Spacer
  • 7
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 8
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 9
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 10
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 11
    270000886 Rubber Mount
    Rubber Mount
  • 12
    250200018 Cone Washer
    Cone Washer
  • 13
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 14
    270000770 Shim 1.3 mm
    Shim 1.3 mm
  • 15
    270000763 Spacer
    Spacer
  • 16
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 17
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 18
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 19
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 20
    270000882 Rubber Mount
    Rubber Mount
  • 21
    250200018 Cone Washer
    Cone Washer
  • 22
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 23
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 24
    270000796 LH Stopper
    LH Stopper
  • 25
    204610371 Trim, Black
    Trim, Black
  • 26
    293050001 Flat Washer
    Flat Washer
  • 27
    250000526 Hex. Screw M8 X 30, Scotch Grip
    Hex. Screw M8 X 30, Scotch Grip
  • 28
    270000766 Spacer
    Spacer
  • 29
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 30
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 31
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 32
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 33
    270000882 Rubber Mount
    Rubber Mount
  • 34
    250200018 Cone Washer
    Cone Washer
  • 35
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 36
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 37
    270000799 RH Stopper
    RH Stopper
  • 38
    293050001 Flat Washer
    Flat Washer
  • 39
    250000526 Hex. Screw M8 X 30, Scotch Grip
    Hex. Screw M8 X 30, Scotch Grip
  • 40
    273000289 Air Silencer Low
    Air Silencer Low
  • 41
    273000288 Air Silencer Upper
    Air Silencer Upper
  • 42
    273000301 Intake Hose
    Intake Hose
  • 43
    273000322 Hose Connector
    Hose Connector
  • 44
    273000290 Air Silencer Hose
    Air Silencer Hose
  • 45
    273000299 Air Silencer Tube
    Air Silencer Tube
  • 46
    219903177 Notice Decal, Air Silencer
    Notice Decal, Air Silencer
  • 47
    708000759 Rubber Stopper
    Rubber Stopper
  • 48
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 49
    270000864 Formed Hose
    Formed Hose
  • 50
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 51
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 52
    273000233 Hose Intake
    Hose Intake
  • 53
    293650179 Tridon Clamp
    Tridon Clamp
  • 54
    293650179 Tridon Clamp
    Tridon Clamp
  • 55
    273000317 Rear Hose Intake. Includes 55 to 56
    Rear Hose Intake. Includes 55 to 56
  • 56
    273000234 Breather
    Breather
  • 57
    293650179 Tridon Clamp
    Tridon Clamp
  • 58
    270000854 Strap Anchor
    Strap Anchor
  • 59
    243162060 Hex. Flanged Screw M6.81 x 20
    Hex. Flanged Screw M6.81 x 20
  • 60
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
