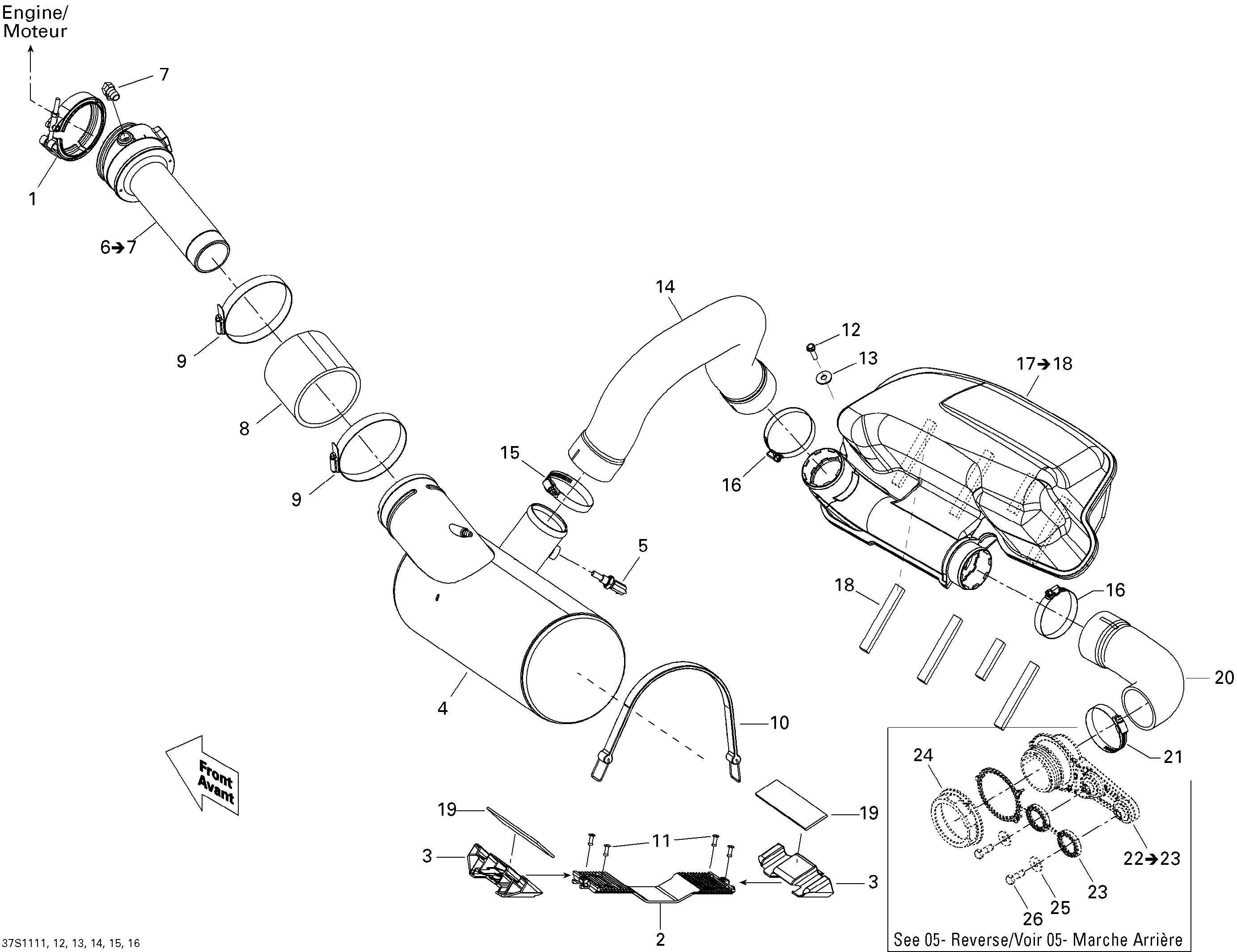

01- Exhaust System для BRP WAKE 155 (35CR, 35CS) - 2012
-
№АртикулНазвание
-
1274001417 Exhaust ClampExhaust Clamp
-
2274001357 Exhaust SupportExhaust Support
-
3274001358 StopperStopper
-
4274001384 MufflerMuffler
-
5278001016 Temperature SensorTemperature Sensor
-
6274001354 Head Pipe Ass'y. Includes 6 to 7Head Pipe Ass'y. Includes 6 to 7
-
7293700023 Elbow Fitting 90°Elbow Fitting 90°
-
8274001348 HoseHose
-
9293650202 Gear ClampGear Clamp
-
10293850093 StrapStrap
-
11293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
12243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14274001446 Formed Exhaust HoseFormed Exhaust Hose
-
15293650179 Tridon Gear ClampTridon Gear Clamp
-
16293650179 Tridon Gear ClampTridon Gear Clamp
-
17274001366 Resonator. Includes 17 to 18Resonator. Includes 17 to 18
-
18293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
19293830126 Rubber PadRubber Pad
-
20274001423 Exhaust Hose, RearExhaust Hose, Rear
-
21293650179 Tridon Gear ClampTridon Gear Clamp
