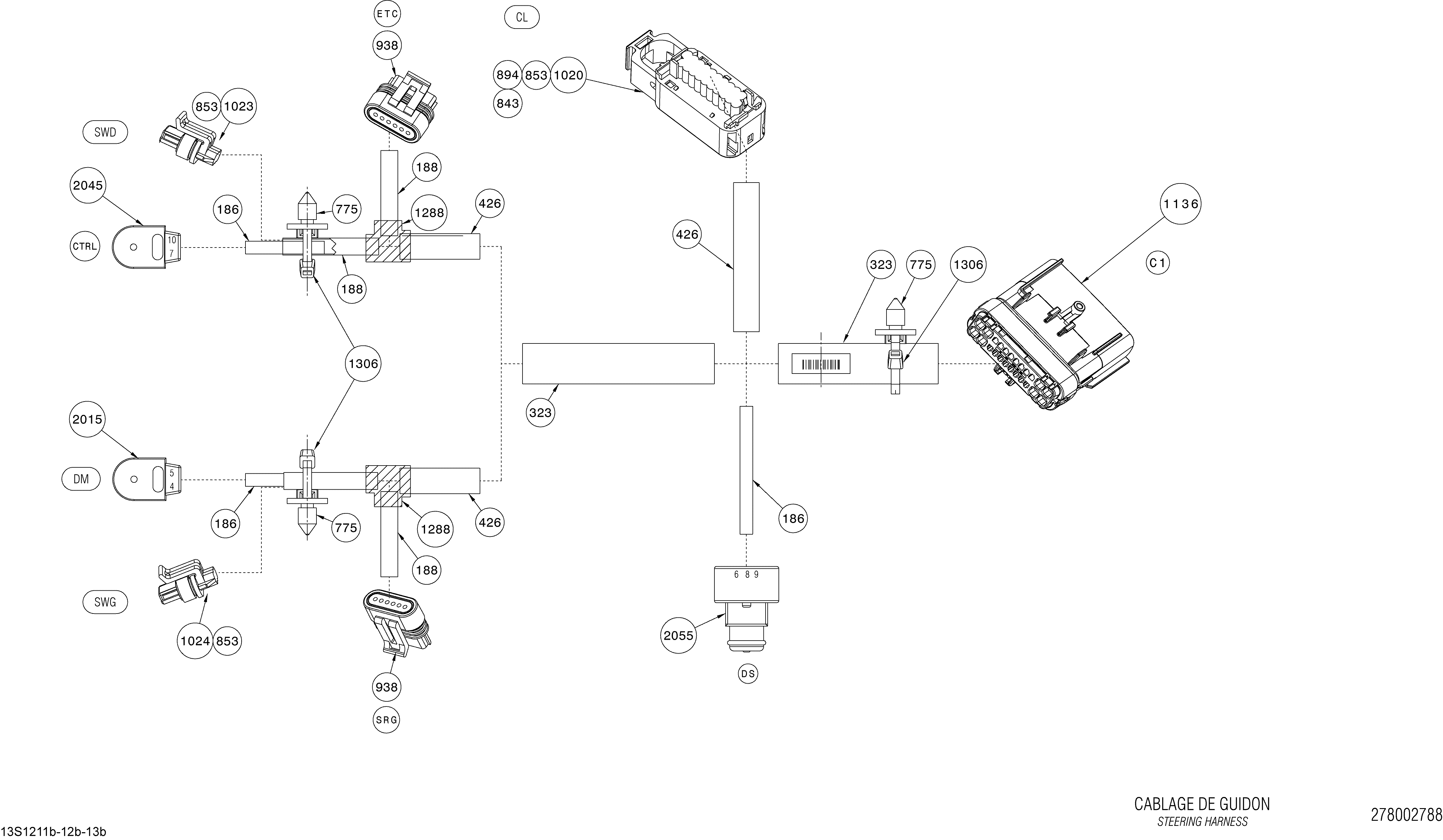

10- Electrical Harness Steering для BRP RXT 260 (IS) - 2012
‹-+›
-
№АртикулНазвание
-
1278002788 Steering Handle Harness. Includes 1 to 2055Steering Handle Harness. Includes 1 to 2055
-
775293730040 Mount DartMount Dart
-
827710001119 Female TerminalFemale Terminal
-
843710001153 Seal WireSeal Wire
-
853710001163 Wire SealWire Seal
-
854710001164 Female TerminalFemale Terminal
-
894710001225 CapCap
-
938278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
1020278002385 Male Terminal Housing, 20 CircuitsMale Terminal Housing, 20 Circuits
-
1023278002386 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1024278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
1136278002452 HousingHousing
-
1138278002454 Male TerminalMale Terminal
-
1140278002456 Male TerminalMale Terminal
-
2015295501137 Start/Stop Switch KitStart/Stop Switch Kit
-
2045278002349 Control SwitchControl Switch
-
2055278002773 Safety SwitchSafety Switch
