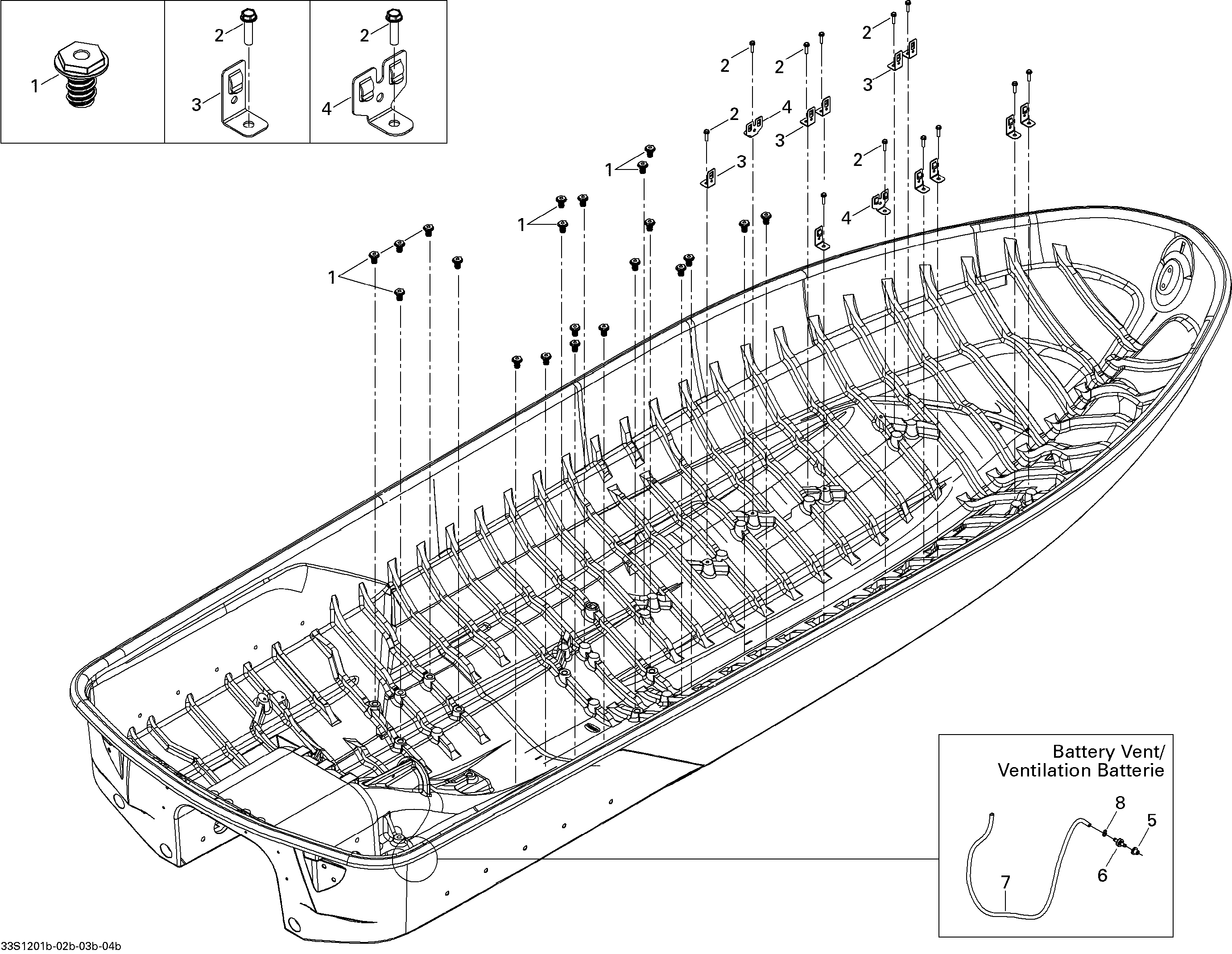

09- Hull 2 для BRP GTX 215 (42CS) - 2012
-
№АртикулНазвание
-
1293450290 Insert Capuchon M8Insert Capuchon M8
-
2243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
3275500743 Strap Clip 90°Strap Clip 90°
-
4275500798 Double Strap Clip 90°Double Strap Clip 90°
-
5293720029 GrommetGrommet
-
6275500499 Check ValveCheck Valve
-
7275500446 Hose 6 mmHose 6 mm
-
8293750001 Tie-Rap 94 mmTie-Rap 94 mm
